iFlightPlanner



...

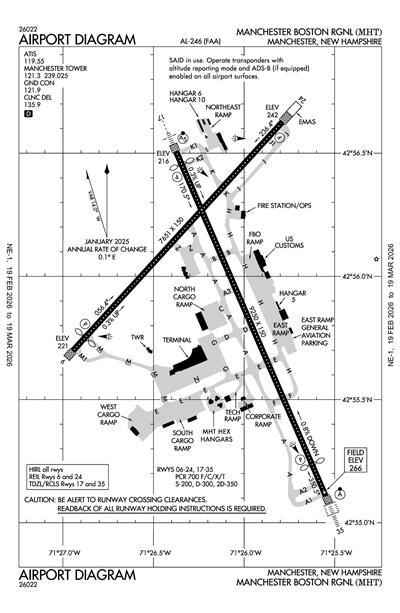

MANCHESTER BOSTON RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMHT
ICAO KMHTIATA MHTLocal MHT
MANCHESTER BOSTON RGNL
PublicPUB

3 miles S of MANCHESTER, NH, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 55' 58"N 71° 26' 09"W
Elevation
266' MSL
Pattern Alt
1266' MSL
Mag Variation
14°W
Declination
15°W
Fuel
JET A, 100LL
FSS
BANGOR (BGR)
Sectional
NEW YORK
ARTCC
BOSTON (ZBW)
Data Effective
2/19/26-3/19/26
KMHT IFR
8:53 PM EST
Light Freezing Rain and Mist
Overcast 1,200'
Broken 600'
4sm
28°F
26°F
30.25"Hg
Calm
AO2 PLE19 SLP264 P0006 I1003 T10221033
METAR KMHT 040153Z 00000KT 4SM -FZRA BR BKN006 OVC012 M02/M03 A3025 RMK AO2 PLE19 SLP264 P0006 I1003 T10221033
+ Add Your Business

KMHT FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 119.55
(603) 626-6902
ASOS 119.55
(603) 626-6902

Common

UNICOM 122.95

Clearance

Clearance Delivery 135.9

Ground

MANCHESTER GROUND 121.9

Tower

MANCHESTER TOWER 121.3

Approach

BOSTON APPROACH 124.9

Departure

BOSTON DEPARTURE 124.9

Emergency

Emergency 121.5

Other

CLASS C 124.9
MANCHESTER/CONCORD AREA
CLASS C 125.05
NH SEACOAST AREA
CLASS C 134.75
NH LAKES REGION

Terminal Area Forecast

KMHT
Tue, 3/3 7:37 PM EST
Tue, 3/3 8:00 PM EST - Wed, 3/4 7:00 PM EST
MVFR
8:00 PM EST - 10:00 PM EST
Light Freezing Rain and Snow and Mist
Overcast 4,000'
Broken 1,300'
5sm
Calm
IFR
10:00 PM EST - 1:00 AM EST
Light Freezing Rain and Snow and Mist
Overcast 500'
1sm
Calm
LIFR
1:00 AM EST - 5:00 AM EST
Light Drizzle and Snow and Mist
Overcast 400'
1.5sm
310° 2kts
LIFR
5:00 AM EST - 7:00 AM EST
Mist
Overcast 300'
2sm
350° 2kts
VFR
7:00 AM EST - 7:00 PM EST
Scattered 2,000'
6sm
VRB° 3kts
TAF KMHT 040037Z 0401/0424 00000KT 5SM -FZRASN BR BKN013 OVC040
   FM040300 00000KT 1SM -FZRASN BR OVC005
   FM040600 31002KT 1 1/2SM -DZSN BR OVC004
   FM041000 35002KT 2SM BR OVC003
   FM041200 VRB03KT P6SM SCT020
KMHT
EffectiveExpiresCategoryNOTAM
Domestic
2/26/26
1300Z
2/26/26
1700Z
!MHT 02/520 MHT COM REMOTE TRANS/REC 124.9, 127.35, 134.75, 243.0, 254.25, 269.075 U/S 2602261300-2602261700
2/25/26
0442Z
2/26/26
0442Z
!MHT 02/525 MHT APRON ALL FICON PATCHY ICE AND PATCHY 2IN DRY SN OVER COMPACTED SN BA MEDIUM TO POOR OBS AT 2602250442. 2602250442-2602260442
2/25/26
0440Z
2/26/26
0440Z
!MHT 02/524 MHT TWY ALL FICON PATCHY ICE AND PATCHY COMPACTED SN BA MEDIUM OBS AT 2602250440. 2602250440-2602260440
2/25/26
0439Z
2/26/26
0439Z
Runway!MHT 02/523 MHT RWY 24 FICON 25 PCT COMPACTED SN OBS AT 2602250439. 2602250439-2602260439
2/25/26
0437Z
2/26/26
0437Z
Runway!MHT 02/522 MHT RWY 35 FICON 20 PCT COMPACTED SN OBS AT 2602250437. 2602250437-2602260437
2/25/26
0040Z
!MHT 02/521 MHT COM REMOTE TRANS/REC 121.3 U/S 2602250040-2603312359EST
2/18/26
1245Z
2/27/26
2100Z
!MHT 02/320 MHT OBST CRANE (ASN 2025-ANE-3898-OE) 425500N0712749W (1.6NM SW MHT) 327FT (145FT AGL) FLAGGED AND LGTD 2602181245-2602272100
2/5/26
2014Z
3/31/26
2000Z
!MHT 02/068 MHT SVC WX REP T/DP UNREL 2602052014-2603312000
1/27/26
0814Z
3/13/26
0813Z
!MHT 01/678 MHT OBST TOWER LGT (ASR 1034296) 430100.00N0712848.00W (5.4NM NNW MHT) 489.5FT (306.8FT AGL) U/S 2601270814-2603130813
1/26/26
2130Z
3/12/26
2129Z
!MHT 01/633 MHT OBST TOWER LGT (ASR 1034299) 430054.00N0712846.00W (5.3NM NNW MHT) 490.8FT (310.7FT AGL) U/S 2601262130-2603122129
1/26/26
0614Z
3/12/26
0604Z
!MHT 01/559 MHT OBST TOWER LGT (ASN 2020-ANE-5582-OE) 425432N0712460W (1.7NM SSE MHT) 365FT (40FT AGL) U/S 2601260614-2603120604
11/30/25
1416Z
2/28/26
2359Z
!MHT 11/103 MHT APRON EAST RAMP S 500FT CLSD 2511301416-2602282359
9/22/25
1531Z
!MHT 09/093 MHT NAV ILS RWY 35 MM U/S 2509221531-2608032359EST
9/22/25
1529Z
!MHT 09/092 MHT NAV ILS RWY 35 IM U/S 2509221529-2608032359EST
9/21/25
0351Z
!MHT 09/087 MHT NAV ILS RWY 06 OM U/S 2509210351-2603052359EST
6/20/25
1800Z
6/2/26
2359Z
!MHT 06/079 MHT OBST MOORED BALLOON WI AN AREA DEFINED AS .3NM RADIUS OF 425844N0710646W (11.8NM W 7B3) 1200FT (1000FT AGL) LGTD 2506201800-2606022359
FDC
9/15/25
1711Z
!FDC 5/4031 MHT IAP MANCHESTER BOSTON RGNL, MANCHESTER, NH.
ILS RWY 35 (CAT II-III), AMDT 5 ...
S-ILS 35 CAT II NA EXCEPT FOR AIRCRAFT EQUIPPED WITH RADAR ALTIMETER. I-MHT INNER MARKER OUT OF SERVICE 2509151711-2604271710EST
4/11/25
1619Z
!FDC 5/5435 MHT IAP MANCHESTER BOSTON RGNL, MANCHESTER, NH.
RNAV (RNP) Z RWY 17, AMDT 1A...
RNP 0.11 DA 614/HAT 385 ALL CATS.
(PERM OBST: BLDG 33-031921, TRANSMISSION LINE 33-035982).
2504111619-2704151619EST
Yes
ALL
CITY OF MANCHESTER
CITY HALL
MANCHESTER, NH 03101
Phone: 603-624-6539
THOMAS J. MALAFRONTE
1 AIRPORT RD SUITE 300
MANCHESTER, NH 03103
Phone: 603-624-6539
BANGOR FSS (BGR)
Toll Free: 1-800-WX-BRIEF
MHT
Sunset to Sunrise
--
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High Pressure
None
Air Freight
Avionics
Charter Service
Pilot Instruction
Aircraft Rental

Runway 06/24

7651 ft. x 150 ft.
ASPH
Fair
GRVD
HIGH

200,000lbs
300,000lbs
350,000lbs
--
  Runway 06 Runway 24
True Heading 42°222°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 42° 55' 42"N 42° 56' 38"N
Longitude 71° 26' 57"W 71° 25' 47"W
Elevation 221' 242'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights Yes Yes
Runway End Identifier Lights Yes Yes

Runway 17/35

9250 ft. x 150 ft.
ASPH
Fair
GRVD
HIGH

200,000lbs
300,000lbs
350,000lbs
--
  Runway 17 Runway 35
True Heading 157°337°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 42° 56' 30"N 42° 55' 07"N
Longitude 71° 26' 22"W 71° 25' 33"W
Elevation 216' 266'
Threshold Crossing Height 67 ft. AGL 68 ft. AGL
Visual Glide Path Angle 3.1° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights No No
A110-10AIR CARRIER ACFT ONLY PERMITTED TO OPR ON AIRLINE TERMINAL RAMP.
A110-16JET ACFT TAXIING WB ACRS RWY 17/35 AT TWY E MUST USE CTN & LOW SETTINGS DUE TO LGT ACFT PRKG ON E RAMP.
A110-17NO TAXIING BTWN PUSHED BACK ACFT & THE AIRLINE TERMINAL OR CARGO RAMPS.
A110-2AIR CARRIERS EXCLUDED FM OPERATING ON TWY L.
A110-40TWY A SAFETY AREA S OF TWY E TO TWY A2 IS 65 FT.
A110-41ACFT WITH WINGSPAN GREATER THAN 145 FT RSTRD FM TWY G AND TWY N.
A110-42AMMON RAMP RSTRD TO ACFT WITH WINGSPAN LESS THAN 118 FT. ACFT ARE REQ TO MNTN TAXILANE CNTRLN TO AVOID PARKED GA ACFT TIEDOWNS. ACFT WITH WINGSPAN 118 FT OR GTR REQ GND CREW ASSISTANCE FOR TAXI & PRKG.
A110-6NO TGLS PERMITTED DURG SNOW REMOVAL OPNS.
A110-8NOISE ABATEMENT PROCEDURES: TURBOJET ACFT SHOULD EXPECT A RIGHT TURN WHEN DEPARTING RY 17.
A110-9ACFT NOT PERMITTED TO TAXI BETWEEN AIRLINE TERMINAL BLDG & ACFT THAT HAVE PUSHED BACK OR ARE TAXIING ON TWY G OR N.
A39-06/24PCR VALUE: 700/F/C/X/T
A39-17/35PCR VALUE: 700/F/C/X/T
A43-06PAPI UNUSBL BYD 6 DEGS R OF CNTRLN.
E111ESTAB PRIOR TO 1959. HEL ASP: VFR WX OPNS ONLY.
E60-06_EMASENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) 300 FT IN LENGTH BY 170 FT IN WIDTH LCTD AT THE DER 06.
MANCHESTER BOSTON RGNL (ICAO: KMHT, IATA: MHT) is a public airport located in MANCHESTER, NH, US.
