KMGY
DAYTON/WRIGHT BROTHERS
PublicPUB

10 miles S of DAYTON, OH
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 35' 20"N 84° 13' 29"W
957' MSL
1957' MSL
04W
JET A, JET A (FSII), 100LL
DAYTON (DAY)
CINCINNATI
INDIANAPOLIS (ZID)
4/17/25-5/15/25
KMGY MVFR
3:53 PM EST
Haze
Overcast 1,200'
6sm
43°F
38°F
29.99"Hg
280° 4kts
AO2 SLP159 T00610033 53007
METAR KMGY 072053Z AUTO 28004KT 6SM HZ OVC012 06/03 A2999 RMK AO2 SLP159 T00610033 53007
+ Add Your Business

KMGY FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

ASOS

ASOS
937-885-2171
 118.375

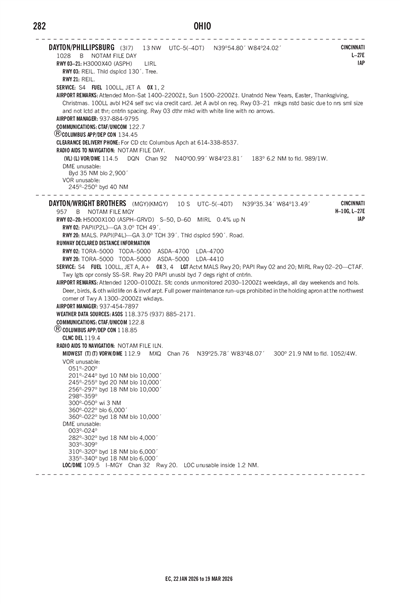

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KFFO (17nm)
Wed, 1/7 3:57 PM EST
Wed, 1/7 3:00 PM EST - Thu, 1/8 8:00 PM EST
MVFR
3:00 PM EST - 4:00 PM EST
Overcast 1,000'
6sm
29.97"Hg
210° 9kts
MVFR
Becoming 4:00 PM EST - 7:00 PM EST
Broken 2,500'
Scattered 1,500'
6sm
29.97"Hg
230° 9kts
VFR
Becoming 7:00 PM EST - 11:00 PM EST
Scattered 2,500'
6sm
30.00"Hg
VRB° 6kts
MVFR
Becoming 11:00 PM EST - 8:00 AM EST
Mist
Few 1,800'
4.97sm
30.03"Hg
VRB° 6kts
VFR
Becoming 8:00 AM EST - 5:00 PM EST
Broken 22,000'
Scattered 15,000'
6sm
29.91"Hg
160° 9kts
Light Turbulence: 700 - 3,700'
VFR
Temporary 2:00 PM EST - 6:00 PM EST
No Clouds
N/A
160° 12kts
Gusts 18kts
VFR
Becoming 5:00 PM EST - 8:00 PM EST
Overcast 18,000'
Broken 11,000'
Scattered 3,500'
6sm
29.88"Hg
160° 12kts
Gusts 20kts
Moderate, Clear Air, Occasional: 500 - 3,500'
TAF AMD KFFO 072057Z 0720/0901 21009KT 9999 OVC010 QNH2996INS
   BECMG 0721/0723 23009KT 9999 SCT015 BKN025 QNH2998INS
   BECMG 0800/0801 VRB06KT 9999 SCT025 QNH2999INS
   BECMG 0804/0805 VRB06KT 8000 BR FEW018 QNH3003INS
   BECMG 0813/0814 16009KT 9999 NSW SCT150 BKN220 510073 QNH2992INS
   TEMPO 0819/0823 16012G18KT
   BECMG 0822/0823 16012G20KT 9999 SCT035 BKN110 OVC180 520053 QNH2989INS TX06/0721Z TN01/0810Z
KMGY
EffectiveExpiresCategoryNOTAM
Domestic
1/7/26
1300Z
1/7/26
2100Z
!MGY 01/008 MGY NAV ILS RWY 20 U/S 2601071300-2601072100
1/6/26
1612Z
1/7/26
1612Z
!MGY 01/007 MGY AD AP SFC COND NOT REP 2601061612-2601071612
1/5/26
1557Z
1/7/26
2200Z
!MGY 01/006 MGY TWY A BTN T HANGAR RAMP AND APCH END RWY 02 CLSD 2601051557-2601072200
12/15/25
1200Z
3/30/26
2130Z
!MGY 12/015 MGY TWY A BTN MAIN RAMP AND TWY C WIP CONST ADJ WEST SHOULDER BARRICADED MON-FRI 1200-2130 2512151200-2603302130
FDC
12/14/25
2124Z
!FDC 5/9042 MGY IAP DAYTON/WRIGHT BROTHERS, DAYTON, OH.
LOC RWY 20, AMDT 1...
S-LOC 20 MDA 1420/HAT 465 ALL CATS.
VDP AT 2.21 DME; DISTANCE VDP TO THLD 1.33 NM.
TEMPORARY CRANE, 1106 MSL, 1886FT NE OF RWY 20 (2025-AGL-8869-OE).
2512142124-2602042124EST
7/21/25
1758Z
!FDC 5/1965 MGY IAP DAYTON/WRIGHT BROTHERS, DAYTON, OH.
RNAV (GPS) RWY 2, ORIG-A...
DISREGARD NOTE: VISIBILITY REDUCTION FOR HELICOPTERS NA.
2507211758-2603021758EST
No
0700-2000
CITY OF DAYTON
101 W 3RD ST
DAYTON, OH 45402-1859
Phone: 937-333-3600
BRANDON ELLIS
3600 TERMINAL DR STE 300
VANDALIA, OH 45377-1095
Phone: 937-454-7897
DAYTON FSS (DAY)
Toll Free: 1-800-WX-BRIEF
MGY
--
ACTVT MALS RWY 20; PAPI RWY 02 & 20; MIRL RWY 02/20 - CTAF. TWY LGTS OPR CONSLY SS-SR.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
None
Air Freight
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 02/20

5000 ft. x 100 ft.
ASPH
Good
GRVD
MED

50,000lbs
60,000lbs
--
--
  Runway 02 Runway 20
True Heading 22°202°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 39° 34' 57"N 39° 35' 43"N
Longitude 84° 13' 42"W 84° 13' 17"W
Elevation 936' 957'
Threshold Crossing Height 49 ft. AGL 39 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P4L
Approach Lights MALS
Centerline Lights No No
Runway End Identifier Lights No
A110-4DEER, BIRDS, & OTR WILDLIFE ON & INVOF ARPT.
A110-5SFC CONDS UNMON 1530-0700 WKDAYS & ALL DAY WKENDS/HOLS.
A110-6FULL PWR MAINT RUNUPS PROHIBITED IN THE HLDG APN AT THE NW CORNER OF TWY A 0800-1700 WKDAYS.
DAYTON/WRIGHT BROTHERS (ICAO: KMGY, IATA: MGY) is a public airport located in DAYTON, OH.
