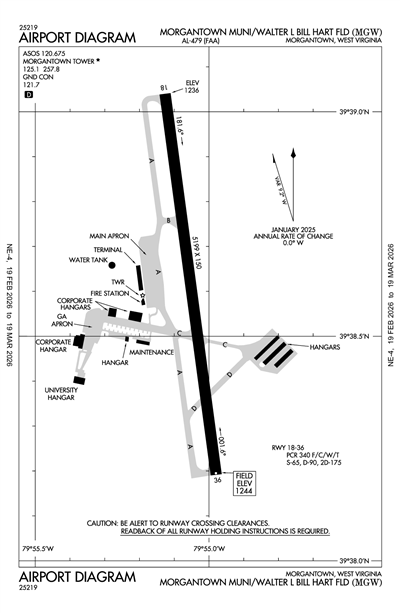

MORGANTOWN MUNI/WALTER L BILL HART FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMGW
ICAO KMGWIATA MGWLocal MGW
MORGANTOWN MUNI/WALTER L BILL HART FLD
PublicPUB

3 miles E of MORGANTOWN, WV, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 38' 37"N 79° 55' 03"W
Elevation
1244' MSL
Pattern Alt
2244' MSL
Mag Variation
9°W
Declination
9°W
Fuel
JET A, JET A (FSII), 100LL
FSS
ELKINS (EKN)
Sectional
CINCINNATI
ARTCC
CLEVELAND (ZOB)
Data Effective
2/19/26-3/19/26
KMGW IFR
5:53 AM EST
Overcast 800'
10sm
54°F
52°F
30.18"Hg
210° 4kts
AO2 SLP220 T01220111
METAR KMGW 041053Z AUTO 21004KT 10SM OVC008 12/11 A3018 RMK AO2 SLP220 T01220111
+ Add Your Business

KMGW FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 120.675
(304) 371-2021

Common

CTAF 125.1
WHEN ATCT CLSD ACTVT MALSR RWY 18; REIL RWY 36; VASI RWY 36; HIRL RWY 18/36; TWY LGTS - CTAF.
UNICOM 122.95

Ground

MORGANTOWN GROUND 121.7
0700-2300

Tower

MORGANTOWN TOWER 125.1
0700-2300

Approach

CLARKSBURG APPROACH 121.15

Departure

CLARKSBURG DEPARTURE 121.15

Center

CLARKSBURG CENTER 126.95
LOW, APCH/DEP SVC PRVDD BY CLEVELAND ARTCC (ZOB) ON FREQS 126.95/239.3 (BELMONT RCAG) WHEN CLARKSBURG APCH CTL CLSD.

Flight Service

Flight Service 122.1
(EKN)

Terminal Area Forecast

KMGW
Wed, 3/4 4:08 AM EST
Wed, 3/4 4:00 AM EST - Thu, 3/5 1:00 AM EST
MVFR
4:00 AM EST - 6:00 AM EST
Light Rain and Mist
Overcast 1,200'
Scattered 900'
6sm
VRB° 3kts
LIFR
6:00 AM EST - 10:00 AM EST
Light Drizzle and Mist
Overcast 200'
2sm
Calm
LIFR
10:00 AM EST - 12:00 PM EST
Light Rain and Mist
Overcast 200'
1sm
Calm
LIFR
12:00 PM EST - 4:00 PM EST
Light Rain and Fog
Overcast 200'
0.25sm
VRB° 3kts
LIFR
4:00 PM EST - 8:00 PM EST
Light Rain
Overcast 400'
1sm
VRB° 3kts
LIFR
8:00 PM EST - 1:00 AM EST
Light Rain and Fog
Overcast 300'
0.25sm
Calm
TAF KMGW 040908Z 0409/0506 VRB03KT 6SM -RA BR SCT009 OVC012
   FM041100 00000KT 2SM -DZ BR OVC002
   FM041500 00000KT 1SM -RA BR OVC002
   FM041700 VRB03KT 1/4SM -RA FG OVC002
   FM042100 VRB03KT 1SM -RA OVC004
   FM050100 00000KT 1/4SM -RA FG OVC003
KMGW
EffectiveExpiresCategoryNOTAM
Domestic
3/4/26
0218Z
3/5/26
0218Z
Runway!MGW 03/004 MGW RWY 18 FICON 5/5/5 100 PCT WET OBS AT 2603040218. 2603040218-2603050218
3/2/26
0356Z
Runway!MGW 03/002 MGW RWY 18 ALS U/S 2603020356-2604062000EST
2/20/26
1624Z
3/7/26
1524Z
!MGW 02/059 MGW OBST TOWER LGT (ASR 1265801) 393944.30N0800359.70W (6.9NM W MGW) 1522.0FT (257.9FT AGL) U/S 2602201624-2603071524
1/24/26
1232Z
3/24/26
1232Z
!MGW 01/058 MGW OBST TOWER LGT (ASR 1034484) 393638.00N0795908.00W (3.7NM WSW MGW) 1700.1FT (410.1FT AGL) U/S 2601241232-2603241232
1/5/26
1325Z
6/30/26
2359Z
!MGW 01/024 MGW OBST TOWER LGT (ASR 1035128) 394145.00N0794544.00W (7.8NM ENE MGW) 3089.2FT (493.1FT AGL) U/S 2601051325-2606302359
12/25/25
1000Z
3/25/26
0500Z
!MGW 12/067 MGW OBST TOWER LGT (ASR 1059314) 394336.60N0800348.60W (8.3NM NW MGW) 1374.0FT (308.1FT AGL) U/S 2512251000-2603250500
6/13/25
1741Z
!MGW 06/016 MGW TWY D BTN EAST APN AND RWY 18/36 CLSD TO AIR CARRIERS 2506131741-PERM
4/26/25
2002Z
!MGW 04/044 MGW TWY C BTN EAST APN AND RWY 18/36 CLSD TO AIR CARRIERS EXC GA 2504262002-PERM
FDC
10/27/25
1403Z
6/8/26
1403Z
!FDC 5/7010 MGW IAP MORGANTOWN MUNI/WALTER L BILL HART FLD, MORGANTOWN, WV.
ILS OR LOC RWY 18, AMDT 13E...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
MGW VORTAC OUT OF SERVICE AND CKB VOR/DME OUT OF SERVICE.
2510271403-2606081403EST
Yes
MON-FRI 0500-0000
SAT-SUN 0500-2300
CITY OF MORGANTOWN
389 SPRUCE ST
MORGANTOWN, WV 26505
Phone: 304-284-7405
JONATHON VRABEL
100 HART FIELD RD
MORGANTOWN, WV 26505
Phone: 304-225-4114
ELKINS FSS (EKN)
Toll Free: 1-800-WX-BRIEF
MGW
--
WHEN ATCT CLSD ACTVT MALSR RWY 18; REIL RWY 36; VASI RWY 36; HIRL RWY 18/36; TWY LGTS - CTAF.
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
Air Ambulance
Charter Service
Pilot Instruction
Annual Surveying

Runway 18/36

5199 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

65,000lbs
90,000lbs
175,000lbs
--
  Runway 18 Runway 36
True Heading 172°352°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 39' 02"N 39° 38' 11"N
Longitude 79° 55' 08"W 79° 54' 59"W
Elevation 1,236' 1,244'
Threshold Crossing Height 59 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L V4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-1DEER & BIRDS ON & INVOF ARPT.
A110-3FBO HRS MON-FRI 0500-0000, SAT-SUN 0500-2300. 24-HR PHONE NR 304-296-2359.
A110-4BE ALERT: POSSIBILITY OF TURBULENCE INVOF POWER PLANT STACKS 3.6 MILES N OF AFLD DURG COLD WEATHER.
A110-5FOR CD CTC CLARKSBURG APCH AT 304-842-2011, WHEN APCH CLSD CTC CLEVELAND ARTCC AT 440-774-0226.
A24LNDG FEE FOR ACFT 5000 LBS & OVER.
A26PPR 24 HRS FOR UNSCHEDULED ACR OPNS, CALL AMGR 304-291-7461.
A39-18/36PCR VALUE: 340/F/C/W/T
A81-APTWHEN ATCT CLSD ACTVT MALSR RWY 18; REIL RWY 36; VASI RWY 36; HIRL RWY 18/36; TWY LGTS - CTAF.
MORGANTOWN MUNI/WALTER L BILL HART FLD (ICAO: KMGW, IATA: MGW) is a public airport located in MORGANTOWN, WV, US.
