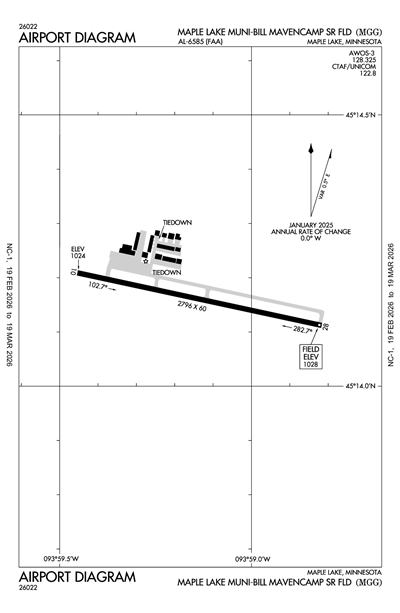

MAPLE LAKE MUNI-BILL MAVENCAMP SR FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMGG
ICAO KMGGLocal MGG
MAPLE LAKE MUNI-BILL MAVENCAMP SR FLD
PublicPUB

1 miles NE of MAPLE LAKE, MN, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
45° 14' 10"N 93° 59' 08"W
Elevation
1028' MSL
Pattern Alt
2028' MSL
Mag Variation
1°E
Declination
3°E
Fuel
100LL
FSS
PRINCETON (PNM)
Sectional
TWIN CITIES
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
2/19/26-3/19/26
KMGG LIFR
5:55 AM CST
Fog
Overcast 200'
0.5sm
33°F
32°F
30.14"Hg
190° 6kts
AO2 T00031001 10024 21009
METAR KMGG 041155Z AUTO 19006KT 1/2SM FG OVC002 00/00 A3014 RMK AO2 T00031001 10024 21009
+ Add Your Business

KMGG FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 128.325
(320) 963-3300

Common

CTAF 122.8
UNICOM 122.8

Approach

MINNEAPOLIS APPROACH 126.5

Departure

MINNEAPOLIS DEPARTURE 126.5

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Arrival Procedures

Instrument Approach

Terminal Area Forecast

KSTC (19nm)
Wed, 3/4 5:22 AM CST
Wed, 3/4 6:00 AM CST - Thu, 3/5 6:00 AM CST
LIFR
Temporary 6:00 AM CST - 8:00 AM CST
Fog
Obscured
0.25sm
Calm
IFR
6:00 AM CST - 9:00 AM CST
Mist
Broken 25,000'
1sm
190° 5kts
VFR
9:00 AM CST - 10:00 PM CST
Broken 25,000'
Scattered 2,500'
6sm
190° 5kts
MVFR
10:00 PM CST - 3:00 AM CST
Mist
Scattered 25,000'
5sm
Calm
LIFR
3:00 AM CST - 6:00 AM CST
Fog
Broken 300'
0.5sm
VRB° 3kts
TAF KSTC 041122Z 0412/0512 19005KT 1SM BR BKN250
   TEMPO 0412/0414 1/4SM FG VV002
   FM041500 19005KT P6SM SCT025 BKN250
   FM050400 00000KT 5SM BR SCT250
   FM050900 VRB03KT 1/2SM FG BKN003
KMGG
EffectiveExpiresCategoryNOTAM
Domestic
3/4/26
1600Z
5/5/26
1100Z
!MGG 03/002 MGG COM CLR DELIVERY 612-726-9086 U/S USE 612-713-4016 2603041600-2605051100
2/20/26
1609Z
5/21/26
0500Z
!MGG 02/001 MGG OBST TOWER LGT (ASR 1202826) 451614.50N0940852.50W (7.2NM WNW MGG) 1331.0FT (265.1FT AGL) U/S 2602201609-2605210500
No
UNATNDD
CITY OF MAPLE LAKE
PO BOX 757 10 MAPLE AVE S
MAPLE LAKE, MN 55358
Phone: 320-963-3611
ALAN HUDEK
PO BOX 757 10 MAPLE AVE S
MAPLE LAKE, MN 55358
Phone: 612-490-8461
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
MGG
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 10/28

2796 ft. x 60 ft.
ASPH
Fair
NONE
NSTD

--
--
--
--
  Runway 10 Runway 28
True Heading 102°282°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 45° 14' 12"N 45° 14' 07"N
Longitude 93° 59' 27"W 93° 58' 49"W
Elevation 1,024' 1,028'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-2ONE TKOF/LDG PER FLT OPRN, NO TGL OR TRG.
A110-5MIGRATORY WATERFOWL ON & INVOF ARPT.
A110-6FOR CD CTC MINNEAPOLIS APCH AT 612-726-9086.
A13LEEANN.YAGER@CI.MAPLE-LAKE.MN.US.
A16OR 612-490-8459.
A40-10/28NSTD LIRL DUE TO 400 FT SPACING BTN LGTS, 20 FT FM EDGE.
A58-28+8 FT RSG TRRN, 170 FT DIST, 80 FT R.
A70-100LLFUEL AVBL H24 WITH CREDIT CARD.
MAPLE LAKE MUNI-BILL MAVENCAMP SR FLD (ICAO: KMGG, IATA: MGG) is a public airport located in MAPLE LAKE, MN, US.
