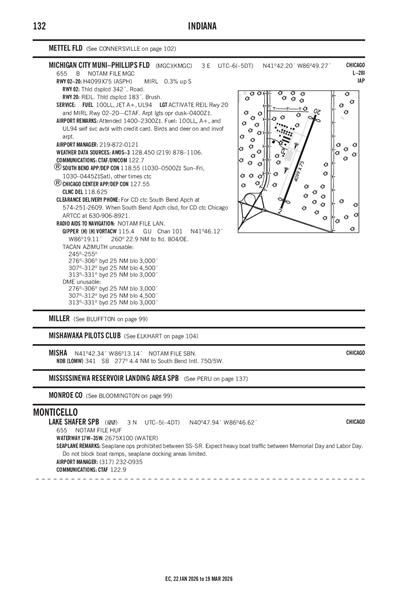

MICHIGAN CITY MUNI-PHILLIPS FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMGC
ICAO KMGCIATA MGCLocal MGC
MICHIGAN CITY MUNI-PHILLIPS FLD
PublicPUB

3 miles E of MICHIGAN CITY, IN, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 42' 12"N 86° 49' 16"W
Elevation
655' MSL
Pattern Alt
1655' MSL
Mag Variation
5°W
Declination
3°W
Fuel
JET A (FSII), 100LL, UL94
FSS
TERRE HAUTE (HUF)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
2/19/26-3/19/26
KMGC MVFR
9:55 PM CST
Overcast 2,000'
10sm
36°F
32°F
30.20"Hg
Calm
AO2
METAR KMGC 040355Z AUTO 00000KT 10SM OVC020 02/00 A3020 RMK AO2
+ Add Your Business

KMGC FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 128.45
(219) 878-1106

Common

CTAF 122.7
ACTVT REIL RWY 20; MIRL RWY 02/20 - CTAF.
UNICOM 122.7

Clearance

Clearance Delivery 118.625

Approach

SOUTH BEND APPROACH 118.55

Departure

SOUTH BEND DEPARTURE 118.55

Center

SOUTH BEND CENTER 127.55
LOW, APCH/DEP SVC PRVDD BY CHICAGO ARTCC ON 127.55/307.175 (GOSHEN RCAG) WHEN SOUTH BEND APCH CTL CLSD.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KSBN (23nm)
Tue, 3/3 6:20 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
MVFR
7:00 PM EST - 9:00 PM EST
Haze
Overcast 3,500'
Broken 2,500'
Scattered 1,700'
5sm
350° 3kts
MVFR
9:00 PM EST - 1:00 AM EST
Mist
Overcast 2,500'
5sm
VRB° 3kts
MVFR
Temporary 9:00 PM EST - 1:00 AM EST
Broken 1,500'
N/A
Calm
MVFR
1:00 AM EST - 1:00 PM EST
Mist
Broken 1,000'
5sm
060° 5kts
LIFR
Temporary 5:00 AM EST - 9:00 AM EST
Mist
Overcast 400'
2sm
Calm
IFR
1:00 PM EST - 7:00 PM EST
Mist
Overcast 700'
4sm
120° 7kts
TAF KSBN 032320Z 0400/0424 35003KT 5SM HZ SCT017 BKN025 OVC035
   FM040200 VRB03KT 5SM BR OVC025
   TEMPO 0402/0406 BKN015
   FM040600 06005KT 5SM BR BKN010
   TEMPO 0410/0414 2SM BR OVC004
   FM041800 12007KT 4SM BR OVC007
KMGC
EffectiveExpiresCategoryNOTAM
Domestic
2/20/26
1938Z
3/7/26
1838Z
!MGC 02/006 MGC OBST TOWER LGT (ASR 1211309) 413925.60N0864539.80W (3.9NM SE MGC) 1160.8FT (259.8FT AGL) U/S 2602201938-2603071838
2/1/26
1712Z
5/3/26
0500Z
!MGC 02/001 MGC OBST TOWER LGT (ASR 1052738) 414534.70N0864448.50W (4.8NM NE MGC) 926.8FT (254.9FT AGL) U/S 2602011712-2605030500
FDC
5/5/25
1408Z
!FDC 5/5900 MGC IAP MICHIGAN CITY MUNI-PHILLIPS FLD, MICHIGAN CITY, IN.
RNAV (GPS) RWY 20, AMDT 1A...
DELETE: DESCENT ANGLE 3.00/TCH 40. PROFILE NOTE: VISUAL SEGMENT OBSTACLES ON FINAL 0.5 NM ON CENTERLINE . VDA NA..
2505051408-2705051408EST
No
0800-1700
MICHIGAN CITY BOAC
1300 N HWY 212
MICHIGAN CITY, IN 46360
Phone: 219-872-0121
JESSICA WARD
1300 N HIGHWAY 212
MICHIGAN CITY, IN 46360
Phone: 219-872-0121
TERRE HAUTE FSS (HUF)
Toll Free: 1-800-WX-BRIEF
MGC
--
ACTVT REIL RWY 20; MIRL RWY 02/20 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Parachute Jump Activity

Runway 02/20

4099 ft. x 75 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 02 Runway 20
True Heading 20°200°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 41' 53"N 41° 42' 31"N
Longitude 86° 49' 26"W 86° 49' 07"W
Elevation 654' 642'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No Yes
A110-1SAWRS.
A110-2BIRDS & DEER ON & INVOF ARPT.
A110-3FOR CD CTC SOUTH BEND APCH AT 574-251-2609. WHEN SOUTH BEND APCH CLSD, FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
A16EMERG - 219-898-1277
A57-02APCH SLOPE 20:1 AT DTHR.
A57-20APCH SLOPE 20:1 AT DTHR.
A58-2010 FT BRUSH 110 FT R OF CNTRLN 60 FT FM RWY END.
A70-100LLSELF SVC AVBL WITH CREDIT CARD.
A70-A+SELF SVC AVBL WITH CREDIT CARD.
A70-UL94SELF SVC AVBL WITH CREDIT CARD.
A81-APTACTVT REIL RWY 20; MIRL RWY 02/20 - CTAF.
MICHIGAN CITY MUNI-PHILLIPS FLD (ICAO: KMGC, IATA: MGC) is a public airport located in MICHIGAN CITY, IN, US.
