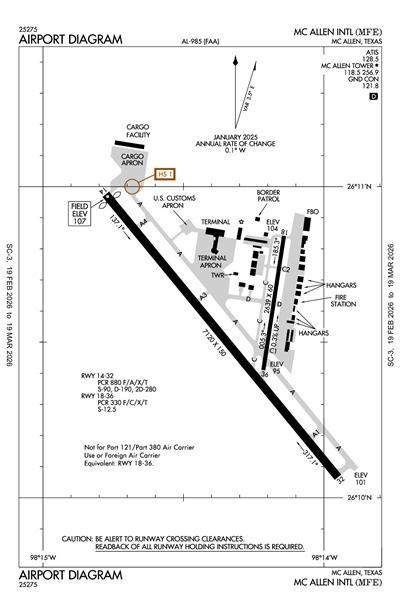

MC ALLEN INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMFE
ICAO KMFEIATA MFELocal MFE
MC ALLEN INTL
PublicPUB

2 miles S of MC ALLEN, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
26° 10' 33"N 98° 14' 19"W
Elevation
107' MSL
Pattern Alt
1107' MSL
Mag Variation
4°E
Declination
4°E
Fuel
JET A, 100LL
FSS
SAN ANGELO (SJT)
Sectional
BROWNSVILLE
ARTCC
HOUSTON (ZHU)
Data Effective
2/19/26-3/19/26
KMFE VFR
2:53 AM CST
Few 1,500'
10sm
75°F
69°F
29.96"Hg
140° 14kts
AO2 SLP144 T02390206 58006 PWINO $
METAR KMFE 040853Z AUTO 14014KT 10SM FEW015 24/21 A2996 RMK AO2 SLP144 T02390206 58006 PWINO $
+ Add Your Business

KMFE FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 128.5
ASOS (956) 664-8212

Common

CTAF 118.5
WHEN ATCT CLSD ACTVT MALSR RWY 14; HIRL RWY 14/32; MIRL RWY 18/36 - CTAF.
UNICOM 122.95

Ground

MC ALLEN GROUND 121.8
0600-0000

Tower

MC ALLEN TOWER 118.5
0600-0000

Approach

VALLEY APPROACH 126.55

Departure

VALLEY DEPARTURE 126.55

Flight Service

Flight Service 122.2
(SJT)

Emergency

Emergency 121.5

Terminal Area Forecast

KMFE
Tue, 3/3 11:20 PM CST
Wed, 3/4 12:00 AM CST - Thu, 3/5 12:00 AM CST
MVFR
12:00 AM CST - 8:00 AM CST
Broken 1,500'
6sm
140° 13kts
Gusts 18kts
MVFR
8:00 AM CST - 8:00 PM CST
Broken 3,000'
6sm
140° 20kts
Gusts 30kts
MVFR
8:00 PM CST - 12:00 AM CST
Overcast 1,500'
6sm
140° 12kts
TAF KMFE 040520Z 0406/0506 14013G18KT P6SM BKN015
   FM041400 14020G30KT P6SM BKN030
   FM050200 14012KT P6SM OVC015
KMFE
EffectiveExpiresCategoryNOTAM
Domestic
3/9/26
0305Z
3/9/26
0310Z
!MFE 03/008 MFE AIRSPACE PYROTECHNIC DEMONSTRATION WI AN AREA DEFINED AS 2NM RADIUS OF 261201N0981535W (1.5NM N MFE) SFC-300FT 2603090305-2603090310
3/8/26
0355Z
3/8/26
0400Z
!MFE 03/007 MFE AIRSPACE PYROTECHNIC DEMONSTRATION WI AN AREA DEFINED AS 2NM RADIUS OF 261201N0981535W (1.5NM N MFE) SFC-300FT 2603080355-2603080400
3/7/26
0040Z
3/7/26
0045Z
!MFE 03/006 MFE AIRSPACE PYROTECHNIC DEMONSTRATION WI AN AREA DEFINED AS 2NM RADIUS OF 261201N0981535W (1.5NM N MFE) SFC-300FT 2603070040-2603070045
3/4/26
1500Z
3/4/26
2200Z
!MFE 03/013 MFE SVC ATIS U/S 2603041500-2603042200
3/4/26
1500Z
3/4/26
2200Z
!MFE 03/012 MFE SVC ATIS 128.5 U/S 2603041500-2603042200
3/4/26
1500Z
3/4/26
2200Z
!MFE 03/011 MFE COM REMOTE COM OUTLET 122.2, 255.4 U/S 2603041500-2603042200
3/4/26
1500Z
3/4/26
2200Z
!MFE 03/010 MFE NAV ILS RWY 32 U/S 2603041500-2603042200
3/4/26
1500Z
3/4/26
2200Z
!MFE 03/009 MFE NAV ILS RWY 14 U/S 2603041500-2603042200
3/4/26
1500Z
3/4/26
2300Z
!MFE 03/003 MFE SVC TAR/SSR U/S 2603041500-2603042300
3/3/26
0200Z
3/8/26
1000Z
!MFE 03/005 MFE TWY C BTN TWY A AND TWY D CLSD DLY 0200-1000 2603030200-2603081000
3/1/26
1832Z
4/15/26
2359Z
!MFE 03/001 MFE OBST TOWER LGT (ASR 1205265) 261305.20N0981360.00W (2.5NM NE MFE) 237.9FT (118.1FT AGL) U/S 2603011832-2604152359
2/28/26
0116Z
6/1/26
2359Z
!MFE 02/073 MFE AIRSPACE UAS WI AN AREA DEFINED AS 260722N0980706W (7.4NM SE MFE) TO 260652N0975839W (4.7NM S TXW) TO 260547N0975143W (8.7NM SE TXW) TO 260308N0975141W (10.1NM SW TXW) TO 260355N0975155W (10.2NM SE TXW) TO 260324N0975220W (9.5NM SE TXW) TO 260342N0975304W (9NM SE TXW) TO 260350N0975248W (9.6NM SE TXW) TO 260309N0975525W (8.2NM SSE TXW) TO 260349N0975607W (8NM SSE TXW) TO 260307N0975628W (8NM SSE TXW) TO 260335N0975720W (7.8NM S TXW) TO 260306N0975816W (7.6NM S TXW) TO 260350N0975910W (7.6NM S TXW) TO 260331N0980037W (7.7NM SSW TXW) TO 260339N0980146W (8NM SSW TXW) TO 260232N0980237W (9.2NM SW TXW) TO 260236N0980424W (10NM SW TXW) TO 260321N0980420W (9.2NM SW TXW) TO 260412N0980513W (8.8NM SW TXW) TO 260345N0980516W (9.7NM SW TXW) TO 260331N0980607W (10.2NM SW TXW) TO 260354N0980636W (10.1NM SW TXW) TO 260340N0980748W (9.9NM SE MFE) TO 260408N0980808W (8.6NM SE MFE) TO 260254N0980857W (10.2NM SE MFE) TO 260315N0980908W (8.8NM SE MFE) TO 260319N0980950W (8.9NM SE MFE) TO 260340N0980942W (8.9NM SE MFE) TO 260344N0981019W (8.4NM SE MFE) TO 260412N0981101W (7.2NM SSE MFE) TO 260335N0981057W (8.4NM SSE MFE) TO 260346N0981130W (8.3NM SSE MFE) TO 260312N0981158W (8.3NM SSE MFE) TO 260429N0981328W (6.6NM S MFE) TO 260433N0981418W (6.5NM S MFE) TO 260416N0981503W (6.5NM S MFE) TO 260518N0981613W (5.8NM SSW MFE) TO 260636N0981609W (4.7NM SSW MFE) TO 260615N0981413W (4.5NM S MFE) TO 260634N0981224W (5NM SSE MFE) TO 260729N0981055W (5.2NM SE MFE) TO 260830N0981006W (4.6NM SE MFE) TO POINT OF ORIGIN SFC-400FT AGL 2602280116-2606012359
2/28/26
0115Z
6/1/26
2359Z
!MFE 02/072 MFE AIRSPACE UAS WI AN AREA DEFINED AS 261827N0983341W (17.6NM SE 67R) TO 261600N0982616W (11.6NM NW MFE) TO 261309N0982027W (5.5NM NW MFE) TO 261122N0981903W (4.1NM W MFE) TO 260955N0981913W (4.3NM WSW MFE) TO 260841N0981843W (4NM SW MFE) TO 260720N0981740W (4.2NM SW MFE) TO 260728N0981829W (4.7NM SW MFE) TO 260618N0981827W (5.6NM SW MFE) TO 260657N0981918W (6.1NM SW MFE) TO 260807N0982011W (5.6NM SW MFE) TO 260928N0982013W (5.2NM WSW MFE) TO 260959N0982047W (5.2NM WSW MFE) TO 260916N0982122W (6.1NM WSW MFE) TO 260954N0982215W (7NM WSW MFE) TO 260926N0982320W (7.9NM WSW MFE) TO 261053N0982441W (8.7NM W MFE) TO 261200N0982642W (10.5NM WNW MFE) TO 261300N0982630W (10.7NM NW MFE) TO 261321N0982749W (11.6NM NW MFE) TO 261237N0982925W (13.2NM WNW MFE) TO 261314N0983018W (14.2NM NW MFE) TO 261339N0983208W (16NM NW MFE) TO 261445N0983308W (17NM NW MFE) TO 261413N0983447W (18NM NW MFE) TO 261508N0983455W (18.2NM NW MFE) TO 261509N0983520W (17.5NM SE 67R) TO POINT OF ORIGIN SFC-400FT AGL 2602280115-2606012359
2/27/26
1912Z
!MFE 02/070 MFE COM REMOTE COM OUTLET 122.2 U/S 2602271912-2603132000EST
2/20/26
0336Z
!MFE 02/055 MFE NAV VOR/DME NOT MNT 2602200336-2603202000EST
12/31/25
1422Z
!MFE 12/056 MFE NAV ILS RWY 14 MISSI LOM U/S 2512311422-2603312000EST
10/30/25
0501Z
5/1/26
0500Z
Runway!MFE 10/053 MFE RWY 18/36 CLSD TO LDG AND TKOF
2510300501-2605010500
9/24/25
0752Z
!MFE 09/046 MFE OBST TOWER LGT (ASN 1999-ASW-4772-OE) 260949N0981316W (1.2NM SE MFE) 181FT (83FT AGL) U/S 2509240752-2610292359EST
7/27/25
1046Z
Runway!MFE 07/050 MFE RWY 32 VASI U/S 2507271046-2607232000EST
5/28/25
1432Z
!MFE 05/100 MFE OBST TOWER LGT (ASN 1999-ASW-4778-OE) 260933N0981341W (1.1NM SSE MFE) 173FT (83FT AGL) U/S 2505281432-2605282359EST
5/28/25
1429Z
5/28/26
2359Z
!MFE 05/098 MFE OBST TOWER LGT (ASN 1999-ASW-4782-OE) 260935N0981358W (1.0NM SSE MFE) 184FT (88FT AGL) U/S 2505281429-2605282359
5/28/25
1426Z
5/28/26
2359Z
!MFE 05/097 MFE OBST TOWER LGT (ASN 1999-ASW-4781-OE) 260935N0981353W (1.0NM SSE MFE) 177FT (83FT AGL) U/S 2505281426-2605282359
5/28/25
1426Z
5/28/26
2359Z
!MFE 05/096 MFE OBST TOWER LGT (ASN 1999-ASW-4780-OE) 260934N0981349W (1.1NM SSE MFE) 176FT (83FT AGL) U/S 2505281426-2605282359
5/28/25
1425Z
5/28/26
2359Z
!MFE 05/095 MFE OBST TOWER LGT (ASN 1999-ASW-4779-OE) 260933N0981344W (1.1NM SSE MFE) 176FT (83FT AGL) U/S 2505281425-2605282359
5/28/25
1424Z
5/28/26
2359Z
!MFE 05/094 MFE OBST TOWER LGT (ASN 1999-ASW-4777-OE) 260932N0981336W (1.2NM SSE MFE) 174FT (83FT AGL) U/S 2505281424-2605282359
5/28/25
1423Z
5/28/26
2359Z
!MFE 05/093 MFE OBST TOWER LGT (ASN 1999-ASW-4776-OE) 260935N0981333W (1.2NM SE MFE) 176FT (83FT AGL) U/S 2505281423-2605282359
5/28/25
1422Z
5/28/26
2359Z
!MFE 05/092 MFE OBST TOWER LGT (ASN 1999-ASW-4775-OE) 260939N0981329W (1.2NM SE MFE) 175FT (83FT AGL) U/S 2505281422-2605282359
5/28/25
1421Z
5/28/26
2359Z
!MFE 05/091 MFE OBST TOWER LGT (ASN 1999-ASW-4774-OE) 260943N0981324W (1.2NM SE MFE) 170FT (82FT AGL) U/S 2505281421-2605282359
5/28/25
1420Z
5/28/26
2359Z
!MFE 05/090 MFE OBST TOWER LGT (ASN 1999-ASW-4773-OE) 260946N0981320W (1.2NM SE MFE) 175FT (83FT AGL) U/S 2505281420-2605282359
Yes
0600-0001
FOR SVCS AFT HRS CALL 956-686-1774.
CITY OF MC ALLEN
P O BOX 220
MC ALLEN, TX 78502
Phone: 956-681-1000
JEREMY SANTOSCOY
2500 S BICENTENNIAL BLVD
MC ALLEN, TX 78503
Phone: 956-681-1500
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
MFE
--
WHEN ATCT CLSD ACTVT MALSR RWY 14; HIRL RWY 14/32; MIRL RWY 18/36 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
Airport of Entry
Major
Major
High Pressure
None
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 14/32

7120 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

90,000lbs
190,000lbs
280,000lbs
--
  Runway 14 Runway 32
True Heading 141°321°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 26° 10' 59"N 26° 10' 04"N
Longitude 98° 14' 47"W 98° 13' 57"W
Elevation 107' 101'
Threshold Crossing Height -- 53 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- V2L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 18/36

2639 ft. x 60 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 189°9°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 26° 10' 51"N 26° 10' 25"N
Longitude 98° 14' 09"W 98° 14' 13"W
Elevation 104' 95'
Threshold Crossing Height 35 ft. AGL --
Visual Glide Path Angle 4° --
Visual Slope Indicator P2L --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10JET OR LARGE PROPELLER ACFT TRNG PROHIBITED (INCLUDING PRACTICE APCHS; TGL & PRACTICE INSTRUMENT APCH PROCS) DUE TO NOISE ABATEMENT PROCEDURES EFFECT 2300-0600.
A110-11WHEN DEPARTING ARPT FLY RWY HDG UNTIL REACHING 1000 FT AGL BFR MAKING PT.
A110-12TWY C BTN TWY C2 AND THE APCH END OF RWY 18 NOT VSB FM ATCT.
A110-13FOR CD WHEN ATCT IS CLSD CTC CRP APCH AT 361-299-4230.
A110-14NO ACFT ENG RUN-UPS ON TRML APN.
A110-2FOR ARFF WHEN ATCT CLSD CTC, MC ALLEN ARPT OPNS 956-681-1500.
A110-4NO 180 DEGS LOCKED WHEEL TURNS ON RWY 14/32.
A110-6BIRDS ON & INVOF ARPT (SEASONAL).
A17-M1FOR SVCS AFT HRS CALL 956-686-1774.
A30-18/36RWY 18/36 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A39-14/32PCR VALUE: 880/F/A/X/T
A39-18/36PCR VALUE: 330/F/C/X/T
A43-18PAPI OTS INDEFLY.
A57-14APCH RATIO 37:1 FM DSPLCD THR.
A81-APTWHEN ATCT CLSD ACTVT MALSR RWY 14; HIRL RWY 14/32; MIRL RWY 18/36 - CTAF.
MC ALLEN INTL (ICAO: KMFE, IATA: MFE) is a public airport located in MC ALLEN, TX, US.
