KMER
CASTLE
PublicPUB

3 miles NE of ATWATER, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 22' 50"N 120° 34' 05"W
190' MSL
1190' MSL
15E
JET A, JET A-1, 100LL
RANCHO MURIETA (RIU)
SAN FRANCISCO
OAKLAND (ZOA)
10/31/24-11/28/24
KMCE (6nm) VFR
3:53 AM PST
Clear
10sm
43°F
33°F
30.03"Hg
Calm
AO2 SLP168 T00610006 10106 20050 58004
KMCE 091153Z AUTO 00000KT 10SM CLR 06/01 A3003 RMK AO2 SLP168 T00610006 10106 20050 58004
Add Your Business

KMER FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 118.175

ATIS

ATIS
Hours: 24 HRS.
 124.475

Ground

GND/P
 133.575

Tower

LCL/P
 118.175

FAA A/FD Pages

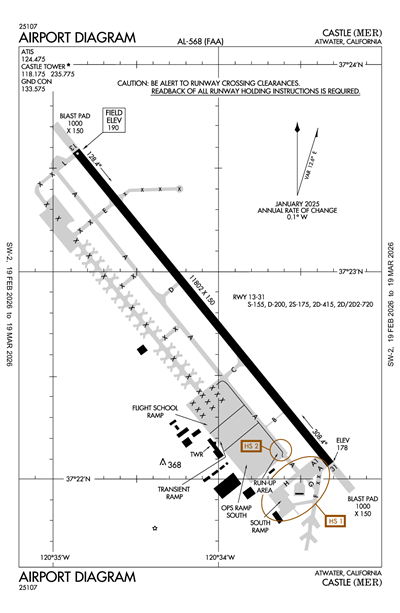

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMER
Sat, 11/9 3:20 AM PST
Sat, 11/9 4:00 AM PST - Sun, 11/10 4:00 AM PST
VFR
4:00 AM PST - 4:00 AM PST
Sky Clear
6sm
VRB° 4kts
KMER 091120Z 0912/1012 VRB04KT P6SM SKC AMD NOT SKED
KMER
Domestic
8/30/241629Z !MER 08/012 MER SVC AUTOMATED WX BCST SYSTEM U/S 2408301629-2504052359EST
3/1/241518Z !MER 03/001 MER RWY 13 ALS U/S 2403011518-2412312359
FDC
11/6/241600Z !FDC 4/9184 MER IAP CASTLE, ATWATER, CA.
ILS OR LOC RWY 31, AMDT 3...
S-LOC 31: NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
MISSED APPROACH: CLIMB TO 800 THEN CLIMBING LEFT TURN TO 3000 DIRECT MOD VOR/DME AND HOLD.
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
HYP VOR/DME OUT OF SERVICE. 2411061600-2411132355EST
10/30/242234Z !FDC 4/6448 MER IAP CASTLE, ATWATER, CA.
ILS OR LOC RWY 31, AMDT 3...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
HYP VOR/DME UNMONITORED. 2410302234-2411302234EST
Yes
0900-1800
MERCED COUNTY
2222 M STREET
MERCED, CA 95340
Phone: 209-385-7686
MARK MIMMS
2222 M STREET
MERCED, CA 95340-4180
Phone: 209-385-7686
RANCHO MURIETA FSS (RIU)
Toll Free: 1-800-WX-BRIEF
MER
--
WHEN ATCT CLSD ACTVT HIRL RY 13/31; ALSF1 RYS 13 & 31 FREQ 123.00; 3 CLICKS ON, 5 CLICKS INCREASE INTENSITY, 7 CLICKS OFF. PAPI RYS 13 & 31 OPER CONT.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Minor
Minor
None
None
None

Runway 13/31

11802 ft. x 150 ft.
ASPH CONC
Good
NONE
HIGH

155,000lbs
200,000lbs
415,000lbs
720,000lbs
  Runway 13 Runway 31
True Heading 141°321°
Traffic Pattern Right
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 37° 23' 35"N 37° 22' 04"N
Longitude 120° 34' 51"W 120° 33' 20"W
Elevation 190' 178'
Threshold Crossing Height 75 ft. AGL 71 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights
Runway End Identifier Lights No
A110-10WHEN ATCT CLSD MAX OF 5 ACFT PMTD IN VFR TFC PAT AT ANY ONE TIME AND 2000 FT CIG AND 3 MIS VIS RCMDD.
A110-11FOR CD WHEN ATCT IS CLSD CTC NORCAL APCH AT 916-361-0516.
A110-12TWY B CLSD TO ACFT GTR THAN 30000 LBS.
A110-2RY 13/31 180 DEGREE TURNS PROHIBITIED.
A110-3FOR AIRPORT INFO 209-385-7686.
A110-4RY 31 WILL BE THE DESIGNATED CALM WIND RY (WIND 5 KNOTS OR LESS).
A110-7OPPOSITE END OF RY NOT VISIBLE ON TKOF. WHEN ATCT CLSD OPPOSITE DIRECTION TAKEOFFS AND LANDINGS ARE NOT AUTHORIZED.
A110-9CIVILIAN AND MILITARY TRAINING MAY OCCASIONALLY CAUSE PATTERN CONGESTION.
CASTLE (ICAO: KMER, IATA: MER) is a public airport located in ATWATER, CA.
