iFlightPlanner



...

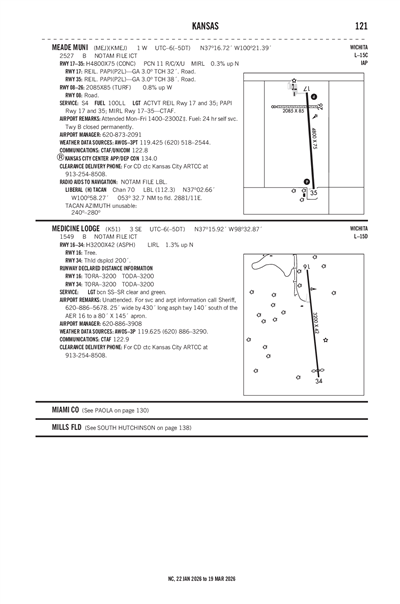

MEADE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMEJ
ICAO KMEJLocal MEJ
MEADE MUNI
PublicPUB

1 miles W of MEADE, KS, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 16' 43"N 100° 21' 23"W
Elevation
2527' MSL
Pattern Alt
3527' MSL
Mag Variation
5°E
Declination
8°E
Fuel
100LL
FSS
WICHITA (ICT)
Sectional
WICHITA
ARTCC
KANSAS CITY (ZKC)
Data Effective
2/19/26-3/19/26
K19S (26nm) IFR
9:55 PM CST
Mist
Broken 600'
4sm
35°F
35°F
30.15"Hg
Calm
AO2 T00170016
METAR K19S 040355Z AUTO 00000KT 4SM BR BKN006 02/02 A3015 RMK AO2 T00170016
+ Add Your Business

KMEJ FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 119.425
(620) 518-2544

Common

CTAF 122.8
ACTVT REIL RWY 17 & 35; PAPI RWY 17 & 35; MIRL RWY 17/35 - CTAF.
UNICOM 122.8

Center

KANSAS CITY CENTER 134.0
LOW, APCH/DEP CTL SVC PRVDD BY KANSAS CITY ARTCC (ZKC) ON FREQS 134.0/257.625 (LIBERAL RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KDDC (35nm)
Tue, 3/3 9:43 PM CST
Tue, 3/3 10:00 PM CST - Wed, 3/4 6:00 PM CST
LIFR
10:00 PM CST - 1:00 AM CST
Mist
Overcast 2,200'
Broken 400'
3sm
040° 8kts
IFR
1:00 AM CST - 9:00 AM CST
Mist
Overcast 700'
1sm
360° 6kts
VFR
9:00 AM CST - 6:00 PM CST
Few 4,500'
6sm
350° 6kts
TAF KDDC 040343Z 0404/0424 04008KT 3SM BR BKN004 OVC022
   FM040700 36006KT 1SM BR OVC007
   FM041500 35006KT P6SM FEW045
KMEJ
No NOTAM Available
No
MON-FRI 0800-1700
CITY OF MEADE
132 SOUTH FOWLER PO BOX 338
MEADE, KS 67864
Phone: 620-873-2091
DEAN CORDES
132 SOUTH FOWLER PO BOX 338
MEADE, KS 67864
Phone: 620-873-2091
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
ICT
--
ACTVT REIL RWY 17 & 35; PAPI RWY 17 & 35; MIRL RWY 17/35 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
Major
Major
None
None
Crop Dusting
Pilot Instruction

Runway 08/26

2085 ft. x 85 ft.
TURF
Good
NONE


--
--
--
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition GOOD GOOD
Latitude 37° 16' 55"N 37° 16' 55"N
Longitude 100° 21' 42"W 100° 21' 16"W
Elevation 2,527' 2,511'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

4800 ft. x 75 ft.
CONC
Fair
NONE
MED
11/R/C/X/U
--
--
--
--
  Runway 17 Runway 35
True Heading 176°356°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 37° 17' 02"N 37° 16' 15"N
Longitude 100° 21' 23"W 100° 21' 19"W
Elevation 2,518' 2,504'
Threshold Crossing Height 32 ft. AGL 38 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A11CITY ADMINISTRATOR/AIRPORT MGR.
A110-4TWY 'B' CLSD PERMLY.
A110-5FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.
A16CRAIG STRATTON, BRINGHAM FLYING SVC-FBO 620-873-5191.
A70-100LL24 HR SELF SVC.
A81-APTACTVT REIL RWY 17 & 35; PAPI RWY 17 & 35; MIRL RWY 17/35 - CTAF.
E111PRVDD APCH TO EACH RWY IS MAINTD FOR A MIN 20:1 GLIDE SLOPE AND THE TRSNL SFC BE MAINTD FOR A 7:1 SLOPE.
MEADE MUNI (ICAO: KMEJ, IATA: MEJ) is a public airport located in MEADE, KS, US.
