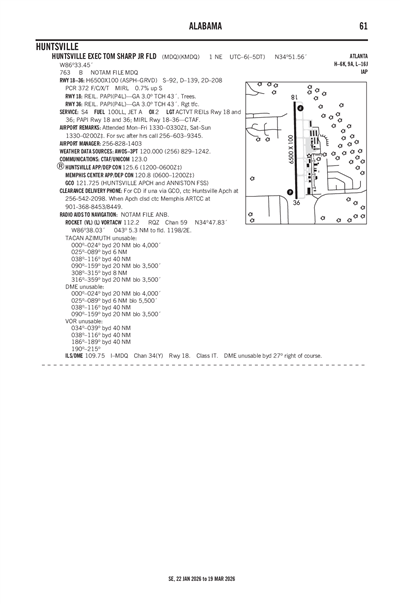

HUNTSVILLE EXEC TOM SHARP JR FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMDQ
ICAO KMDQLocal MDQ
HUNTSVILLE EXEC TOM SHARP JR FLD
PublicPUB

1 miles NE of HUNTSVILLE, AL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 51' 34"N 86° 33' 27"W
Elevation
763' MSL
Pattern Alt
1763' MSL
Mag Variation
4°W
Declination
4°W
Fuel
JET A, 100LL
FSS
ANNISTON (ANB)
Sectional
ATLANTA
ARTCC
MEMPHIS (ZME)
Data Effective
2/19/26-3/19/26
KMDQ VFR
4:55 AM CST
Overcast 5,000'
10sm
59°F
54°F
30.25"Hg
140° 9kts
A02 T01490121
METAR KMDQ 041055Z AUTO 14009KT 10SM OVC050 15/12 A3025 RMK A02 T01490121
+ Add Your Business

KMDQ FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 120.0
(256) 829-1242

Common

CTAF 123.0
ACTVT REILS RWY 18 & 36; PAPI RWY 18 & 36; MIRL RWY 18/36 - CTAF.
UNICOM 123.0

Approach

HUNTSVILLE APPROACH 125.6

Departure

HUNTSVILLE DEPARTURE 125.6

Center

HUNTSVILLE CENTER 120.8
LOW, APCH/DEP SVC PRVDD BY MEMPHIS ARTCC ON FREQS 120.8/307.0 (HUNTSVILLE RCAG) WHEN HUNTSVILLE APCH CTL CLSD.

Flight Service

Ground Communication Outlet 121.725
GCO AVBL ON FREQ 121.725 THRU HUNTSVILLE APCH & ANNISTON FSS.

Terminal Area Forecast

KHUA (13nm)
Tue, 3/3 10:15 PM CST
Tue, 3/3 10:00 PM CST - Wed, 3/4 8:00 PM CST
VFR
10:00 PM CST - 2:00 AM CST
Broken 25,000'
6sm
30.21"Hg
150° 12kts
MVFR
Becoming 2:00 AM CST - 7:00 AM CST
Overcast 2,000'
Broken 1,200'
6sm
30.21"Hg
170° 6kts
IFR
Becoming 7:00 AM CST - 11:00 AM CST
Mist
Overcast 4,500'
Broken 1,500'
Scattered 1,000'
1.99sm
30.27"Hg
VRB° 6kts
VFR
Becoming 11:00 AM CST - 8:00 PM CST
Scattered 5,000'
6sm
30.27"Hg
170° 9kts
TAF AMD KHUA 040415Z 0404/0502 15012KT 9999 BKN250 QNH3021INS
   BECMG 0408/0409 17006KT 9999 BKN012 OVC020 QNH3022INS
   BECMG 0413/0414 VRB06KT 3200 BR SCT010 BKN015 OVC045 QNH3026INS
   BECMG 0417/0418 17009KT 9999 NSW SCT050 QNH3026INS TX22/0419Z TN14/0410Z LAST NO AMDS AFT 0404 NEXT 0412
KMDQ
EffectiveExpiresCategoryNOTAM
Domestic
3/4/26
1400Z
3/6/26
2200Z
!MDQ 03/003 MDQ AIRSPACE UAS WI AN AREA DEFINED AS .5NM RADIUS OF 344717N0863340W (4.5NM S MDQ) SFC-700FT AGL DLY 1400-2200 2603041400-2603062200
3/2/26
1504Z
6/30/26
1504Z
!MDQ 03/001 MDQ OBST TOWER LGT (ASR 1224724) 345315.50N0862545.50W (6.6NM ENE MDQ) 1059.7FT (258.9FT AGL) U/S 2603021504-2606301504
2/10/26
1400Z
5/9/26
2300Z
Runway!MDQ 02/004 MDQ RWY 18/36 WIP 500FT W 2602101400-2605092300
FDC
10/8/25
1357Z
!FDC 5/7906 MDQ IAP HUNTSVILLE EXEC TOM SHARP JR FLD, HUNTSVILLE, AL.
RNAV (GPS) RWY 36, AMDT 1C...
RWY 36 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED.
2510081357-2710081357EST
10/1/25
1825Z
!FDC 5/4027 MDQ IAP HUNTSVILLE EXEC TOM SHARP JR FLD, HUNTSVILLE, AL.
ILS OR LOC RWY 18, AMDT 1C...
S-LOC 18 CAT C/D VISIBILITY 1 3/8 SM.
2510011825-2710012355EST
No
MON-FRI 0730-2130
SAT-SUN 0730-2000
FOR SVC AFT HRS CALL 256-603-9345.
MADISON CO EXEC ARPT AUTH
PO BOX 110
MERIDIANVILLE, AL 35759
Phone: 256-828-3883
RAY MEYER
360 CLYDE SHELTON DRIVE
MERIDIANVILLE, AL 35759
Phone: 256-828-1403
ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF
MDQ
--
ACTVT REILS RWY 18 & 36; PAPI RWY 18 & 36; MIRL RWY 18/36 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
Low Pressure
Pilot Instruction
Aircraft Rental

Runway 18/36

6500 ft. x 100 ft.
ASPH
Fair
GRVD
MED

92,000lbs
139,000lbs
208,000lbs
--
  Runway 18 Runway 36
True Heading 181°1°
Traffic Pattern Left Right
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 34° 52' 06"N 34° 51' 02"N
Longitude 86° 33' 26"W 86° 33' 28"W
Elevation 719' 763'
Threshold Crossing Height 43 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A11TOM SHARP.
A110-1GCO AVBL ON FREQ 121.725 THRU HUNTSVILLE APCH & ANNISTON FSS.
A110-2FOR CD IF UNA VIA GCO, CTC HUNTSVILLE APCH AT 256-542-2098. WHEN APCH CLSD CTC MEMPHIS ARTCC AT 901-368-8453/8449.
A17-M1FOR SVC AFT HRS CALL 256-603-9345.
A39-18/36PCR VALUE: 372/F/C/X/T
A81-APTACTVT REILS RWY 18 & 36; PAPI RWY 18 & 36; MIRL RWY 18/36 - CTAF.
HUNTSVILLE EXEC TOM SHARP JR FLD (ICAO: KMDQ, IATA: MDQ) is a public airport located in HUNTSVILLE, AL, US.
