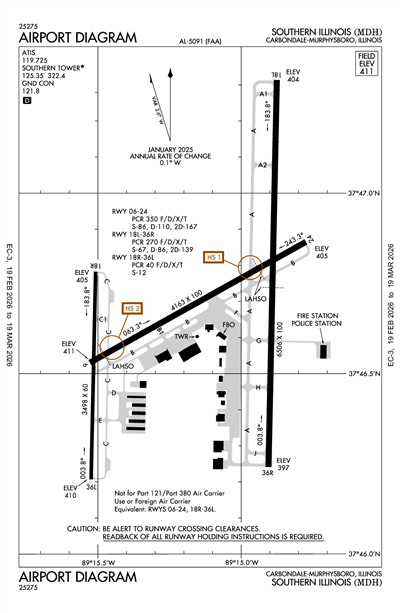

SOUTHERN ILLINOIS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMDH
ICAO KMDHIATA MDHLocal MDH
SOUTHERN ILLINOIS
PublicPUB

3 miles NW of CARBONDALE/MURPHYSBORO, IL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 46' 41"N 89° 15' 07"W
Elevation
411' MSL
Pattern Alt
1411' MSL
Mag Variation
2°W
Declination
1°W
Fuel
JET A, 100LL
FSS
SAINT LOUIS (STL)
Sectional
ST LOUIS
ARTCC
KANSAS CITY (ZKC)
Data Effective
2/19/26-3/19/26
KMDH VFR
2:52 AM CST
Light Rain
Broken 11,000'
Scattered 9,000'
Few 6,000'
10sm
58°F
56°F
30.07"Hg
190° 3kts
AO2 RAB49 SLP179 P0000 60000 T01440133 50003
METAR KMDH 040852Z AUTO 19003KT 10SM -RA FEW060 SCT090 BKN110 14/13 A3007 RMK AO2 RAB49 SLP179 P0000 60000 T01440133 50003
+ Add Your Business

KMDH FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 119.725
ASOS (618) 529-1821

Common

CTAF 125.35
ACTVT MALSR RWY 18L; VASI RWY 06; PAPI RWY 24 & 36R; MIRL RWY 06/24; HIRL RWY 18L/36R - CTAF. WHEN ATCT CLSD HIRL RWY 18L/36R PRESET MED INTST; INCREASE INTST - CTAF. WHEN ATCT CLSD 18R/36L LTG BY REQUEST ONLY - CALL 618-534-3662.
UNICOM 122.95

Ground

SOUTHERN GROUND 121.8
0700-2100

Tower

SOUTHERN TOWER 125.35
0700-2100
SOUTHERN TOWER 126.25
0700-2100, Secondary

Center

KANSAS CITY CENTER 127.475
LOW, APCH/DEP SVC PRVDD BY KANSAS CITY ARTCC ON FREQS 127.475/346.275 (MARION RCAG).

Terminal Area Forecast

KCGI (37nm)
Tue, 3/3 11:20 PM CST
Wed, 3/4 12:00 AM CST - Thu, 3/5 12:00 AM CST
VFR
12:00 AM CST - 8:00 AM CST
Broken 4,500'
6sm
190° 7kts
VFR
8:00 AM CST - 12:00 PM CST
Light Showers and Rain
No Clouds
N/A
Calm
MVFR
8:00 AM CST - 12:00 PM CST
Showers in vicinity
Broken 2,000'
6sm
200° 9kts
MVFR
12:00 PM CST - 3:00 PM CST
Light Thunderstorm and Rain
Broken 2,500'
5sm
200° 11kts
Gusts 19kts
MVFR
3:00 PM CST - 6:00 PM CST
Thunderstorm in vicinity
Broken 3,000'
6sm
200° 10kts
Gusts 18kts
MVFR
6:00 PM CST - 12:00 AM CST
Light Thunderstorm and Rain
Broken 2,500'
4sm
190° 8kts
IFR
Temporary 9:00 PM CST - 12:00 AM CST
Thunderstorm and Rain and Mist
Overcast 2,000'
2sm
Calm
TAF KCGI 040520Z 0406/0506 19007KT P6SM BKN045
   FM041400 20009KT P6SM VCSH BKN020
   PROB30 0414/0418 -SHRA
   FM041800 20011G19KT 5SM -TSRA BKN025CB
   FM042100 20010G18KT P6SM VCTS BKN030CB
   FM050000 19008KT 4SM -TSRA BKN025CB
   TEMPO 0503/0506 2SM TSRA BR OVC020CB
KMDH
EffectiveExpiresCategoryNOTAM
Domestic
3/4/26
1700Z
3/4/26
1900Z
!MDH 03/002 MDH SVC ATIS 119.275 U/S 2603041700-2603041900
3/2/26
1329Z
3/27/26
2200Z
!MDH 03/001 MDH AD AP WINDCONE FOR RWY 36R LGT U/S 2603021329-2603272200
2/25/26
1702Z
!MDH 02/018 MDH NAV ILS RWY 18L OM U/S 2602251702-2605272111EST
2/10/26
1419Z
Runway!MDH 02/006 MDH RWY 06 RWY END ID LGT U/S 2602101419-PERM
1/24/26
1737Z
4/25/26
0500Z
!MDH 01/013 MDH OBST TOWER LGT (ASR 1263332) 374835.10N0891224.10W (2.9NM NE MDH) 611.9FT (237.9FT AGL) U/S 2601241737-2604250500
2/3/25
1916Z
Runway!MDH 02/004 MDH RWY 24 RWY END ID LGT U/S 2502031916-PERM
FDC
3/4/26
1400Z
3/10/26
1930Z
!FDC 6/2809 MDH IAP SOUTHERN ILLINOIS, CARBONDALE/MURPHYSBORO, IL.
ILS OR LOC RWY 18L, AMDT 13B...
NDB RWY 18L, AMDT 13B...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
ENL VORTAC OUT OF SERVICE. 2603041400-2603101930EST
Yes
ALL
SOUTHERN ILLINOIS ARPT AUTH
PO BOX 1086
CARBONDALE, IL 62903
Phone: 618-529-1721
ALYSSA CONNELL
P O BOX 1086
CARBONDALE, IL 62903
Phone: 618-529-1721
SAINT LOUIS FSS (STL)
Toll Free: 1-800-WX-BRIEF
MDH
--
ACTVT MALSR RWY 18L; VASI RWY 06; PAPI RWY 24 & 36R; MIRL RWY 06/24; HIRL RWY 18L/36R - CTAF. WHEN ATCT CLSD HIRL RWY 18L/36R PRESET MED INTST; INCREASE INTST - CTAF. WHEN ATCT CLSD 18R/36L LTG BY REQUEST ONLY - CALL 618-534-3662.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Ambulance
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 06/24

4163 ft. x 100 ft.
ASPH
Fair
PFC
MED

86,000lbs
110,000lbs
167,000lbs
--
  Runway 06 Runway 24
True Heading 61°241°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 37° 46' 32"N 37° 46' 52"N
Longitude 89° 15' 32"W 89° 14' 46"W
Elevation 411' 405'
Threshold Crossing Height 48 ft. AGL 25 ft. AGL
Visual Glide Path Angle 3.5° 3.5°
Visual Slope Indicator V4L P4R
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 18L/36R

6506 ft. x 100 ft.
ASPH
Excellent
GRVD
HIGH

--
--
--
--
  Runway 18L Runway 36R
True Heading 181°1°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 37° 47' 19"N 37° 46' 15"N
Longitude 89° 14' 53"W 89° 14' 54"W
Elevation 404' 397'
Threshold Crossing Height -- 45 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes

Runway 18R/36L

3498 ft. x 60 ft.
ASPH
Excellent
NONE
MED

--
--
--
--
  Runway 18R Runway 36L
True Heading 181°1°
Traffic Pattern
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 37° 46' 47"N 37° 46' 12"N
Longitude 89° 15' 31"W 89° 15' 31"W
Elevation 405' 410'
Threshold Crossing Height 27 ft. AGL 25 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator PSIL PSIL
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1BIRDS ON & INVOF ARPT.
A110-2HIGH STUDENT TRNG ACTVTY.
A110-3RWY 6 & RWY 18R-36L INTERSECT; VERIFY CORRECT COMPASS HDG FOR RWY 6 DEP.
A26-CCLSD TO SKED ACR OPS GTR THAN 9 PSGR SEATS. UNSKED ACR OPS GTR THAN 30 PSGR SEATS RQR 24 HR PPR - CALL AMGR MON-FRI.
A30-06/24RWY 06/24 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A30-18R/36LRWY 18R/36L NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A35-06/24RSTRD TO ACFT 12500 LBS OR LESS UNLESS PPR WITH ATCT.
A39-06/24PCR VALUE: 350/F/D/X/T
A39-18L/36RPCR VALUE: 270/F/D/X/T
A39-18R/36LPCR VALUE: 40/F/D/X/T
A43-18RUNUSBL BYD 6 DEG RIGHT OF COURSE. PVASI OTS INDEF.
A52-36R39 FT MKD PLINE 1872 FT FM RWY 192 FT L OF CNTRLN. APCH RATIO 42:1.
A81-APTACTVT MALSR RWY 18L; VASI RWY 06; PAPI RWY 24 & 36R; MIRL RWY 06/24; HIRL RWY 18L/36R - CTAF. WHEN ATCT CLSD HIRL RWY 18L/36R PRESET MED INTST; INCREASE INTST - CTAF. WHEN ATCT CLSD 18R/36L LTG BY REQUEST ONLY - CALL 618-534-3662.
SOUTHERN ILLINOIS (ICAO: KMDH, IATA: MDH) is a public airport located in CARBONDALE/MURPHYSBORO, IL, US.
