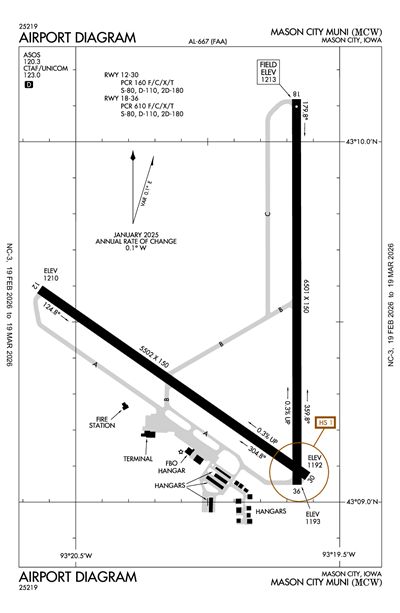

MASON CITY MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMCW
ICAO KMCWIATA MCWLocal MCW
MASON CITY MUNI
PublicPUB

5 miles W of MASON CITY, IA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 09' 28"N 93° 19' 52"W
Elevation
1213' MSL
Pattern Alt
2013' MSL
Mag Variation
0°
Declination
0°
Fuel
JET A, 100LL
FSS
FORT DODGE (FOD)
Sectional
OMAHA
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
2/19/26-3/19/26
KMCW LIFR
10:53 PM CST
Freezing Fog
Obscured 100'
0.25sm
28°F
28°F
30.20"Hg
290° 4kts
AO2 SLP234 T10221022
METAR KMCW 040453Z AUTO 29004KT 1/4SM FZFG VV001 M02/M02 A3020 RMK AO2 SLP234 T10221022
+ Add Your Business

KMCW FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 120.3
(641) 255-0381

Common

CTAF 123.0
ACTVT HIRL RY 18/36; MIRL RY 12/30; REIL RY 12; MALS RY 18; MALSR RY 36; VASI RY 18; PAPI RYS 12; 30; & 36 - CTAF. ALL PAPIS ON DURG DALGT HRS.; DUE TO RY & TWY END ELEV DIFFERENTIALS & ACFT HEIGHT; PILOTS MAY LOSE LINE OF SIGHT OF OTHER ACFT ON OPPOSING RY & TWY ENDS. ALL DEP/ARR ACFT USE CTAF.
UNICOM 123.0

Center

MINNEAPOLIS CENTER 127.3
LOW, APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC ON FREQS 127.3/257.675 (MASON CITY RCAG).

Terminal Area Forecast

KMCW
Tue, 3/3 7:50 PM CST
Tue, 3/3 8:00 PM CST - Wed, 3/4 6:00 PM CST
LIFR
8:00 PM CST - 2:00 AM CST
Fog
Broken 200'
0.5sm
VRB° 4kts
LIFR
2:00 AM CST - 6:00 AM CST
Fog
Overcast 100'
0.25sm
060° 2kts
LIFR
6:00 AM CST - 9:00 AM CST
Mist
Broken 300'
2sm
Calm
MVFR
9:00 AM CST - 6:00 PM CST
Broken 1,600'
6sm
VRB° 3kts
TAF KMCW 040150Z 0402/0424 VRB04KT 1/2SM FG BKN002
   FM040800 06002KT 1/4SM FG OVC001
   FM041200 00000KT 2SM BR BKN003
   FM041500 VRB03KT P6SM BKN016
KMCW
EffectiveExpiresCategoryNOTAM
Domestic
2/20/26
1957Z
4/20/26
2359Z
!MCW 02/122 MCW OBST TOWER LGT (ASR 1017740) 430717.90N0931142.20W (6.3NM ESE MCW) 1491.1FT (312.0FT AGL) U/S 2602201957-2604202359
1/7/26
1100Z
3/1/26
2359Z
!MCW 01/024 MCW AIRSPACE UAS WI AN AREA DEFINED AS 1NM RADIUS OF 430726N0932140W (2.7NM S MCW) SFC-40FT AGL DLY 1100-2359 2601071100-2603012359
1/6/26
0529Z
Runway!MCW 01/016 MCW RWY 36 RAI LGT U/S 2601060529-2603102000EST
FDC
1/6/26
1941Z
!FDC 6/1006 MCW IAP MASON CITY MUNI, MASON CITY, IA.
ILS OR LOC RWY 36, AMDT 7...
AUTOPILOT COUPLED APPROACH NA BELOW 1276FT MSL.
2601061941-2801060800EST
12/30/24
2226Z
!FDC 4/2002 MCW IAP MASON CITY MUNI, MASON CITY, IA.
RNAV (GPS) RWY 12, ORIG...
PROCEDURE NA AT NIGHT.
2412302226-2612302226EST
No
0700-1700
FOR SVC OR FUEL AFT HRS PPR CALL 641-430-9898.
CITY OF MASON CITY
10 1ST STREET NW
MASON CITY, IA 50401
Phone: 641-421-3397
DAVID K. SIMS
9184 - 265TH STREET
CLEAR LAKE, IA 50428
Phone: 641-421-3397
FORT DODGE FSS (FOD)
Toll Free: 1-800-WX-BRIEF
MCW
--
ACTVT HIRL RY 18/36; MIRL RY 12/30; REIL RY 12; MALS RY 18; MALSR RY 36; VASI RY 18; PAPI RYS 12; 30; & 36 - CTAF. ALL PAPIS ON DURG DALGT HRS.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental

Runway 12/30

5502 ft. x 150 ft.
ASPH
Excellent
GRVD
MED

80,000lbs
110,000lbs
180,000lbs
--
  Runway 12 Runway 30
True Heading 125°305°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 43° 09' 35"N 43° 09' 04"N
Longitude 93° 20' 38"W 93° 19' 37"W
Elevation 1,210' 1,192'
Threshold Crossing Height 39 ft. AGL 51 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes

Runway 18/36

6501 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

80,000lbs
110,000lbs
180,000lbs
--
  Runway 18 Runway 36
True Heading 180°360°
Traffic Pattern Left Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 43° 10' 07"N 43° 09' 03"N
Longitude 93° 19' 40"W 93° 19' 40"W
Elevation 1,213' 1,193'
Threshold Crossing Height 39 ft. AGL 62 ft. AGL
Visual Glide Path Angle 3° 2.9°
Visual Slope Indicator V4L P4L
Approach Lights MALS MALSR
Centerline Lights
Runway End Identifier Lights
A110-1BIRD ACTVTY ON & INVOF ARPT.
A110-2LANDING FEE FOR ALL COMMERCIAL OPERATED ACFT.
A110-3DUE TO RY & TWY END ELEV DIFFERENTIALS & ACFT HEIGHT; PILOTS MAY LOSE LINE OF SIGHT OF OTHER ACFT ON OPPOSING RY & TWY ENDS. ALL DEP/ARR ACFT USE CTAF.
A110-4RY 30 IS CALM WIND RY.
A110-6AIRPORT OPERATIONS 641-430-0980.
A110-7FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A12CITY HALL ADDRESS
A15AIRPORT ADDRESS
A17-M1FOR SVC OR FUEL AFT HRS PPR CALL 641-430-9898.
A26INDEX C AVAILABLE PPR CTC ARPT OPS 641-430-0980.
A39-12/30PCR VALUE: 160/F/C/X/T
A39-18/36PCR VALUE: 610/F/C/X/T
A81-APTACTVT HIRL RY 18/36; MIRL RY 12/30; REIL RY 12; MALS RY 18; MALSR RY 36; VASI RY 18; PAPI RYS 12; 30; & 36 - CTAF. ALL PAPIS ON DURG DALGT HRS.
MASON CITY MUNI (ICAO: KMCW, IATA: MCW) is a public airport located in MASON CITY, IA, US.
