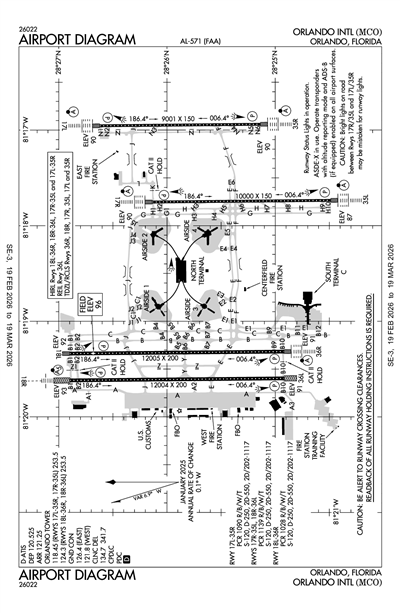

ORLANDO INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMCO
ORLANDO INTL
PublicPUB

6 miles SE of ORLANDO, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
28° 25' 46"N 81° 18' 32"W
96' MSL
1096' MSL
07W
JET A, 100LL
SAINT PETERSBURG (PIE)
JACKSONVILLE
JACKSONVILLE (ZJX)
4/17/25-5/15/25
KMCO VFR
5:53 PM EST
Overcast 30,000'
Few 10,000'
Few 5,000'
10sm
75°F
61°F
30.11"Hg
120° 10kts
METAR KMCO 082253Z 12010KT 10SM FEW050 FEW100 OVC300 24/16 A3011
+ Add Your Business

KMCO FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Terminal Area Forecast

KMCO
Thu, 1/8 3:58 PM EST
Thu, 1/8 4:00 PM EST - Fri, 1/9 7:00 PM EST
VFR
4:00 PM EST - 7:00 PM EST
Broken 25,000'
Few 7,000'
Few 4,500'
6sm
130° 6kts
VFR
7:00 PM EST - 1:00 AM EST
Scattered 25,000'
Scattered 6,000'
6sm
100° 5kts
VFR
1:00 AM EST - 9:00 AM EST
Broken 4,000'
Scattered 1,000'
6sm
140° 3kts
MVFR
Temporary 4:00 AM EST - 8:00 AM EST
Mist
Scattered 300'
3sm
Calm
VFR
9:00 AM EST - 7:00 PM EST
Scattered 3,000'
6sm
140° 7kts
TAF KMCO 082058Z 0821/0924 13006KT P6SM FEW045 FEW070 BKN250
   FM090000 10005KT P6SM SCT060 SCT250
   FM090600 14003KT P6SM SCT010 BKN040
   TEMPO 0909/0913 3SM BR SCT003
   FM091400 14007KT P6SM SCT030
KMCO
EffectiveExpiresCategoryNOTAM
Domestic
1/11/26
1200Z
1/11/26
1800Z
Runway!MCO 01/034 MCO RWY 17R/35L RWY STATUS LGT SYSTEM U/S 2601111200-2601111800
1/9/26
1300Z
1/9/26
2000Z
Runway!MCO 01/038 MCO RWY 18L PAPI U/S 2601091300-2601092000
1/9/26
1300Z
1/9/26
1800Z
!MCO 01/037 MCO NAV ILS RWY 35R SPECIAL AUTH CAT I NA 2601091300-2601091800
1/9/26
1300Z
1/9/26
1800Z
!MCO 01/036 MCO NAV ILS RWY 35R CAT II NA 2601091300-2601091800
1/9/26
1300Z
1/9/26
1800Z
Runway!MCO 01/035 MCO RWY 35R ALS U/S 2601091300-2601091800
1/8/26
1500Z
1/13/26
1900Z
!MCO 01/029 MCO OBST RIG (ASN UNKNOWN) 282604N0811809W (0.45NM NE MCO) 153FT (60FT AGL) FLAGGED DLY 1500-1900 2601081500-2601131900
1/8/26
1200Z
1/8/26
2200Z
!MCO 01/019 MCO OBST CRANE (ASN 2023-ASO-3902-NRA) 282424N0811851W (1.4NM S MCO) 141FT (51FT AGL) FLAGGED 2601081200-2601082200
1/7/26
1900Z
1/7/26
2200Z
!MCO 01/001 MCO SVC MBST/WS DETECTION SYSTEM NOT AVBL 2601071900-2601072200
1/7/26
1400Z
1/7/26
1900Z
!MCO 01/039 MCO NAV ILS RWY 36R DME U/S 2601071400-2601071900
1/7/26
1300Z
1/7/26
1800Z
!MCO 01/027 MCO NAV ILS RWY 36R CAT II NA 2601071300-2601071800
1/7/26
1300Z
1/7/26
1820Z
Runway!MCO 01/025 MCO RWY 36R PAPI U/S 2601071300-2601071820
1/7/26
1300Z
1/7/26
1800Z
Runway!MCO 01/024 MCO RWY 36R ALS U/S 2601071300-2601071800
1/6/26
0300Z
1/7/26
1000Z
!MCO 01/008 MCO OBST RIG (ASN UNKNOWN) 282555N0811818W (0.25NM NE MCO)
155FT (60FT AGL) FLAGGED AND LGTD DLY 0300-1000 2601060300-2601071000
1/5/26
1700Z
1/14/26
2200Z
!MCO 01/028 MCO TWY H2, H3, H5, H6, H7, H8, TWY H9 BTN RWY 17R/35L AND TWY H CLSD LGTD AND BARRICADED 2601051700-2601142200
1/5/26
1700Z
1/24/26
2200Z
!MCO 01/023 MCO TWY H10 BTN APCH END RWY 35L AND TWY G CLSD LGTD AND BARRICADED 2601051700-2601242200
1/5/26
1700Z
1/14/26
2200Z
!MCO 01/022 MCO TWY H BTN TWY F AND TWY H10 CLSD LGTD AND BARRICADED 2601051700-2601142200
1/5/26
1700Z
1/14/26
2200Z
!MCO 01/021 MCO TWY G BTN TWY F AND TWY H10 CLSD LGTD AND BARRICADED 2601051700-2601142200
1/5/26
1700Z
1/14/26
2200Z
Runway!MCO 01/020 MCO RWY 17R/35L CLSD 2601051700-2601142200
1/5/26
1300Z
1/14/26
2300Z
Runway!MCO 12/189 MCO RWY 17R PAPI U/S 2601051300-2601142300
1/5/26
1300Z
1/14/26
2300Z
Runway!MCO 12/187 MCO RWY 35L PAPI U/S 2601051300-2601142300
1/5/26
1300Z
1/14/26
2300Z
Runway!MCO 12/186 MCO RWY 17R ALS U/S 2601051300-2601142300
1/5/26
1300Z
1/14/26
2300Z
!MCO 12/185 MCO NAV ILS RWY 17R U/S 2601051300-2601142300
1/5/26
1300Z
1/14/26
2300Z
!MCO 12/184 MCO NAV ILS RWY 35L U/S 2601051300-2601142300
1/5/26
1200Z
1/16/26
2200Z
!MCO 12/183 MCO OBST CRANE (ASN 2024-ASO-8790-OE) 282654N0811553W (2.6NM ENE MCO) 297FT (182FT AGL) FLAGGED AND LGTD 2601051200-2601162200
1/2/26
1826Z
!MCO 01/010 MCO COM REMOTE TRANS/REC 119.775 U/S 2601021826-2601092000EST
1/2/26
1720Z
!MCO 01/009 MCO COM REMOTE TRANS/REC 125.225 U/S 2601021720-2601092000EST
12/23/25
1414Z
3/1/26
2000Z
!MCO 12/169 MCO OBST TOWER LGT (ASN 2024-ASO-7868-NRA) 282505N0811931W (1.1NM SW MCO) 133FT (45FT AGL) U/S 2512231414-2603012000
12/20/25
0321Z
1/30/26
2200Z
!MCO 12/160 MCO TWY E1 CL MARKINGS BTN TWY B9 AND TWY F NOT STD 2512200321-2601302200
12/11/25
1227Z
6/30/26
2359Z
!MCO 12/075 MCO TWY B SOUTH OF TWY B12 CLSD LGTD AND BARRICADED 2512111227-2606302359
12/11/25
1227Z
6/30/26
2359Z
!MCO 12/074 MCO TWY A BTN WEST RAMP SOUTH END AND TWY B10 NONMOVEMENT AREA 2512111227-2606302359
12/11/25
1226Z
6/30/26
2359Z
!MCO 12/073 MCO APRON SOUTH TERMINAL C RAMP WIP CONST ADJ S SIDE LGTD AND BARRICADED 2512111226-2606302359
12/9/25
1500Z
1/30/26
2359Z
!MCO 12/058 MCO TWY H6, H7, H8 BTN TWY G AND TWY H CL MARKING NOT STD 2512091500-2601302359
12/4/25
1458Z
1/31/26
2359Z
Runway!MCO 12/037 MCO RWY 18R/36L CL MARKINGS OBSC 2512041458-2601312359
11/27/25
1837Z
5/20/26
2000Z
!MCO 11/198 MCO NAV ILS RWY 36L LOC/GP/DME U/S 2511271837-2605202000
11/24/25
1700Z
7/31/26
2359Z
Runway!MCO 11/178 MCO RWY 36L BLAST PAD SFC MARKING NOT STD 2511241700-2607312359
11/24/25
1540Z
12/31/26
2359Z
!MCO 11/189 MCO TWY F BTN TWY E2 AND TWY E4 CLSD TO ACFT WINGSPAN
MORE THAN 171FT WITH TAX SPEED MORE THAN 9KT 2511241540-2612312359
11/24/25
1533Z
12/31/26
2359Z
!MCO 11/188 MCO TWY E BTN TWY E2 AND TWY E4 CLSD TO ACFT WINGSPAN
MORE THAN 171FT WITH TAXI MORE THAN 9KT 2511241533-2612312359
11/18/25
1513Z
1/30/26
2359Z
Runway!MCO 11/117 MCO RWY 18L/36R CL MARKINGS OBSC 2511181513-2601302359
11/17/25
2027Z
3/1/26
0445Z
!MCO 11/097 MCO TWY E BTN TWY E2 AND TWY E4 CLSD TO ACFT WINGSPAN
MORE THAN 214FT AND TAIL HGT MORE THAN 66FT 2511172027-2603010445
11/17/25
2022Z
3/1/26
0445Z
!MCO 11/094 MCO TWY F BTN TWY E2 AND TWY E4 CLSD TO ACFT WINGSPAN
MORE THAN 214FT AND TAIL HGT MORE THAN 66FT 2511172022-2603010445
11/16/25
0052Z
1/19/26
2359Z
Runway!MCO 11/084 MCO RWY 17L/35R CL MARKINGS OBSC 2511160052-2601192359
FDC
1/7/26
1400Z
!FDC 6/1122 MCO IAP ORLANDO INTL, ORLANDO, FL.
ILS OR LOC RWY 36R, AMDT 11A...
S-LOC RWY 36R MINIMUMS NA. UVEKE FIX MINIMUMS NA. VDP NA,
OJP DME OUT OF SERVICE. 2601071400-2601142339EST
11/27/25
0905Z
!FDC 5/1030 MCO IAP ORLANDO INTL, ORLANDO, FL.
ILS OR LOC RWY 36L, ORIG ...
PROCEDURE NA 2511270905-2607061244EST
4/25/25
1030Z
3/19/26
0900Z
!FDC 5/1362 MCO STAR ORLANDO INTL ARPT, ORLANDO, FL. GTOUT ONE RNAV
ARRIVAL..CROSS NICCK AT 12000 AND 250KT. 2504251030-2603190900
3/29/24
1220Z
3/19/26
0900Z
!FDC 4/4005 MCO STAR ORLANDO INTL ARPT, ORLANDO, FL. SNFLD THREE
RNAV ARRIVAL..CROSS SNFLD AT OR ABOVE 12000. 2403291220-2603190900
Yes
ALL
GREATER ORLANDO AVIATION AUTHORITY
1 JEFF FUQUA BLVD
ORLANDO, FL 32827-4399
Phone: 407-825-2001
KEVIN J. THIBAULT, P.E.
1 JEFF FUQUA BLVD
ORLANDO, FL 32827-4399
Phone: 407-825-7445
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
MCO
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
Air Freight
Cargo Handling

Runway 17L/35R

9001 ft. x 150 ft.
CONC
Good
GRVD
HIGH
116/R/B/W/T
75,000lbs
210,000lbs
420,000lbs
900,000lbs
  Runway 17L Runway 35R
True Heading 179°359°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 28° 26' 37"N 28° 25' 08"N
Longitude 81° 16' 57"W 81° 16' 56"W
Elevation 90' 90'
Threshold Crossing Height 72 ft. AGL 73 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights ALSF2 ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 17R/35L

10000 ft. x 150 ft.
CONC
Good
GRVD
HIGH
106/R/B/W/T
75,000lbs
210,000lbs
400,000lbs
--
  Runway 17R Runway 35L
True Heading 179°359°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 28° 26' 08"N 28° 24' 29"N
Longitude 81° 17' 45"W 81° 17' 44"W
Elevation 90' 87'
Threshold Crossing Height 71 ft. AGL 72 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights ALSF2 ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 18L/36R

12005 ft. x 200 ft.
ASPH CONC
Good
GRVD
HIGH
97 /R/B/W/T
165,000lbs
200,000lbs
400,000lbs
--
  Runway 18L Runway 36R
True Heading 179°359°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 28° 26' 54"N 28° 24' 55"N
Longitude 81° 19' 20"W 81° 19' 19"W
Elevation 92' 91'
Threshold Crossing Height 71 ft. AGL 70 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 18R/36L

12004 ft. x 200 ft.
ASPH CONC
Good
GRVD
HIGH
104/R/B/W/T
100,000lbs
200,000lbs
400,000lbs
--
  Runway 18R Runway 36L
True Heading 179°359°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 28° 26' 54"N 28° 24' 55"N
Longitude 81° 19' 37"W 81° 19' 36"W
Elevation 92' 91'
Threshold Crossing Height 71 ft. AGL 69 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights Yes
A110-1BIRDS & DEER ON & INVOF ARPT.
A110-13USE CAUTION IN VCNTY OF TWY "A" ALONG WEST RAMP.
A110-14UNLESS ADV BY ATIS, DEP FLTS ON INITIAL CTC WITH GND CTL: ACFT ON WEST RAMP, AIRSIDE 1 & 3 (GATES 1-59) USE GND CTL 121.8. ACFT AT AIRSIDE 2 & 4 (GATES 60 AND HIGHER), USE GND CTL 126.4.
A110-15TWY J3 AND TWY J4 RSTD TO WINGSPAN OF LESS THAN 118 FT.
A110-16RUNWAY STATUS LIGHTS ARE IN OPERATION.
A110-17ACFT WITH WINGSPAN GREATER THAN 214 FT MUST ADHERE TO SPECIFIC RY AND TAXI ROUTES. CONTACT AIRFIELD OPS AT 407-825-2036 FOR DETAILS.
A110-18TWY A, SOUTH OF TWY A3 RSTD TO WINGSPAN OF LESS THAN 118 FT. PPR REQUIRED FOR WINGSPAN 118 FT OR GREATER.
A110-19RY 17L-35R UNLIT 0400-1100Z.
A110-20WEST RAMP CUSTOMS INSPECTION PRKG AREA RSTD TO ACFT WINGSPAN LESS THAN 118'
A110-7AVOID CONTACT WITH TAXIWAY EDGE LIGHTS; ALL AIRCRAFT DETERMINED TO BE FAA DESIGN GROUP IV AND ABOVE MUST PERFORM JUDGEMENTAL OVERSTEERING INSTEAD OF COCKPIT CENTERLINE STEERING WHEN TAXIING.
A110-8WHEN ORL ILS RY 7 AND MCO ILS RYS 17 & 18R SIMULTANEOUS OPERATIONS ARE CONDUCTED, ATC RADAR REQUIRED.
A110-9BRIGHT LGTS ON ROAD BTN RY 17R/35L AND RY 17L/35R MAY BE MISTAKEN FOR RY LGTS.
A22UPDTD PER 2021 INTERIM ALP.
A33-18L/36RCENTER 75 FOOT KEEL SECTION OF RY CONCRETE FULL LENGTH; CENTER 100 FOOT KEEL SECTION OF RY CONCRETE FIRST 1000 FT, BOTH ENDS. REST OF RY WIDTH IS ASPHALT.
A33-18R/36LCENTER 87 FOOT KEEL SECTION OF RY CONCRETE FULL LENGTH; REST OF RY WIDTH IS ASPHALT. LAST 3000 FT OF RY 18R IS CONCRETE FULL WIDTH.
ORLANDO INTL (ICAO: KMCO, IATA: MCO) is a public airport located in ORLANDO, FL.
