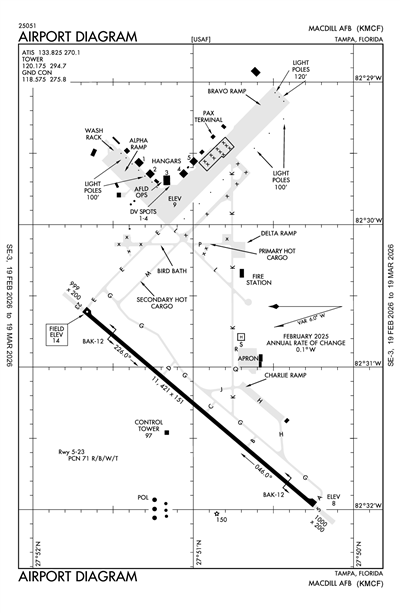

MACDILL AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMCF
ICAO KMCFIATA MCFLocal MCF
MACDILL AFB
PrivatePVT

4 miles S of TAMPA, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
27° 50' 58"N 82° 31' 16"W
Elevation
14' MSL
Pattern Alt
1014' MSL
Mag Variation
6°W
Declination
6°W
Fuel
JET A, JET A+, CILI
FSS
SAINT PETERSBURG (PIE)
Sectional
MIAMI
ARTCC
MIAMI (ZMA)
Data Effective
2/19/26-3/19/26
KMCF VFR
5:55 AM EST
Clear
10sm
65°F
64°F
30.19"Hg
070° 8kts
AO2 SLP226 T01860176
METAR KMCF 041055Z AUTO 07008KT 10SM CLR 19/18 A3019 RMK AO2 SLP226 T01860176
+ Add Your Business

KMCF FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 133.825

Ground

MAC DILL GROUND 118.575

Tower

MAC DILL TOWER 120.175

Arrival

BLFRG STAR 119.65
DADES STAR 135.5
MAATY STAR 118.8
RAYZZ STAR 118.8

Approach

TAMPA APPROACH 124.95
TAMPA APPROACH 135.5

Departure

TAMPA DEPARTURE 119.65
RWY 23
TAMPA DEPARTURE 119.9
RWY 05

Military

COMD POST 132.775
COMD POST 134.1
6 AMW, CALL LGT OPS.

Terminal Area Forecast

KMCF
Wed, 3/4 4:00 AM EST
Wed, 3/4 4:00 AM EST - Thu, 3/5 10:00 AM EST
VFR
4:00 AM EST - 3:00 AM EST
Few 4,000'
6sm
30.12"Hg
080° 9kts
IFR
Temporary 5:00 AM EST - 9:00 AM EST
Mist
Broken 500'
2.98sm
070° 6kts
VFR
Becoming 3:00 AM EST - 10:00 AM EST
Scattered 4,000'
6sm
30.15"Hg
090° 6kts
TAF KMCF 040900Z 0409/0515 08009KT 9999 FEW040 QNH3012INS
   TEMPO 0410/0414 07006KT 4800 BR BKN005
   BECMG 0508/0509 09006KT 9999 SCT040 QNH3014INS TX30/0419Z TN17/0411Z
KMCF
EffectiveExpiresCategoryNOTAM
Military
3/2/26
1839Z
3/5/26
1839Z
M0149/26 NOTAMC M0147/26
3/2/26
1838Z
3/5/26
1838Z
M0148/26 NOTAMC M0146/26
2/28/26
1943Z
3/31/26
2359Z
MEN AND EQUIPMENT LOCATED 1,430 FEET FROM RUNWAY 05 THRESHOLD IN THE RUNWAY CLEAR ZONE.(DAILY 0600-1700)
2/28/26
1917Z
5/28/26
2359Z
TaxiwayTWY GOLF CLSD BETWEEN TWY DELTA AND TWY MIKE
2/28/26
1917Z
5/28/26
2359Z
BRAVO RAMP STADIUM LIGHT, OBSTRUCTION LIGHTS LOCATED 27°50'28.0N 82°29'03.1W OTS
2/25/26
1634Z
3/25/26
2359Z
LIMITED FIGHTER TYPE AIRCRAFT GENERATION EQUIPMENT (AGE) THE FOLLOWING ITEMS ARE LIMITED IN QUANTITY: LOX/GOX CARTS, POWER CARTS, AC CARTS, AIR START CARTS DUE TO HHQ MISSIONS
2/13/26
1241Z
3/13/26
2359Z
AIRFIELD MANAGEMENT RELOCATED BACK TO HANGAR 3. FLIGHT PLANNING ROOM (COMPUTERS, PRINTERS, ECT) NOT AVAILABLE. CONTACT INFO (813)828-2929 OPT 3 OR (813)541-5552
Yes
ALL
USAF
MACDILL AFB
TAMPA, FL 33608
CHIEF OF AFLD MANAGEMENT
MACDILL AFB
TAMPA, FL 33608
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
MCF
--
HIRL RWY 5/23 OPR WHEN TWR OPN.
N/A
Yes
No
No
None
Landing Rights Airport
NOT an Airport of Entry
None
None
None
Low Pressure
None

Runway 05/23

11421 ft. x 151 ft.
ASPH
Good
GRVD
HIGH
71/R/B/W/T
--
--
--
--
  Runway 05 Runway 23
True Heading 40°220°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 27° 50' 15"N 27° 51' 41"N
Longitude 82° 31' 58"W 82° 30' 35"W
Elevation 8' 14'
Threshold Crossing Height 56 ft. AGL 56 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights No No
Runway End Identifier Lights No No

Runway H1

100 ft. x 100 ft.
CONC
Excellent
NONE


--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 27° 50' 42"N N/A
Longitude 82° 30' 47"W N/A
Elevation 10' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-18JASU: (A/M32A-86) (AM32-95) (M32A-60)
A110-19FUEL: AIR CARD RQRD FOR AVN FUEL OR U.S. CASH; CASH FUEL PPR - FUELS DSN 968-2074.
A110-20FLUID: LPOX LOX
A110-21TRAN ALERT: OPR 1100-0300Z++. LAVATORY SVC ONLY PPR. LTD TRAN PRK FOR TACTICAL ACFT; EXP SVC DELAY FOR TACTICAL ACFT. UNABLE TO SVC ACFT WITH ORDINANCE. TRAN ALERT IS CONTRACT MAINT. TRAN ACFT MUST LAND BY 0230Z++ EXC VIP. ALL FTR TYPE/TRAINER ACFT MUST LAND BY 0200Z++. NO MULTIPLE IFR/VFR APCH FOR TRAN ACFT AFTER 0230Z++. TRAN ALERT CAN SUPPORT MINIMAL TRAN ACFT FOR LCL OR OUT AND BACK TRAN FLTS WITH PRIOR APVL.
A110-23RSTD: AVOID OVFT OF ST. PETERSBURG LAND MASS BY AT LEAST 1.5 NM. PPR - BASE OPS DSN 968-2929/2350, C813-828-2350/2929, FOR PPR NR, FOR SVC AND OTHER RSTD. PPR ISSUED UP TO 7 DAYS PRIOR TO ARR. ALL ACFT DEP MACDILL AFB MUST HAVE FLP ON FILE IN AMOPS PRIOR TO TKOF.
A110-27CAUTION: ON INST APCH TO RWY 23 USE CAUTION DUR OVFT OF PETER O. KNIGHT ARPT DUE TO LGT ACFT TFC BLW APCH LEG 4 NM NE.
A110-28CAUTION: COMMERCIAL ACFT CROSS APCH TO MACDILL AFB ENROUTE TO TAMPA INTL ARPT AT AND ABV 2100 FT. ON INST APCH TO RWY 05 USE CAUTION DUR OVFT OF ALBERT WHITTED ARPT DUE TO LGT TFC BLW APCH LEG 6 NM SW. MAINT RWY AND TWY CNTRLINE WHEN EXITING RWY.
A110-29CAUTION: UNCTL VFR TFC IN VCNTY OF KMCF BLW 1200 FT.
A110-31CSTMS/AG/IMG: SEE FLIP AP/1.
A110-35AG: SEE GLOBAL HF SYSTEMS LISTING IN FIH.
A110-36RSTD: ACFT OPR RSTD DUR BIRD WATCH COND MODERATE (TKOF OR LDG PERMS ONLY WHEN DEP AND ARR RTE AVOID IDENT BIRD ACT. NO LCL IFR/VFR TFC PAT ACT) AND SEVERE (TKOF AND LDG PROH WO OG/CC APVL), CTC ATIS, TWR, COMD POST, OR BASE OPS FOR CURRENT BIRD WATCH COND.
A110-38CAUTION: NSTD OVNR MRK MACDILL AFB ON RWY 05/23 ENDS. NSTD MRKS NORTH/SOUTH RAMPS, WING-TIP OBST LINES FOR TRNG.
A110-39CAUTION: BIRDBATH ONLY USED FOR P-3, C-130, E-3A, KC-135 & B-737 ACFT NO FTR OR COPTER UNLESS APVD BY AFM.
A110-42CAUTION: BIRD HAZ; EXP HVY BIRD ACT FM 1 NOV - 28 FEB DURG PHASE II BASH PERIOD; 24 HR BIRD WATCH ALERT IN EFCT.
A110-43CAUTION: ACFT MAKING 180 DEG TURNS ON RWY USE HAMMERHEADS LAST 1000 FT AT EACH END.
A110-44TSNT AIRCREWS MAY CTC 9 OWS FOR WX BRIEF - DSN 965-0939.
A110-45RSTD: CTC BASE OPS DSN 968-2929/2350, C813-8282350/2929, FOR PPR NR, FOR SVC AND OTHER RSTD.
A110-46MISC: WHEN NVD OPS IN EFCT CTC TWR 10 MIN PRIOR TO ARR OR DEP FOR AFLD LGT ADJ - INFO DSN 968-2120/4822.
A110-49AN/FMQ-19 AUTOMATED OBSERVING SYS IN USE; AUGMENTED BY HUMAN OBSN WHEN NEC DUR AFLD HRS.
A110-50MISC: WX OBSN AVBL H24 VIA AUTO SYS DSN 968-2627. DUR WX FLT CLOSURES REMOTE BRIEFING SVC AVBL FR 26 OWS DSN 331-2651, C318-529-2651. WHEN POSSIBLE 2 HR ADV NTC FOR ALL RQR BRIEFINGS.
A110-51RSTD: ALL DV & TSNT ACFT CTC MACDILL CMD POST 311.0 OR DSN 968-4361/4362 (C813-828-4361) 3 HR PRIOR TO ARR & 30 MIN PRIOR TO ARR WITH DV CODES, CUSTOMS INFO & SPACE-A PAX INFO.
A110-52RSTD: ALL AIRCREW DEP CIV ARPT OR GUARD/RESERVE BASE CALL COMD POST 1 HR PRIOR TO TAKEOFF WITH PAX/CARGO/ETA INFO.
A110-54CAUTION: NUMEROUS VOIDS/SINKHOLES ON AFLD; REMAIN ON TWY CNTRLN.
A110-59RSTD: ALL ACFT MUST LAND BY PPR APPROVED TIME OR CALL WITH DEVIATIONS OR PPR IS INVALID; EXC FOR VIP.
A110-60REMARKS - MISC - MACDILL CRASH FIRE RESPONSE (CFR) IS AN ACFT RESCUE AND FIREFIGHTING (ARFF) AFLD CAT 8 WITH 11,000 GAL CAP. STEADY ARFF COND FOR MACDILL AFB IS A REDUCED LEVEL OF SVC (RLS) FOR CAT 1-9 WK DAY 1030Z- 2000Z++ (0630L-1600L) AND CRITICAL LEVEL OF SVC (CLS) FOR CAT 8-9 WK NGT 2000Z-1030Z++ (1600L-0630L), RLS CAT 1-7 WKEND, CLS CAT 8-9 WKEND AND CLS CAT 10 WKLY.
A110-61MISC: CLASS B AIRSPACE SVC AUTO TERMINATES WHEN ACFT IS INSTR TO CTC TWR.
A110-63ALL SERIES B-747 & A-380 MUST ARRIVE WITH A TOW BAR.
A110-65RSTD: CARGO/HVY ACFT LNDG ON BAK-12 CABLES NA.
A110-66CAUTION: USE CTN DURG TAXIING OPS AT NIGHT ON SPOTS A1-A4 DUE TO REMOVED APN LGTG.
A110-67ALL ACFT REQ TO PARK ON ARMY APN MUST CTC ASF MACDILL C813-828-3180/3183 UP TO 7 DAYS PRIOR TO ARR/MNM NOTICE IS 24 HR PRIOR TO ARR.
A110-68RSTD: HELIPAD H1 (100 FT X 100 FT CON) USA RES AVN SUPPORT FAC MACDILL USE ONLY.
A110-69RSTD: DEPLOYED UNIT CMPLX APN (DELTA/DUCC RAMP) CLSD.
A110-70PMSV O/S UFN. PLS CTC 6 OSS/OSW WX AT (813) 828-4405 FOR WX INFO.
A110-73COMMUNICATIONS-PTD: UNSVC. CTC AMOPS C813-828-0002.
A110-74MISC: CLASS D ASP REVERTS TO CLASS G WHEN TWR IS CLSD.
A110-75TXY AND RAMP RESTRICTIONS - ACFT WITH WINGSPAN GREATER THAN 170FT RQR WING WALKERS AT THE INT OF THE BRAVO APRON AND TXY KILO DUE TO LIGHT POLE OBSTN. LIGHT POLE IS LOCATED 129 FT NORTH OF TXY KILO CNTRLN. WIDE BODY ACFT WITH WINGSPANS GREATER THAN 132.7 FT WILL NOT BE ALLOWED TO TXY ON TXY LANES LOCATED ON THE ALPHA APN WITHOUT WING-WALKERS.
A30-05/23BEARING STRENGTH: ST175; SBTT429; TRT494; TDT700.
A31-05/23FIRST 1000 FT CONC MID 9420 FT ASPH.
A32-05/23MKD 150 FT WIDE WITH 50 FT WT BRG SHOULDERS EACH SIDE.
A81-APTHIRL RWY 5/23 OPR WHEN TWR OPN.
E147TFC PAT: RECTANGULAR 1100 FT; OVHD 1600 FT. DRG VFR COND TKOF & TGL MNTN 1100 FT TIL DER. HELI 600 FT.
E60-05_BAK-12BHOOK BAK-12B(B) (1338 FT). N BAK-12B AVBL 1300-2030Z+++ MON-FRI, 45MIN PN RQR TO CONNECT CABLE, UNAVBL DUR WKEND AND FEDERAL HOL. S BAK-12B UNAVBL.
E60-23_BAK-12BHOOK BAK-12B(B) (1397 FT). N BAK-12B AVBL MON-FRI 1300Z-2030Z++; 45 MIN PN TO CNCT CABLE, UNABVL DRG WKEND AND FEDERAL HOL.
MACDILL AFB (ICAO: KMCF, IATA: MCF) is a private airport located in TAMPA, FL, US.
