KMCE
MERCED YOSEMITE RGNL
PublicPUB

2 miles SW of MERCED, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 17' 05"N 120° 30' 50"W
155' MSL
1155' MSL
15E
JET A, 100LL
RANCHO MURIETA (RIU)
SAN FRANCISCO
OAKLAND (ZOA)
7/11/24-8/8/24
KMCE VFR
3:53 AM PDT
Clear
10sm
63°F
55°F
29.82"Hg
310° 4kts
AO2 SLP096 T01720128
KMCE 191053Z AUTO 31004KT 10SM CLR 17/13 A2982 RMK AO2 SLP096 T01720128
Add Your Business

KMCE FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 122.7

ASOS

ASOS
209-381-0926
 132.175

FAA A/FD Pages

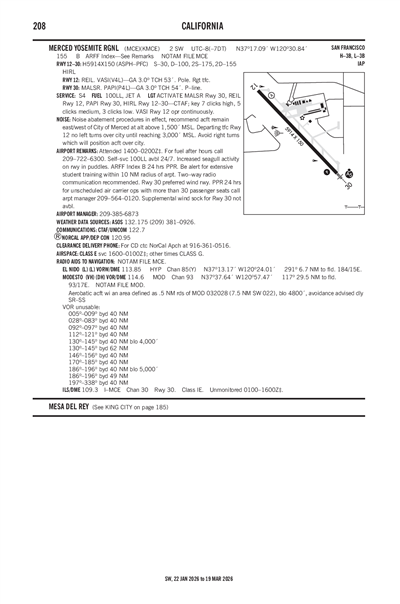

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMCE
Wed, 9/18 10:24 PM PDT
Wed, 9/18 11:00 PM PDT - Thu, 9/19 11:00 PM PDT
VFR
11:00 PM PDT - 12:00 AM PDT
Broken 12,000'
Scattered 5,000'
6sm
310° 5kts
VFR
12:00 AM PDT - 2:00 PM PDT
Light Showers and Rain
Overcast 12,000'
Broken 5,000'
6sm
310° 10kts
VFR
2:00 PM PDT - 5:00 PM PDT
Sky Clear
6sm
310° 6kts
VFR
5:00 PM PDT - 11:00 PM PDT
Broken 25,000'
6sm
310° 5kts
KMCE 190524Z 1906/2006 31005KT P6SM SCT050 BKN120
   FM190700 31010KT P6SM -SHRA BKN050 OVC120
   FM192100 31006KT P6SM SKC
   FM200000 31005KT P6SM BKN250
KMCE
Domestic
9/18/240423Z !MCE 09/017 MCE RWY 30 PAPI U/S 2409180423-2409272359EST
9/13/241010Z !MCE 09/015 MCE OBST TOWER LGT (ASR 1017176) 371514.90N1202426.30W (5.4NM ESE MCE) 474.1FT (288.1FT AGL) U/S 2409131010-2412120400
9/13/240445Z !MCE 09/014 MCE OBST TOWER LGT (ASR 1258307) 371844.00N1201904.00W (9.4NM E MCE) 353.0FT (120.1FT AGL) U/S 2409130445-2409280345
9/10/241446Z !MCE 09/012 MCE AD AP 100LL SELF SERVE FUEL NOT AVBL 2409101446-2409202300
9/3/241000Z !MCE 09/001 MCE TWY G BTN TWY A AND TRANSIENT PRKG RAMP CLSD 2409031000-2411052300
FDC
4/12/231314Z !FDC 3/0573 MCE IAP MERCED YOSEMITE RGNL, MERCED, CA.
RNAV (GPS) RWY 12, AMDT 1...
LNAV/VNAV DA 478/HAT 323 ALL CATS, VIS ALL CATS 1.
LNAV MDA 580/HAT 425 ALL CATS, VIS CATS C/D 1 1/4.
CHANGE VDP TO READ: *1.2 NM TO RW12.
2304121314-2504121314EST
4/12/231314Z !FDC 3/0571 MCE IAP MERCED YOSEMITE RGNL, MERCED, CA.
LOC BC RWY 12, AMDT 11...
DISREGARD VDP.
2304121314-2504121314EST
2/22/232110Z !FDC 3/8531 MCE IAP MERCED YOSEMITE RGNL, MERCED, CA.
ILS OR LOC RWY 30, AMDT 15...
DISREGARD NOTE: FOR INOP ALS, INCREASE S-LOC VISIBILITY TO 1 SM.
ADD NOTE: FOR INOPERATIVE ALS, INCREASE S-LOC 30 CAT A/B VISIBILITY TO 1 SM, CAT C/D VISIBILITY TO 1 3/8 SM; INCREASE RIPME FIX MINIMUMS S-LOC 30 ALL CATS VISIBILITY TO 1 SM.
2302222110-2502222110EST
No
0600-1800
CITY OF MERCED
678 WEST 18TH ST.
MERCED, CA 95340
Phone: 209-564-0120
FRANK QUINTERO
20 MACREADY DR.
MERCED, CA 95341
Phone: 209-385-6873
RANCHO MURIETA FSS (RIU)
Toll Free: 1-800-WX-BRIEF
MCE
--
ACTVT MALSR RWY 30; REIL RWY 12; PAPI RWY 30; HIRL RWY 12/30 - CTAF; KEY 7 CLICKS HIGH, 5 CLICKS MED, 3 CLICKS LOW. VASI RWY 12 OPER CONSLY.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
37
2
0
0
0
0
Major
Major
None
None
Air Freight
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 12/30

5914 ft. x 150 ft.
ASPH
Good
PFC
HIGH

30,000lbs
100,000lbs
155,000lbs
--
  Runway 12 Runway 30
True Heading 138°318°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 37° 17' 27"N 37° 16' 43"N
Longitude 120° 31' 14"W 120° 30' 26"W
Elevation 155' 155'
Threshold Crossing Height 53 ft. AGL 54 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes No
A110-2NOISE ABATEMENT PROCEDURES IN EFFECT, RECOMMEND ACFT REMAIN EAST/WEST OF CITY OF MERCED AT ALT ABOVE 1,500 FT MSL. DEPARTING TFC RWY 12 NO LEFT TURNS OVER CITY UNTIL REACHING 3,000 FT MSL.
A110-3PPR 24 HRS FOR UNSKED ACFT OPNS WITH MORE THAN 30 PSGR SEATS CALL AMGR 209-564-0120.
A110-5RY 30 PREFERRED WIND RUNWAY.
A110-6BE ALERT FOR EXTENSIVE STUDENT TRAINING WITHIN 10 NMR OF AIRPORT. TWO-WAY RADIO COMMUNICATION RECOMMENDED.
A110-7INCRD SEAGULL ACT ON RWY IN PUDDLES.
A110-8FOR CD CTC NORCAL APCH AT 916-361-0516.
MERCED YOSEMITE RGNL (ICAO: KMCE, IATA: MCE) is a public airport located in MERCED, CA.
