iFlightPlanner



...

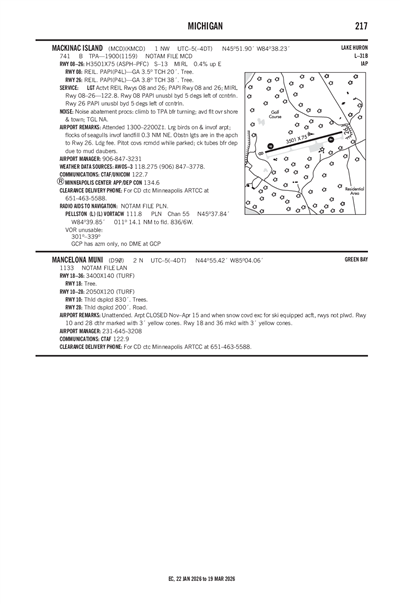

MACKINAC ISLAND - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMCD
ICAO KMCDIATA MCDLocal MCD
MACKINAC ISLAND
PublicPUB

1 miles NW of MACKINAC ISLAND, MI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
45° 51' 54"N 84° 38' 14"W
Elevation
741' MSL
Pattern Alt
1900' MSL
Mag Variation
7°W
Declination
7°W
Fuel
None Listed
FSS
GREEN BAY (GRB)
Sectional
LAKE HURON
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
2/19/26-3/19/26
KMCD VFR
1:55 AM EST
Clear
10sm
30°F
21°F
30.15"Hg
220° 8kts
AO2
METAR KMCD 040655Z AUTO 22008KT 10SM CLR M01/M06 A3015 RMK AO2
+ Add Your Business

KMCD FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3P 118.275
(906) 847-3778

Common

CTAF 122.7
UNICOM 122.7

Center

MINNEAPOLIS CENTER 134.6
LOW, APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC ON FREQS 134.6/354.05 (PELLSTON RCAG).

Terminal Area Forecast

KPLN (19nm)
Wed, 3/4 12:20 AM EST
Wed, 3/4 1:00 AM EST - Thu, 3/5 1:00 AM EST
VFR
1:00 AM EST - 1:00 PM EST
Scattered 3,500'
6sm
VRB° 3kts
VFR
Temporary 3:00 AM EST - 7:00 AM EST
Broken 3,500'
N/A
Calm
VFR
1:00 PM EST - 7:00 PM EST
Few 25,000'
6sm
220° 4kts
VFR
7:00 PM EST - 1:00 AM EST
Scattered 5,000'
6sm
140° 2kts
TAF KPLN 040520Z 0406/0506 VRB03KT P6SM SCT035
   TEMPO 0408/0412 BKN035
   FM041800 22004KT P6SM FEW250
   FM050000 14002KT P6SM SCT050
KMCD
EffectiveExpiresCategoryNOTAM
Domestic
12/9/25
2011Z
Runway!MCD 12/002 MCD RWY 26 RWY END ID LGT U/S 2512092011-2605062111EST
12/9/25
2009Z
Runway!MCD 12/001 MCD RWY 08 RWY END ID LGT U/S 2512092009-2605062111EST
No
0800-1700
MACKINAC ISLAND STATE PARK CMSN
PO BOX 370
MACKINAC ISLAND, MI 49757
Phone: 906-847-3231
MYRON JOHNSON
PO BOX 370
MACKINAC ISLAND, MI 49757
Phone: 906-847-3231
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
MCD
--
ACTVT REIL RWY 08 & 26; PAPI RWY 08 & 26; MIRL RWY 08/26 - 122.8.
N/A
Yes - Lighted
Yes
Yes
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 08/26

3501 ft. x 75 ft.
ASPH
Good
PFC
MED

13,000lbs
--
--
--
  Runway 08 Runway 26
True Heading 75°255°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 45° 51' 50"N 45° 51' 58"N
Longitude 84° 38' 37"W 84° 37' 50"W
Elevation 729' 741'
Threshold Crossing Height 20 ft. AGL 38 ft. AGL
Visual Glide Path Angle 3.5° 3.8°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1LRG BIRDS ON & INVOF ARPT; FLOCKS OF SEAGULLS INVOF LANDFILL 0.3 NM NE.
A110-3NOISE ABATEMENT PROCS: CLIMB TO TPA BFR TURNING; AVD FLT OVR SHORE & TOWN; TGL NA.
A110-4OBSTN LGTS ARE IN THE APCH TO RWY 26.
A110-5PITOT COVS RCMDD WHILE PARKED; CK TUBES BFR DEP DUE TO MUD DAUBERS.
A110-6FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A43-08PAPI UNUSBL BYD 5 DEGS LEFT OF CNTRLN.
A43-26PAPI UNUSBL BYD 5 DEGS LEFT OF CNTRLN.
A58-08+4 FT FENCE, 0 FT DIST, 210 FT L/R.
A81-APTACTVT REIL RWY 08 & 26; PAPI RWY 08 & 26; MIRL RWY 08/26 - 122.8.
MACKINAC ISLAND (ICAO: KMCD, IATA: MCD) is a public airport located in MACKINAC ISLAND, MI, US.
