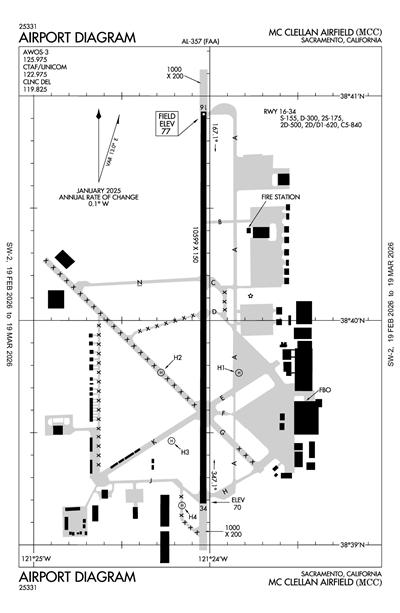

MC CLELLAN AIRFIELD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMCC
ICAO KMCCIATA MCCLocal MCC
MC CLELLAN AIRFIELD
PublicPUB

6 miles NE of SACRAMENTO, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
38° 40' 03"N 121° 24' 02"W
Elevation
77' MSL
Pattern Alt
1153' MSL
Mag Variation
13°E
Declination
17°E
Fuel
JET A, JET A (FSII), 100LL
FSS
RANCHO MURIETA (RIU)
Sectional
SAN FRANCISCO
ARTCC
OAKLAND (ZOA)
Data Effective
2/19/26-3/19/26
KMCC VFR
12:35 AM PST
Clear
10sm
52°F
50°F
30.07"Hg
130° 10kts
AO2
METAR KMCC 040835Z AUTO 13010KT 10SM CLR 11/10 A3007 RMK AO2
+ Add Your Business

KMCC FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 125.975
(916) 641-1272

Common

CTAF 122.975
ACTVT MALSR RWY 16; HIRL RWY 16/34; TWY LGTS - CTAF. PAPI RWYS 16 & 34 OPR CONSLY.
UNICOM 122.975

Clearance

Clearance Delivery 119.825

Approach

NORCAL APPROACH 127.4

Departure

NORCAL DEPARTURE 127.4

FAA A/FD Pages

Airport Diagrams

Instrument Approach

Terminal Area Forecast

KMCC
Tue, 3/3 9:20 PM PST
Tue, 3/3 10:00 PM PST - Wed, 3/4 10:00 PM PST
VFR
10:00 PM PST - 12:00 PM PST
Broken 25,000'
6sm
170° 8kts
VFR
12:00 PM PST - 10:00 PM PST
Scattered 25,000'
6sm
320° 11kts
TAF KMCC 040520Z 0406/0506 17008KT P6SM BKN250
   FM042000 32011KT P6SM SCT250
KMCC
EffectiveExpiresCategoryNOTAM
Domestic
3/4/26
1630Z
3/4/26
2300Z
!MCC 03/006 MCC SVC TAR/SSR U/S 2603041630-2603042300
3/1/26
0311Z
7/1/26
2359Z
!MCC 03/004 MCC OBST TOWER LGT (ASR 1026718) 384422.00N1211258.00W (9.6NM ENE MCC) 492.1FT (227.0FT AGL) U/S 2603010311-2607012359
3/1/26
0310Z
7/1/26
2359Z
!MCC 03/003 MCC OBST TOWER LGT (ASR 1026716) 384423.00N1211252.00W (9.6NM ENE MCC) 492.8FT (222.8FT AGL) U/S 2603010310-2607012359
3/1/26
0249Z
7/1/26
2359Z
!MCC 03/002 MCC OBST TOWER LGT (ASR 1026717) 384422.00N1211255.00W (9.6NM ENE MCC) 704.7FT (434.7FT AGL) U/S 2603010249-2607012359
2/16/26
1600Z
3/8/26
0200Z
!MCC 02/006 MCC SVC TEMPO TWR LOCAL CTL 133.15, GND CTL 135.45 MON-FRI 1600-0200 2602161600-2603080200
3/17/20
1826Z
!MCC 03/011 MCC TWY J CLSD 2003171826-PERM
No
ALL
MC CLELLAN BUSINESS PARK, LLC
3028 PEACEKEEPER WAY
MCCLELLAN, CA 95652
Phone: 916-570-5317
JOSHUA HENRY
3028 PEACEKEEPER WAY
MCCLELLAN, CA 95652
Phone: 916-570-5317
RANCHO MURIETA FSS (RIU)
Toll Free: 1-800-WX-BRIEF
MCC
--
ACTVT MALSR RWY 16; HIRL RWY 16/34; TWY LGTS - CTAF. PAPI RWYS 16 & 34 OPR CONSLY.
N/A
Yes
Yes
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
High & Low Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Aircraft Sales

Runway 16/34

10599 ft. x 150 ft.
CONC
Good
GRVD
HIGH

155,000lbs
300,000lbs
500,000lbs
--
  Runway 16 Runway 34
True Heading 180°0°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 38° 40' 56"N 38° 39' 11"N
Longitude 121° 24' 02"W 121° 24' 02"W
Elevation 77' 70'
Threshold Crossing Height 52 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No No

Runway H1

57 ft. x 57 ft.

CONC
NONE


--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings NSTD
Markings Condition
Latitude 38° 39' 47"N N/A
Longitude 121° 23' 50"W N/A
Elevation 76' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H2

57 ft. x 57 ft.

CONC
NONE


--
--
--
--
  Runway H2 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 38° 39' 46"N N/A
Longitude 121° 24' 16"W N/A
Elevation 67' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H3

57 ft. x 57 ft.

ASPH
NONE


--
--
--
--
  Runway H3 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 38° 39' 28"N N/A
Longitude 121° 24' 14"W N/A
Elevation 67' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H4

57 ft. x 57 ft.

CONC
NONE


--
--
--
--
  Runway H4 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 38° 39' 09"N N/A
Longitude 121° 24' 09"W N/A
Elevation 68' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1900 FT ASPH OVRN SE END RY 16 & 1000 FT ASPH OVRN NW END RY 34.
A110-10MILITARY USE: TRAN ACFT PPR FOR USCG RAMP C916-643-7659, WITH CREW LIST FOR ARR/DEP PAX.
A110-11RY 16 CALM WIND RWY.
A110-12TWYS E,F,G NSTD TWY EDGE LGTG.
A110-13FOR CD CTC NORCAL APCH AT 916-361-6874.
A110-2FLD CONDS-RWY, TWY & APRON GOOD.
A110-3STRICT ADHERENCE TO PUBLD TFC PATS RCMD FOR NS ABTMT PURPOSES.
A110-6TOUCH/GO LNDG FOR C5 PROHIBITED.
A110-7DURG INCREASED BIRD CONDITIONS THE POTENTIAL FOR BIRD CONGESTION EXIST AT BOTH ARR/DEP ENDS RY 16/34.
A110-8ALL ACFT EXIT RY TO THE EAST. SELF SRV 100LL W SIDE TW KILO.
A110-9MILITARY USE: FUEL - A+ (MCCLELLAN JET SVC, C916-641-8970.)
A14EMAIL: JHENRY@FLYKMCC.COM
A40-16/34NSTD HIRL LCTD 25 FT FM RY EDGE MARKINGS.
A42-H1_MARKMILITARY MARKINGS ON AIRFIELD.
A70-100LLSELF-SERVICE 100LL FUEL WEST SIDE TWY KILO.
A81-APTACTVT MALSR RWY 16; HIRL RWY 16/34; TWY LGTS - CTAF. PAPI RWYS 16 & 34 OPR CONSLY.
MC CLELLAN AIRFIELD (ICAO: KMCC, IATA: MCC) is a public airport located in SACRAMENTO, CA, US.
