iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMBT
MURFREESBORO MUNI
PublicPUB

2 miles N of MURFREESBORO, TN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 52' 43"N 86° 22' 39"W
614' MSL
1614' MSL
02W
JET A (FSII), 100LL
NASHVILLE (BNA)
ATLANTA
MEMPHIS (ZME)
10/31/24-11/28/24
KMBT VFR
5:35 AM CST
Clear
10sm
50°F
50°F
30.13"Hg
Calm
A01
KMBT 091135Z AUTO 00000KT 10SM CLR 10/10 A3013 RMK A01
Add Your Business

KMBT FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.075 123.075

AWOS-3

AWOS-3
615-849-2622
 133.975

FAA A/FD Pages

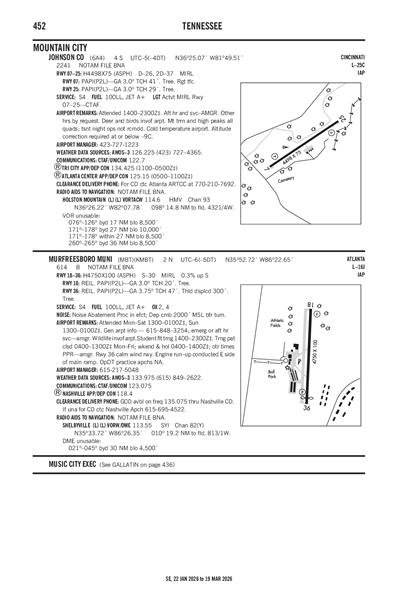

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMQY (10nm)
Sat, 11/9 5:27 AM CST
Sat, 11/9 6:00 AM CST - Sun, 11/10 6:00 AM CST
VFR
6:00 AM CST - 4:00 PM CST
Broken 25,000'
6sm
320° 4kts
VFR
4:00 PM CST - 7:00 PM CST
Light Showers and Rain
Overcast 6,000'
6sm
140° 7kts
MVFR
7:00 PM CST - 8:00 PM CST
Light Showers and Rain
Overcast 2,500'
6sm
150° 9kts
Gusts 15kts
MVFR
8:00 PM CST - 11:00 PM CST
Light Showers and Rain
Overcast 1,500'
6sm
150° 10kts
Gusts 17kts
MVFR
11:00 PM CST - 1:00 AM CST
Light Showers and Rain
Overcast 2,500'
5sm
160° 11kts
Gusts 19kts
VFR
1:00 AM CST - 6:00 AM CST
Light Showers and Rain
Overcast 3,500'
6sm
160° 12kts
Gusts 19kts
KMQY 091127Z 0912/1012 32004KT P6SM BKN250
   FM092200 14007KT 6SM -SHRA OVC060
   FM100100 15009G15KT 6SM -SHRA OVC025
   FM100200 15010G17KT 6SM -SHRA OVC015
   FM100500 16011G19KT 5SM -SHRA OVC025
   FM100700 16012G19KT 6SM -SHRA OVC035
KMBT
Domestic
11/4/242320Z !BNA 11/076 MBT OBST TOWER LGT (ASR 1003684) 355117.00N0863322.00W (8.8NM W MBT) 1011.8FT (228.0FT AGL) U/S 2411042320-2502020500
11/4/241800Z !BNA 11/057 MBT OBST TOWER LGT (ASR 1057469) 355105.50N0863340.40W (9.1NM W MBT) 998.0FT (260.2FT AGL) U/S 2411041800-2502020500
11/2/241447Z !BNA 11/024 MBT OBST TOWER LGT (ASR 1293521) 355618.10N0861033.00W (10.5NM ENE MBT) 1127.6FT (198.8FT AGL) U/S 2411021447-2411171447
10/26/242027Z !BNA 10/515 MBT OBST TOWER LGT (ASR 1280424) 354559.40N0862333.30W (6.8NM S MBT) 1122.0FT (250.0FT AGL) U/S 2410262027-2411102027
10/4/241853Z !BNA 10/109 MBT RWY 36 THR DISPLACED 300FT: TORA 4753FT TODA 4753FT ASDA 4753FT LDA 4453. RWY 18 TORA 4753FT TODA 4753FT ASDA 4753FT LDA 4753FT. 2410041853-2502242300
FDC
5/21/241624Z !FDC 4/7317 MBT ODP MURFREESBORO MUNI, MURFREESBORO, TN.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 4...
NOTE - RWY 18: LIGHT POLES 20 FT FROM DER, 88 FT LEFT OF CENTERLINE, 3 FT AGL/616 FT MSL. LIGHT POLES 21 FT FROM DER, 88 FT RIGHT OF CENTERLINE, 3 FT AGL/615 FT MSL. TREES BEGINNING 51 FT FROM DER, 369 FT LEFT OF CENTERLINE, UP TO 670 FT MSL. BUILDING 145 FT FROM DER, 462 FT RIGHT OF CENTERLINE, 19 FT AGL/634 FT MSL ..
NOTE: RWY 36: TREE, TERRAIN BEGINNING 0 FT FROM DER, 412 FT RIGHT OF CENTERLINE, UP TO 655 FT MSL. TRAVERSE WAY, FENCE BEGINNING 3 FT FROM DER, 325 FT LEFT OF CENTERLINE, UP TO 609 FT MSL. TREES BEGINNING 236 FT FROM DER, 533 FT RIGHT OF CENTERLINE, UP TO 660 FT MSL. TREE 2959 FT FROM DER, 437 FT LEFT OF CENTERLINE, 675 FT MSL.
NOTE - RWY 36: TREE, TERRAIN BEGINNING 0 FT FROM DER, 412 FT RIGHT OF CENTERLINE, UP TO 655 FT MSL. TRAVERSE WAY, FENCE BEGINNING 3 FT FROM DER, 325 FT LEFT OF CENTERLINE, UP TO 609 FT MSL. TREES BEGINNING 236 FT FROM DER, 533 FT RIGHT OF CENTERLINE, UP TO 660 FT MSL. TREE 2959 FT FROM DER, 437 FT LEFT OF CENTERLINE, 675 FT MSL.
ALL OTHER DATA REMAINS AS PUBLISHED. 2405211624-2605211622EST
5/31/231830Z !FDC 3/3958 MBT IAP MURFREESBORO MUNI, MURFREESBORO, TN.
RNAV (GPS) RWY 36, AMDT 3...
LPV DA NA; LNAV/VNAV DA NA.
2305311830-2505311830EST
5/31/231830Z !FDC 3/3956 MBT IAP MURFREESBORO MUNI, MURFREESBORO, TN.
RNAV (GPS) RWY 18, AMDT 2...
CIRCLING CAT B MDA 1100/HAA 486.
NOTE: RWY 18 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED.
2305311830-2505311830EST
No
SUN 0700-1900
MON-SAT 0700-1900
GEN ARPT INFO - 615-848-3254; EMERG OR AFT HR SVC - AMGR.
CITY OF MURFREESBORO
CITY HALL, 111 W VINE ST.
MURFREESBORO, TN 37130
Phone: 615-893-5210
RYAN HULSEY
1930 MEMORIAL BLVD.
MURFREESBORO, TN 37129
Phone: 615-217-5048
NASHVILLE FSS (BNA)
Toll Free: 1-800-WX-BRIEF
BNA
Sunset to Sunrise
--
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
Low Pressure
Low Pressure
Air Freight
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 18/36

4753 ft. x 100 ft.
ASPH
Good
NONE
MED

30,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 182°2°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 53' 07"N 35° 52' 20"N
Longitude 86° 22' 38"W 86° 22' 40"W
Elevation 600' 614'
Threshold Crossing Height 18 ft. AGL 25 ft. AGL
Visual Glide Path Angle 3° 3.75°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1STUDENT FLT TRNG 0800-1700.
A110-100GCO AVBL ON FREQ 135.075 THRU NASHVILLE CD. IF UNA FOR CD CTC NASHVILLE APCH 615-695-4522.
A110-103WILDLIFE INVOF ARPT.
A110-104ENGINE RUN-UP CONDUCTED E SIDE OF MAIN RAMP.
A110-105TRNG PAT CLSD 2200-0700 MON-FRI; WKEND & HOL 2200-0800; OTR TIMES PPR - AMGR.
A110-106NOISE ABATEMENT PROC IN EFCT; DEP CMB 2000 FT MSL BFR TURN.
A110-107OPDT PRACTICE APCHS NA.
MURFREESBORO MUNI (ICAO: KMBT, IATA: MBT) is a public airport located in MURFREESBORO, TN.
