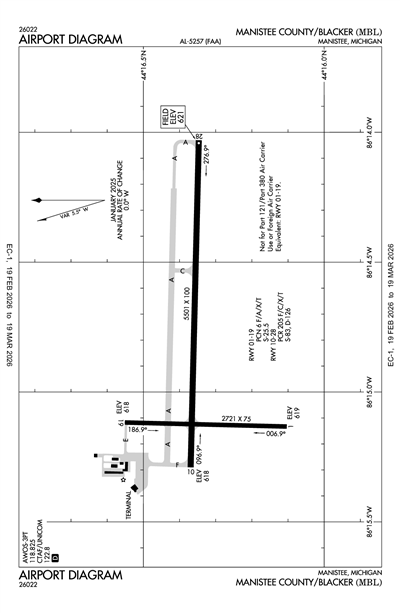

MANISTEE COUNTY/BLACKER - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMBL
ICAO KMBLIATA MBLLocal MBL
MANISTEE COUNTY/BLACKER
PublicPUB

3 miles NE of MANISTEE, MI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
44° 16' 21"N 86° 14' 49"W
Elevation
621' MSL
Pattern Alt
1621' MSL
Mag Variation
5°W
Declination
6°W
Fuel
JET A, 100LL
FSS
LANSING (LAN)
Sectional
GREEN BAY
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
2/19/26-3/19/26
KMBL VFR
2:56 AM EST
Clear
10sm
22°F
20°F
30.24"Hg
100° 3kts
AO2 SLP251 T10561067 FZRANO
METAR KMBL 040756Z AUTO 10003KT 10SM CLR M06/M07 A3024 RMK AO2 SLP251 T10561067 FZRANO
+ Add Your Business

KMBL FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 118.825
(231) 723-6073

Common

CTAF 122.8
ACTVT MALSR RWY 28; REIL RWY 10; PAPI RWY 01, 19, 10, & 28; HIRL RWY 10/28; MIRL RWY 01/19 - CTAF.; ARFF MNT CTAF DRG ACR OPS.; MAINT PSNL MNT CTAF DRG WORK ON TWYS & RWYS.
UNICOM 122.8

Center

MINNEAPOLIS CENTER 120.85
LOW, APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC (ZMP) ON FREQS 120.85/322.35 (WHITE CLOUD RCAG).

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Instrument Approach

Terminal Area Forecast

KMBL
Wed, 3/4 12:20 AM EST
Wed, 3/4 1:00 AM EST - Thu, 3/5 1:00 AM EST
VFR
1:00 AM EST - 1:00 PM EST
Sky Clear
6sm
VRB° 3kts
VFR
1:00 PM EST - 7:00 PM EST
Few 25,000'
6sm
200° 5kts
VFR
7:00 PM EST - 1:00 AM EST
Few 25,000'
6sm
VRB° 3kts
TAF KMBL 040520Z 0406/0506 VRB03KT P6SM SKC
   FM041800 20005KT P6SM FEW250
   FM050000 VRB03KT P6SM FEW250
KMBL
EffectiveExpiresCategoryNOTAM
Domestic
9/11/25
1241Z
!MBL 09/007 MBL NAV ILS RWY 28 OM U/S 2509111241-2603312111EST
No
NOV-MAR 0800-1700
JUN-AUG 0800-2000
APR & OCT 0800-1800
MAY & SEPT 0800-1900
MANISTEE BLACKER ARPT AUTHORITY
2323 AIRPORT RD
MANISTEE, MI 49660
Phone: 231-723-4351
MILES WEAVER
2323 AIRPORT RD
MANISTEE, MI 49660
Phone: 231-723-4351
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
MBL
--
ACTVT MALSR RWY 28; REIL RWY 10; PAPI RWY 01, 19, 10, & 28; HIRL RWY 10/28; MIRL RWY 01/19 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
None

Runway 01/19

2721 ft. x 75 ft.
ASPH
Good
NONE
MED
6/F/A/X/T
26,000lbs
--
--
--
  Runway 01 Runway 19
True Heading 1°181°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 44° 16' 06"N 44° 16' 33"N
Longitude 86° 15' 08"W 86° 15' 07"W
Elevation 618' 618'
Threshold Crossing Height 21 ft. AGL 34 ft. AGL
Visual Glide Path Angle 4° 4°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights No No

Runway 10/28

5501 ft. x 100 ft.
ASPH
Excellent
PFC
HIGH

83,000lbs
126,000lbs
--
--
  Runway 10 Runway 28
True Heading 91°271°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 44° 16' 22"N 44° 16' 21"N
Longitude 86° 15' 17"W 86° 14' 02"W
Elevation 618' 621'
Threshold Crossing Height 30 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes No
A110-1BIRDS ON & INVOF ARPT.
A110-10FLD CONDS UNMON AFT ATNDD HRS EXC FOR ACR OPS.
A110-2TWY E MKD WITH REFLECTORS.
A110-7ARFF MNT CTAF DRG ACR OPS.
A110-8MAINT PSNL MNT CTAF DRG WORK ON TWYS & RWYS.
A26CLSD TO SKED ACR OPS GTR THAN 9 PAX SEATS. 24 HR PPR FOR UNSKED ACR OPS GTR THAN 30 PAX SEATS - CALL AMGR. ARFF UNAVBL EXC ACR & PPR.
A30-01/19RWY 01/19 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS. NO PART 121/PART 380 OPS EXC FOR TAX.
A39-10/28PCR VALUE: 205/F/C/X/T
A52-19ALSO +15 FT ROAD, 498 FT DIST, APCH RATIO 33:1.
A81-APTACTVT MALSR RWY 28; REIL RWY 10; PAPI RWY 01, 19, 10, & 28; HIRL RWY 10/28; MIRL RWY 01/19 - CTAF.
MANISTEE COUNTY/BLACKER (ICAO: KMBL, IATA: MBL) is a public airport located in MANISTEE, MI, US.
