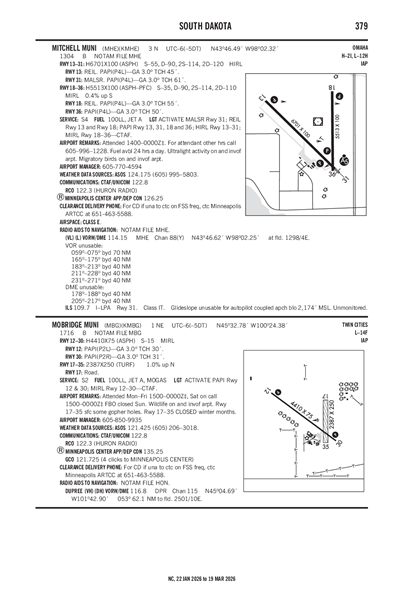

MOBRIDGE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMBG
ICAO KMBGIATA MBGLocal MBG
MOBRIDGE MUNI
PublicPUB

1 miles NE of MOBRIDGE, SD, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
45° 32' 47"N 100° 24' 23"W
Elevation
1716' MSL
Pattern Alt
2716' MSL
Mag Variation
5°E
Declination
9°E
Fuel
JET A, 100LL, MOGAS
FSS
HURON (HON)
Sectional
TWIN CITIES
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
2/19/26-3/19/26
K0D8 (39nm) VFR
7:55 PM CST
Clear
10sm
43°F
25°F
29.80"Hg
130° 10kts
A01
METAR K0D8 050155Z AUTO 13010KT 10SM CLR 06/M04 A2980 RMK A01
+ Add Your Business

KMBG FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 121.425
(605) 206-3018

Common

CTAF 122.8
ACTVT PAPI RWY 12 & 30; MIRL RWY 12/30 - CTAF.
UNICOM 122.8

Center

MINNEAPOLIS CENTER 135.25
LOW, APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC (ZMP) ON FREQ 135.25/256.7 (DUPREE RCAG).

Flight Service

Flight Service 122.3
(HON)
Ground Communication Outlet 121.725
GCO AVBL ON FREQ 121.725 (4 CLICKS TO MINNEAPOLIS CENTER)

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KMBG
Wed, 3/4 5:34 PM CST
Wed, 3/4 6:00 PM CST - Thu, 3/5 6:00 PM CST
VFR
6:00 PM CST - 11:00 PM CST
Few 25,000'
6sm
140° 4kts
VFR
11:00 PM CST - 3:00 AM CST
Broken 21,000'
6sm
070° 9kts
IFR
3:00 AM CST - 8:00 AM CST
Mist
Scattered 1,800'
1.5sm
100° 10kts
Gusts 17kts
IFR
8:00 AM CST - 10:00 AM CST
Mist
Broken 1,700'
1sm
130° 12kts
Gusts 19kts
VFR
10:00 AM CST - 5:00 PM CST
Mist
Scattered 2,900'
6sm
150° 12kts
Gusts 21kts
VFR
5:00 PM CST - 6:00 PM CST
Scattered 21,000'
6sm
200° 9kts
TAF KMBG 042334Z 0500/0524 14004KT P6SM FEW250
   FM050500 07009KT P6SM BKN210
   FM050900 10010G17KT 1 1/2SM BR SCT018
   FM051400 13012G19KT 1SM BR BKN017
   FM051600 15012G21KT 6SM BR SCT029
   FM052300 20009KT P6SM SCT210
KMBG
EffectiveExpiresCategoryNOTAM
FDC
1/28/26
1754Z
!FDC 6/8097 MBG IAP MOBRIDGE MUNI, MOBRIDGE, SD.
RNAV (GPS) RWY 30, AMDT 1B...
LNAV/VNAV DA 2147/HAT 446 ALL CATS.
VIS 1 3/8 ALL CATS.
2601281754-2801282359EST
No
MON-FRI 0900-1800
SAT ON CALL 0900-1800 FBO CLSD SUN
CITY OF MOBRIDGE
114 1ST AVE. E
MOBRIDGE, SD 57601
Phone: 605-845-3509
BRADY FUHRER
114 1ST AVENUE E
MOBRIDGE, SD 57601
Phone: 605-850-9935
HURON FSS (HON)
Toll Free: 1-800-WX-BRIEF
MBG
--
ACTVT PAPI RWY 12 & 30; MIRL RWY 12/30 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
Air Freight
Crop Dusting
Pilot Instruction

Runway 12/30

4410 ft. x 75 ft.
ASPH
Excellent
NONE
MED

15,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 127°307°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 45° 33' 00"N 45° 32' 34"N
Longitude 100° 24' 53"W 100° 24' 04"W
Elevation 1,703' 1,700'
Threshold Crossing Height 30 ft. AGL 31 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2R
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 17/35

2387 ft. x 250 ft.
TURF
Good
NONE


--
--
--
--
  Runway 17 Runway 35
True Heading 180°360°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition FAIR FAIR
Latitude 45° 32' 57"N 45° 32' 33"N
Longitude 100° 24' 12"W 100° 24' 11"W
Elevation 1,716' 1,692'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1WILDLIFE ON AND INVOF ARPT.
A110-2GCO AVBL ON FREQ 121.725 (4 CLICKS TO MINNEAPOLIS CENTER)
A110-5FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A30-17/35RWY 17/35 CLSD WINTER MONTHS.
A33-17/35_CONDSOME GOPHER HOLES.
A81-APTACTVT PAPI RWY 12 & 30; MIRL RWY 12/30 - CTAF.
MOBRIDGE MUNI (ICAO: KMBG, IATA: MBG) is a public airport located in MOBRIDGE, SD, US.
