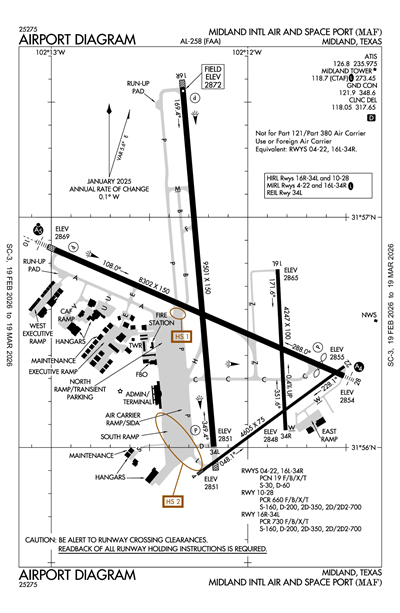

MIDLAND INTL AIR AND SPACE PORT - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMAF
ICAO KMAFIATA MAFLocal MAF
MIDLAND INTL AIR AND SPACE PORT
PublicPUB

8 miles SW of MIDLAND, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
31° 56' 33"N 102° 12' 07"W
Elevation
2872' MSL
Pattern Alt
3872' MSL
Mag Variation
6°E
Declination
9°E
Fuel
JET A, JET A-1, 100LL
FSS
SAN ANGELO (SJT)
Sectional
SAN ANTONIO
ARTCC
FORT WORTH (ZFW)
Data Effective
2/19/26-3/19/26
KMAF VFR
2:53 AM CST
Clear
8sm
66°F
52°F
29.94"Hg
200° 7kts
AO2 SLP096 T01890111 58006
METAR KMAF 040853Z AUTO 20007KT 8SM CLR 19/11 A2994 RMK AO2 SLP096 T01890111 58006
+ Add Your Business

KMAF FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 126.8
ASOS (432) 201-2813

Common

CTAF 118.7
ATC CTL. WHEN ATCT CLSD HIRL RWYS 10/28 & 16R/34L PRESET ON LOW INTST. WHEN ATCT CLSD ACTVT MALSR RWY 10; MALS RWY 28; MIRL RWYS 04/22 & 16L/34R - CTAF.
UNICOM 122.95

Clearance

Clearance Delivery 118.05

Ground

MIDLAND GROUND 121.9
0600-0000

Tower

MIDLAND TOWER 118.7
0600-0000

Approach

MIDLAND APPROACH 121.1
137-240
MIDLAND APPROACH 124.6
Initial Contact - 241-136

Departure

MIDLAND DEPARTURE 121.1
137-240
MIDLAND DEPARTURE 124.6
Initial Contact - 241-136

Center

MIDLAND CENTER 133.1
LOW, APCH/DEP SVC PRVDD BY FORT WORTH ARTCC (ZFW) ON FREQS 133.1/298.95 (MIDLAND RCAG) WHEN MIDLAND APCH CLSD.

Flight Service

Flight Service 122.6
(SJT)

Emergency

Emergency 121.5

Other

CLASS C 121.1
137-240
CLASS C 124.6
241-136

Terminal Area Forecast

KMAF
Tue, 3/3 11:20 PM CST
Wed, 3/4 12:00 AM CST - Thu, 3/5 12:00 AM CST
VFR
12:00 AM CST - 6:00 AM CST
Broken 20,000'
6sm
170° 7kts
VFR
6:00 AM CST - 7:00 PM CST
Overcast 25,000'
6sm
040° 10kts
VFR
7:00 PM CST - 12:00 AM CST
Overcast 20,000'
6sm
110° 5kts
TAF KMAF 040520Z 0406/0506 17007KT P6SM BKN200
   FM041200 04010KT P6SM OVC250
   FM050100 11005KT P6SM OVC200
KMAF
EffectiveExpiresCategoryNOTAM
Domestic
3/4/26
1400Z
3/4/26
2355Z
!MAF 02/172 MAF SVC TAR/SSR U/S 2603041400-2603042355
3/4/26
0400Z
3/4/26
0610Z
!MAF 03/013 MAF AD AP ARFF MNT CTAF 118.7 2603040400-2603040610
3/4/26
0400Z
3/4/26
0600Z
!MAF 03/012 MAF SVC TWR CLSD MNT CTAF 118.7 CLASS C SER INVOLVING VFR ACFT NOT AVBL CTC FORT WORTH ARTCC FOR CLASS C ARR COM ON 133.1 OR 298.95, FOR CLR DELIVERY AT 817-858-7584 2603040400-2603040600
3/4/26
0400Z
3/4/26
0600Z
!MAF 03/011 MAF SVC SEE ZFW 0/069 MIDLAND APP CLSD 2603040400-2603040600
3/2/26
1430Z
3/8/26
0500Z
!MAF 03/007 MAF AIRSPACE UAS WI AN AREA DEFINED AS 3NM RADIUS OF MAF270016 SFC-200FT AGL 2603021430-2603080500
2/27/26
2100Z
2/27/27
2100Z
!MAF 02/171 MAF AIRSPACE UAS WI AN AREA DEFINED AS 4NM RADIUS OF 315708N1014931W (14.3NM NE 7T7) SFC-400FT AGL 2602272100-2702272100
2/27/26
0059Z
4/1/26
0510Z
Runway!MAF 02/170 MAF RWY 16R/34L REDL NOT STD 2602270059-2604010510
2/27/26
0059Z
4/1/26
0510Z
Runway!MAF 02/169 MAF RWY 10/28 REDL NOT STD 2602270059-2604010510
2/27/26
0058Z
4/1/26
0510Z
Runway!MAF 02/168 MAF RWY 22 HLDG PSN SIGN AT RWY 16R/34L LEFT SIDE LGT U/S 2602270058-2604010510
2/27/26
0055Z
4/1/26
0510Z
Runway!MAF 02/167 MAF RWY 28 HLDG PSN SIGN AT RWY16R/34L LEFT SIDE LGT U/S 2602270055-2604010510
2/27/26
0053Z
4/1/26
0510Z
!MAF 02/166 MAF TWY C HLDG PSN SIGN SOUTHEAST SIDE FOR RWY 16L/34R LGT U/S 2602270053-2604010510
2/27/26
0052Z
4/1/26
0510Z
!MAF 02/165 MAF TWY W HLDG PSN SIGN FOR APCH END RWY 34R LGT U/S 2602270052-2604010510
2/27/26
0051Z
4/1/26
0510Z
!MAF 02/164 MAF OBST STACK (ASN UNKNOWN) 315629N1021239W (0.46NM SE APCH END RWY 10)
UNKNOWN (50FT AGL) NOT LGTD 2602270051-2604010510
2/27/26
0051Z
4/1/26
0510Z
!MAF 02/163 MAF TWY U CLSD 2602270051-2604010510
2/27/26
0049Z
4/1/26
0510Z
Runway!MAF 02/162 MAF RWY 34L 6000FT DIST REMAINING SIGN LGT U/S 2602270049-2604010510
2/27/26
0047Z
4/1/26
0510Z
Runway!MAF 02/161 MAF RWY 16R 3000FT DIST REMAINING SIGN LGT U/S 2602270047-2604010510
2/27/26
0046Z
4/1/26
0510Z
Runway!MAF 02/160 MAF RWY 34L 7000FT DIST REMAINING SIGN LGT U/S 2602270046-2604010510
2/27/26
0046Z
4/1/26
0510Z
Runway!MAF 02/159 MAF RWY 16R 2000FT DIST REMAINING SIGN LGT U/S 2602270046-2604010510
2/14/26
1804Z
3/31/26
1803Z
!MAF 02/103 MAF OBST TOWER LGT (ASR 1053361) 320511.00N1021712.00W (9.6NM NNW MAF) 4041.0FT (1131.9FT AGL) U/S 2602141804-2603311803
1/21/26
1747Z
4/21/26
0500Z
!MAF 01/107 MAF OBST TOWER LGT (ASR 1051408) 320551.40N1021722.50W (10.3NM NNW MAF) 4047.9FT (1133.9FT AGL) U/S 2601211747-2604210500
12/18/25
1500Z
12/18/26
1500Z
!MAF 12/073 MAF AIRSPACE UAS WI AN AREA DEFINED AS 4NM RADIUS OF 314938N1015034W (12.5NM SE 7T7) SFC-400FT AGL 2512181500-2612181500
12/10/25
1500Z
12/10/26
1500Z
!MAF 12/041 MAF AIRSPACE UAS WI AN AREA DEFINED AS 4NM RADIUS OF 315015.90N1015758.40W (6.4NM E 7T7) SFC-400FT AGL 2512101500-2612101500
11/19/25
1500Z
11/19/26
1500Z
!MAF 11/068 MAF AIRSPACE UAS WI AN AREA DEFINED AS 4NM RADIUS OF 315215N1015441W (8.9NM W 7T7) SFC-400FT AGL 2511191500-2611191500
FDC
3/3/26
0601Z
!FDC 6/1977 MAF ODP MIDLAND INTL AIR AND SPACE PORT, MIDLAND, TX.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1A...
TAKEOFF MINIMUMS: RWY 28, 300-1 3/8 OR STANDARD WITH A MINIMUM CLIMB OF 241 FEET PER NM TO 3200. TAKEOFF OBSTACLE NOTES: RWY 28, TEMPORARY RIGS, BEGINNING 1.1 NM FROM DER, BEGINNING 2102FT LEFT OF CENTERLINE, 175 AGL/3064 MSL (2025-ASW-2957/2958-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2603030601-2605071235EST
12/1/25
1636Z
!FDC 5/2909 MAF IAP MIDLAND INTL AIR AND SPACE PORT, MIDLAND, TX.
RNAV (GPS) RWY 10, AMDT 2C...
RNAV (GPS) RWY 16R, AMDT 1B...
RNAV (GPS) RWY 22, AMDT 1C...
RNAV (GPS) RWY 28, AMDT 2B...
RNAV (GPS) RWY 34L, AMDT 1B...
RNAV (GPS) RWY 4, AMDT 1C...
CIRCLING MDA CATS C/D 3540/HAT 668.
TEMPORARY CRANES STARTING AT 2.5NM NORTHEAST OF MAF AIRPORT, UP TO 300 AGL/3189 MSL (2025-ASW-11549-OE).
2512011636-2705042000EST
11/24/25
2000Z
!FDC 5/0638 MAF IAP U.S. DOD MIDLAND INTL AIR AND SPACE PORT, MIDLAND, TX.
HI - VOR OR TACAN RWY 16R, AMDT 3...
HI-VOR OR TACAN RWY 34L, AMDT 3...
VOR OR TACAN RWY 16R, AMDT 23C...
VOR OR TACAN RWY 34L, AMDT 10B...
CIRCLING MDA CATS C/D 3540/HAT 668. TEMPORARY CRANES STARTING AT 2.5NM NORTHEAST OF MAF AIRPORT, UP TO 300 AGL/3189 MSL (2025-ASW-11549-OE).
2511242000-2705042000EST
11/24/25
2000Z
!FDC 5/0634 MAF IAP MIDLAND INTL AIR AND SPACE PORT, MIDLAND, TX.
ILS OR LOC RWY 10, AMDT 16C...
CIRCLING MDA CATS C/D 3540/HAT 668.
USILE FIX MINIMUMS:
CIRCLING MDA CATS C/D 3540/HAT 668.
TEMPORARY CRANES STARTING AT 2.5NM NORTHEAST OF MAF AIRPORT, UP TO 300 AGL/3189 MSL (2025-ASW-11549-OE).
2511242000-2705042000EST
Yes
ALL
CITY OF MIDLAND
PO BOX 1152
MIDLAND, TX 79702
Phone: 432-685-7100
JUSTINE RUFF
PO BOX 60305
MIDLAND, TX 79711
Phone: 432-560-2200
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
MAF
--
ATC CTL. WHEN ATCT CLSD HIRL RWYS 10/28 & 16R/34L PRESET ON LOW INTST. WHEN ATCT CLSD ACTVT MALSR RWY 10; MALS RWY 28; MIRL RWYS 04/22 & 16L/34R - CTAF.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
Low Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04/22

4605 ft. x 75 ft.
ASPH
Good
NONE
MED
19/F/B/X/T
30,000lbs
60,000lbs
--
--
  Runway 04 Runway 22
True Heading 54°234°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 31° 55' 54"N 31° 56' 21"N
Longitude 102° 12' 14"W 102° 11' 30"W
Elevation 2,851' 2,855'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 10/28

8302 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

160,000lbs
200,000lbs
350,000lbs
700,000lbs
  Runway 10 Runway 28
True Heading 114°294°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 31° 56' 52"N 31° 56' 19"N
Longitude 102° 12' 59"W 102° 11' 31"W
Elevation 2,869' 2,854'
Threshold Crossing Height 54 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights MALSR MALS
Centerline Lights
Runway End Identifier Lights

Runway 16L/34R

4247 ft. x 100 ft.
ASPH
Good
NONE
MED
19/F/B/X/T
30,000lbs
60,000lbs
--
--
  Runway 16L Runway 34R
True Heading 177°357°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 31° 56' 46"N 31° 56' 04"N
Longitude 102° 11' 51"W 102° 11' 48"W
Elevation 2,865' 2,848'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 16R/34L

9501 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

160,000lbs
200,000lbs
350,000lbs
700,000lbs
  Runway 16R Runway 34L
True Heading 175°355°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 31° 57' 34"N 31° 56' 00"N
Longitude 102° 12' 20"W 102° 12' 10"W
Elevation 2,872' 2,851'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-10OPRS ON NON PAVED SFC ARE PROHIBITED WO 24 HR PPR.
A110-2RWYS 04/22 & 16L/34R CLSD TO ACFT OVER 60000 LBS.
A110-4TWYS B & F NORTH RWY 10/28 CLSD TO ACFT OVER 60000 LBS.
A110-5BIRD ACTIVITY ON & INVOF ARPT.
A110-6NMRS OIL RIGS INVOF ARPT AT OR BLW 200 FT AGL.
A110-7ALL RUNUP PADS ARE LTD USAGE TO ACFT 60000 LBS OR BLW.
A110-9FOR CD IF UNA TO CTC ON FSS FREQ, CTC FORT WORTH ARTCC AT 817-858-7584.
A26FOR ARFF SVC BTN 0000-0600 DLY CTC FSS AT 800-992-7433.
A30-04/22RWY 04/22 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A30-10/28180 DEG TURN PROHIBITED TO ACFT 60000 LBS OR ABV.
A30-16L/34RRWY 16L/34R NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A30-16R/34L180 DEG TURN PROHIBITED TO ACFT 60000 LBS OR ABV.
A31-10/28EAST 692 FT CLSD TO ACFT OVER 60000 LBS.
A39-10/28PCR VALUE: 660/F/B/X/T
A39-16R/34LPCR VALUE: 730/F/B/X/T
A81-APTATC CTL. WHEN ATCT CLSD HIRL RWYS 10/28 & 16R/34L PRESET ON LOW INTST. WHEN ATCT CLSD ACTVT MALSR RWY 10; MALS RWY 28; MIRL RWYS 04/22 & 16L/34R - CTAF.
MIDLAND INTL AIR AND SPACE PORT (ICAO: KMAF, IATA: MAF) is a public airport located in MIDLAND, TX, US.
