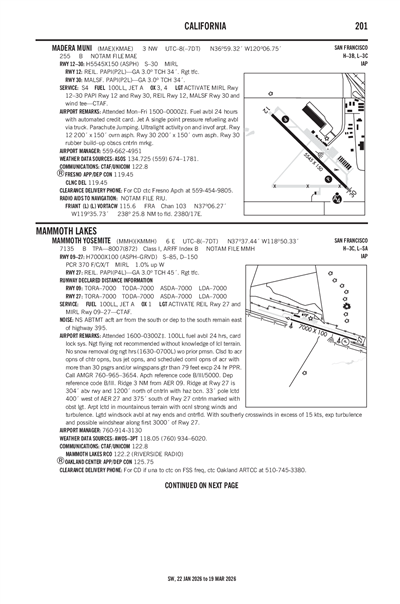

MADERA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMAE
ICAO KMAEIATA MAELocal MAE
MADERA MUNI
PublicPUB

3 miles NW of MADERA, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 59' 19"N 120° 06' 45"W
Elevation
255' MSL
Pattern Alt
1255' MSL
Mag Variation
13°E
Declination
13°E
Fuel
JET A, 100LL
FSS
RANCHO MURIETA (RIU)
Sectional
SAN FRANCISCO
ARTCC
OAKLAND (ZOA)
Data Effective
2/19/26-3/19/26
KMAE VFR
12:53 AM PST
Clear
10sm
49°F
48°F
30.10"Hg
Calm
AO2 SLP191 T00940089 51006
METAR KMAE 040853Z AUTO 00000KT 10SM CLR 09/09 A3010 RMK AO2 SLP191 T00940089 51006
+ Add Your Business

KMAE FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 134.725
(559) 674-1781

Common

CTAF 122.8
ACTVT MIRL RY 12/30; PAPI RYS 12 & 30, REIL RY 12, MALSF RY 30 AND WIND TEE - CTAF.
UNICOM 122.8

Clearance

Clearance Delivery 119.45

Approach

FRESNO APPROACH 119.45

Departure

FRESNO DEPARTURE 119.45

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KFAT (23nm)
Tue, 3/3 9:20 PM PST
Tue, 3/3 10:00 PM PST - Wed, 3/4 10:00 PM PST
VFR
10:00 PM PST - 4:00 AM PST
Broken 20,000'
6sm
VRB° 3kts
MVFR
4:00 AM PST - 8:00 AM PST
Mist
Sky Clear
5sm
VRB° 3kts
MVFR
Temporary 6:00 AM PST - 8:00 AM PST
Mist
No Clouds
4sm
Calm
VFR
8:00 AM PST - 1:00 PM PST
Broken 25,000'
6sm
300° 9kts
Gusts 19kts
VFR
1:00 PM PST - 4:00 PM PST
Broken 25,000'
6sm
310° 12kts
VFR
4:00 PM PST - 6:00 PM PST
Scattered 25,000'
6sm
320° 15kts
Gusts 22kts
VFR
6:00 PM PST - 10:00 PM PST
Sky Clear
6sm
310° 13kts
TAF KFAT 040520Z 0406/0506 VRB03KT P6SM BKN200
   FM041200 VRB03KT 5SM BR SKC
   TEMPO 0414/0416 4SM BR
   FM041600 30009G19KT P6SM BKN250
   FM042100 31012KT P6SM BKN250
   FM050000 32015G22KT P6SM SCT250
   FM050200 31013KT P6SM SKC
KMAE
EffectiveExpiresCategoryNOTAM
Domestic
2/7/26
1634Z
5/8/26
2359Z
!MAE 02/002 MAE OBST TOWER LGT (ASN 2021-AWP-18936-OE) 370252N1200959W (4.4NM NW MAE) 407FT (160FT AGL) U/S 2602071634-2605082359
No
MON-FRI 0700-1600
CITY OF MADERA
205 WEST 4TH ST
MADERA, CA 93637
Phone: (559) 661-5466
DAVID AUSTIN
4020 AVIATION DR
MADERA, CA 93637
Phone: 559-662-4951
RANCHO MURIETA FSS (RIU)
Toll Free: 1-800-WX-BRIEF
MAE
--
ACTVT MIRL RY 12/30; PAPI RYS 12 & 30, REIL RY 12, MALSF RY 30 AND WIND TEE - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
None
Crop Dusting
Avionics
Pilot Instruction
Parachute Jump Activity
Aircraft Sales

Runway 12/30

5545 ft. x 150 ft.
ASPH
Fair
NONE
MED

30,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 135°315°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD POOR
Latitude 36° 59' 38"N 36° 58' 60"N
Longitude 120° 07' 09"W 120° 06' 21"W
Elevation 250' 255'
Threshold Crossing Height 34 ft. AGL 34 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights MALSF
Centerline Lights
Runway End Identifier Lights Yes No
A110-2PARACHUTE JUMPING ON ARPT.
A110-3FOR CD CTC FRESNO APCH AT 559-454-9805.
A30-12/30OVERRUN 200 FT X 150 FT ASPH RY 12. OVERRUN 200 FT X 150 FT ASPH RY 30.
A42-30_CONDRUBBER BUILD-UP OBSCS CNTRLN MRKG.
A70-100LLFUEL AVBL 24 HRS WITH AUTOMATED CREDIT CARD.
A70-AJET A SINGLE POINT PRESSURE REFUELING AVBL VIA TRUCK.
A81-APTACTVT MIRL RY 12/30; PAPI RYS 12 & 30, REIL RY 12, MALSF RY 30 AND WIND TEE - CTAF.
A96ULTRALIGHT ACTIVITY ON AND IN VICINITY OF ARPT; ULTRALIGHT FLY PATTERN 500' AGL NE OF RWY 12/30.
MADERA MUNI (ICAO: KMAE, IATA: MAE) is a public airport located in MADERA, CA, US.
