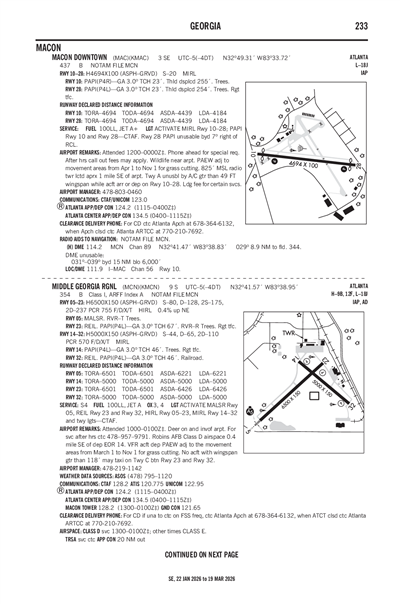

MACON DOWNTOWN - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMAC
ICAO KMACIATA MACLocal MAC
MACON DOWNTOWN
PublicPUB

3 miles SE of MACON, GA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 49' 18"N 83° 33' 43"W
Elevation
437' MSL
Pattern Alt
1437' MSL
Mag Variation
6°W
Declination
6°W
Fuel
JET A (FSII), 100LL
FSS
MACON (MCN)
Sectional
ATLANTA
ARTCC
ATLANTA (ZTL)
Data Effective
2/19/26-3/19/26
KMCN (9nm) MVFR
11:53 PM EST
Mist
Clear
4sm
51°F
51°F
30.31"Hg
130° 3kts
AO2 SLP263 T01060106 401670106
METAR KMCN 040453Z AUTO 13003KT 4SM BR CLR 11/11 A3031 RMK AO2 SLP263 T01060106 401670106
+ Add Your Business

KMAC FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 123.0
ACTVT MIRL AND PAPI RY 10/28 - CTAF.
UNICOM 123.0

Approach

ATLANTA APPROACH 124.2

Departure

ATLANTA DEPARTURE 124.2

Center

ATLANTA CENTER 134.5
LOW, ATLANTA LARGE TRACON PROVIDES APCH/DEP SVC 0615-2300 ON FREQ 124.2; ATLANTA ARTCC PROVIDES APCH/DEP SVC 2300-0615 ON FREQ 134.5/360.75 (MACON RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KMCN (9nm)
Tue, 3/3 6:41 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
MVFR
7:00 PM EST - 11:00 PM EST
Overcast 2,500'
6sm
090° 5kts
VFR
11:00 PM EST - 3:00 AM EST
Scattered 10,000'
Scattered 700'
6sm
090° 3kts
IFR
3:00 AM EST - 11:00 AM EST
Mist
Broken 600'
Scattered 300'
3sm
Calm
LIFR
Temporary 5:00 AM EST - 9:00 AM EST
Fog
Overcast 300'
0.5sm
Calm
MVFR
11:00 AM EST - 1:00 PM EST
Broken 1,000'
Scattered 500'
6sm
140° 3kts
VFR
1:00 PM EST - 7:00 PM EST
Scattered 12,000'
Scattered 1,500'
6sm
130° 4kts
TAF KMCN 032341Z 0400/0424 09005KT P6SM OVC025
   FM040400 09003KT P6SM SCT007 SCT100
   FM040800 00000KT 3SM BR SCT003 BKN006
   TEMPO 0410/0414 1/2SM FG OVC003
   FM041600 14003KT P6SM SCT005 BKN010
   FM041800 13004KT P6SM SCT015 SCT120
KMAC
EffectiveExpiresCategoryNOTAM
Domestic
2/23/26
1104Z
!MCN 02/613 MAC NAV ILS RWY 10 DME NOT MNT 2602231104-2603252359EST
2/17/26
2030Z
5/18/26
0500Z
!MCN 02/438 MAC OBST TOWER LGT (ASR 1207430) 325556.40N0833446.90W (6.7NM N MAC) 624.0FT (210.0FT AGL) U/S 2602172030-2605180500
2/13/26
1708Z
3/30/26
1707Z
!MCN 02/352 MAC OBST TOWER LGT (ASN 2023-ASO-29416-OE) 330601N0833701W (16.9NM N MAC) 931FT (290FT AGL) U/S 2602131708-2603301707
2/3/26
1052Z
5/4/26
0500Z
!MCN 02/062 MAC OBST TOWER LGT (ASR 1019710) 325319.90N0834526.10W (10.6NM WNW MAC) 804.1FT (288.1FT AGL) U/S 2602031052-2605040500
1/30/26
1727Z
3/31/26
0459Z
!MCN 01/795 MAC AD AP ABN NOT STD NOT ROTATING 2601301727-2603310459
1/30/26
1726Z
3/31/26
0459Z
!MCN 01/794 MAC TWY ALL EDGE LGT NOT STD 2601301726-2603310459
1/28/26
1505Z
3/14/26
0500Z
!MCN 01/705 MAC OBST TOWER LGT (ASR 1039150) 324116.40N0832641.30W (9.9NM SE MAC) 987.2FT (452.1FT AGL) U/S 2601281505-2603140500
1/2/26
1016Z
4/2/26
2359Z
!MCN 01/027 MAC OBST TOWER LGT (ASR 1017282) 324915.60N0833732.50W (3.2NM W MAC) 629.9FT (315.0FT AGL) U/S 2601021016-2604022359
FDC
2/24/26
0033Z
!FDC 6/9005 MAC IAP MACON DOWNTOWN, MACON, GA.
LOC RWY 10, AMDT 9...
RADAR REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
DBN TACAN OUT OF SERVICE. 2602240033-2603230033EST
2/9/26
1414Z
!FDC 6/1417 MAC IAP MACON DOWNTOWN, MACON, GA.
LOC RWY 10, AMDT 9...
RADAR REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
DBN TACAN OUT OF SERVICE. 2602091414-2604011414EST
1/14/26
1355Z
!FDC 6/3268 MAC IAP MACON DOWNTOWN, MACON, GA.
LOC RWY 10, AMDT 9...
DME REQUIRED.
2601141355-2801141355EST
No
0700-1900
PHONE AHEAD FOR SPECIAL REQUEST. AFTER HRS CALL OUT FEES MAY APPLY.
MACON-BIBB COUNTY CONSOLIDATED GOVT
700 POPULAR STREET
MACON, GA 31201
Phone: 478-751-7170
DOUG FAOUR
1000 TERMINAL DRIVE SUITE 100
MACON, GA 31297
Phone: 478-803-0460
MACON FSS (MCN)
Toll Free: 1-800-WX-BRIEF
MCN
--
ACTVT MIRL AND PAPI RY 10/28 - CTAF.
N/A
Yes - Lighted
Yes
Yes
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Pilot Instruction

Runway 10/28

4694 ft. x 100 ft.
ASPH
Excellent
GRVD
MED

20,000lbs
--
--
--
  Runway 10 Runway 28
True Heading 96°276°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 49' 23"N 32° 49' 18"N
Longitude 83° 34' 15"W 83° 33' 21"W
Elevation 409' 412'
Threshold Crossing Height 23 ft. AGL 23 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2825 FT MSL RADIO TWR LCTD APRXLY 1 MILE SE OF ARPT.
A110-4WILDLIFE NEAR ARPT.
A110-5PDEW ADJ TO MOVEMENT AREAS FRM APR 1 TO NOV 1 FOR GRASS CUTTING.
A110-6FOR CD CTC ATLANTA APCH AT 678-364-6132, WHEN APCH CLSD CTC ATLANTA ARTCC AT 770-210-7692.
A110-7TWY A UNUSBL BY A/C GTR THAN 49 FT WINGSPAN WHILE ACFT ARR OR DEP ON RWY 10/28.
A15MIDDLE GEORGIA REGIONAL ARPT
A17-M1PHONE AHEAD FOR SPECIAL REQUEST. AFTER HRS CALL OUT FEES MAY APPLY.
A24FOR CERTAIN SVCS.
A43-28RWY 28 PAPI UNUSBL BYD 7 DEG RT OF RCL.
A57-10RWY 10 APPROACH SLOPE TO DSPLCD THR IS 22:1; TREES 643FT FROM DSPLCD THR 277FT RIGHT.
A81-APTACTVT MIRL AND PAPI RY 10/28 - CTAF.
E111EXISTED PRIOR TO 1959.
MACON DOWNTOWN (ICAO: KMAC, IATA: MAC) is a public airport located in MACON, GA, US.
