KLWV
LAWRENCEVILLE-VINCENNES INTL
PublicPUB

3 miles NE of LAWRENCEVILLE, IL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 45' 51"N 87° 36' 20"W
430' MSL
1430' MSL
01W
JET A, 100LL
SAINT LOUIS (STL)
ST LOUIS
INDIANAPOLIS (ZID)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

KLWV FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

ASOS

ASOS
618-943-5252
 118.0

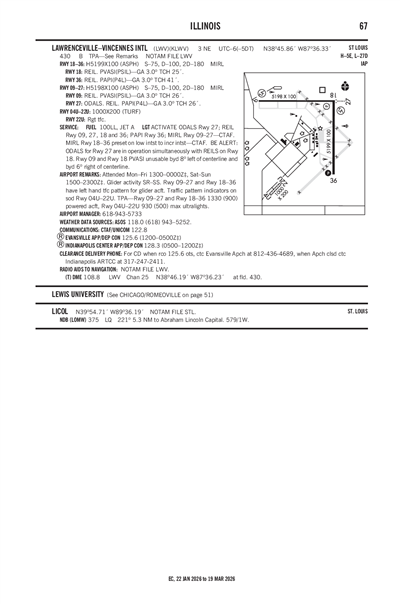

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
KLWV
Domestic
12/29/241101Z !LWV 12/010 LWV OBST TOWER LGT (ASR 1009536) 384321.00N0873915.00W (3.4NM SW LWV) 792.0FT (336.3FT AGL) U/S 2412291101-2501292359
1/24/232008Z !LWV 01/010 LWV RWY 27 ALS U/S 2301242008-PERM
FDC
5/18/231219Z !FDC 3/8218 LWV IAP LAWRENCEVILLE-VINCENNES INTL, LAWRENCEVILLE, IL.
RNAV (GPS) RWY 36, AMDT 1C...
RWY 36 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED.
2305181219-2505181219EST
5/18/231154Z !FDC 3/8197 LWV IAP LAWRENCEVILLE-VINCENNES INTL, LAWRENCEVILLE, IL.
RNAV (GPS) RWY 27, AMDT 1C...
RWY 27 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED.
CHANGE NOTE TO READ: INOP TABLE DOES NOT APPLY TO LPV ALL CATS AND LNAV CATS C AND D.
2305181154-2505181153EST
No
MON-FRI 0700-1800
SAT-SUN 0900-1700
BI-STATE AUTHORITY
13608 HANGAR RD
LAWRENCEVILLE, IL 62439
Phone: 618-943-5733
KURTIS SCHWARTZ
13608 HANGAR RD
LAWRENCEVILLE, IL 62439
Phone: 618-943-5733
SAINT LOUIS FSS (STL)
Toll Free: 1-800-WX-BRIEF
LWV
--
ACTVT ODALS RWY 27; REIL RWY 9, 27, 18 & 36; PAPI RWY 36; MIRL RWY 09/27 - CTAF. MIRL RWY 18/36 PRESET ON LOW INTST TO INCR INTST - CTAF.
N/A
Yes - Lighted
N/A
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04U/22U

1000 ft. x 200 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 04U Runway 22U
True Heading Not ListedNot Listed
Traffic Pattern Left Right
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 09/27

5198 ft. x 100 ft.
ASPH
Good
NONE
MED

75,000lbs
100,000lbs
180,000lbs
--
  Runway 09 Runway 27
True Heading 89°269°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 38° 46' 04"N 38° 46' 04"N
Longitude 87° 37' 09"W 87° 36' 03"W
Elevation 426' 430'
Threshold Crossing Height 26 ft. AGL 26 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator PSIL P4L
Approach Lights ODALS
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 18/36

5199 ft. x 100 ft.
ASPH
Good
NONE
MED

75,000lbs
100,000lbs
180,000lbs
--
  Runway 18 Runway 36
True Heading 179°359°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 38° 46' 05"N 38° 45' 13"N
Longitude 87° 36' 04"W 87° 36' 03"W
Elevation 429' 425'
Threshold Crossing Height 25 ft. AGL 41 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator PSIL P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1GLIDER ACTVTY SR-SS. RYS 09/27 & 18/36 HAVE LEFT HAND TFC PATTERN FOR GLIDER ACFT.
A110-4BE ALERT; ODALS FOR RY 27 ARE IN OPERATION SIMULTANEOUSLY WITH REILS ON RY 18.
A110-5FOR CD WHEN RCO 125.6 OTS, CTC EVANSVILLE APCH AT 812-436-4689, WHEN APCH CLSD CTC INDIANAPOLIS ARTCC AT 317-247-2411.
LAWRENCEVILLE-VINCENNES INTL (ICAO: KLWV, IATA: LWV) is a public airport located in LAWRENCEVILLE, IL.
