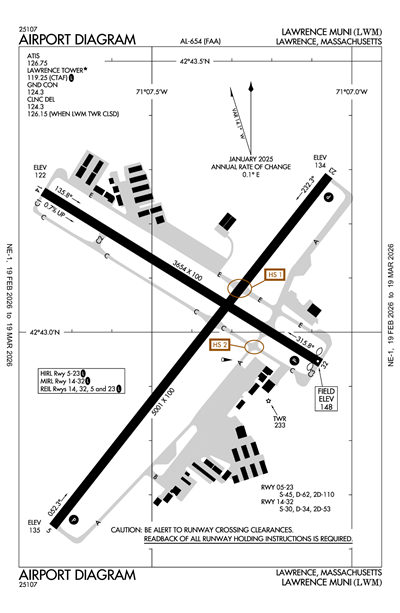

LAWRENCE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLWM
ICAO KLWMIATA LWMLocal LWM
LAWRENCE MUNI
PublicPUB

2 miles E of LAWRENCE, MA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 43' 01"N 71° 07' 25"W
Elevation
148' MSL
Pattern Alt
1148' MSL
Mag Variation
14°W
Declination
15°W
Fuel
JET A, JET A (FSII), 100LL
FSS
BRIDGEPORT (BDR)
Sectional
NEW YORK
ARTCC
BOSTON (ZBW)
Data Effective
2/19/26-3/19/26
KLWM IFR
8:54 PM EST
Mist and Unknown Precipitation
Overcast 500'
3sm
30°F
29°F
30.28"Hg
Calm
AO2 UPB39FZRAE39 CIG 004V009 SLP255 P0008 I1004 T10111017
METAR KLWM 040154Z 00000KT 3SM UP BR OVC005 M01/M02 A3028 RMK AO2 UPB39FZRAE39 CIG 004V009 SLP255 P0008 I1004 T10111017
+ Add Your Business

KLWM FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 126.75
ASOS (978) 687-8017, ASOS HRS 2200-0700.

Common

CTAF 119.25
ACTVT REIL RWY 05, 23, 14 & 32; PAPI RWY 05, 23 & 32; HIRL RWY 05/23; MIRL RWY 14/32 - CTAF.
UNICOM 122.8

Clearance

Clearance Delivery 124.3
Clearance Delivery 126.15
WHEN LWM TWR CLSD

Ground

LAWRENCE GROUND 124.3
0700-2200

Tower

LAWRENCE TOWER 119.25
0700-2200

Arrival

DREEM STAR 119.0
DREEM STAR 124.4
ZELKA STAR 124.4

Approach

BOSTON APPROACH 124.4

Departure

BOSTON DEPARTURE 124.4

Terminal Area Forecast

KBED (17nm)
Tue, 3/3 6:23 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
MVFR
7:00 PM EST - 10:00 PM EST
Light Freezing Rain and Ice Pellets and Mist
Overcast 1,500'
3sm
100° 3kts
IFR
10:00 PM EST - 3:00 AM EST
Light Freezing Rain and Mist
Overcast 800'
1sm
Calm
IFR
3:00 AM EST - 6:00 AM EST
Mist
Overcast 700'
1sm
250° 3kts
VFR
6:00 AM EST - 7:00 PM EST
Scattered 20,000'
6sm
280° 4kts
TAF KBED 032323Z 0400/0424 10003KT 3SM -FZRAPL BR OVC015
   FM040300 00000KT 1SM -FZRA BR OVC008
   FM040800 25003KT 1SM BR OVC007
   FM041100 28004KT P6SM SCT200
KLWM
EffectiveExpiresCategoryNOTAM
Domestic
2/25/26
0126Z
2/25/26
1400Z
!LWM 02/071 LWM AD AP SFC COND NOT REP 2602250126-2602251400
2/25/26
0125Z
2/26/26
0125Z
!LWM 02/070 LWM APRON NORTH RAMP FICON 5IN DRY SN OBS AT 2602250125. 2602250125-2602260125
2/25/26
0124Z
3/1/26
2359Z
!LWM 02/069 LWM APRON MAIN RAMP 15FT SNOWBANKS ADJ 2602250124-2603012359
2/25/26
0123Z
3/1/26
2359Z
!LWM 02/068 LWM TWY ALL 6FT WINDROWS ADJ 2602250123-2603012359
2/25/26
0123Z
3/1/26
2359Z
Runway!LWM 02/067 LWM RWY 05/23 7FT WINDROWS ADJ 2602250123-2603012359
2/25/26
0122Z
3/1/26
2359Z
Runway!LWM 02/066 LWM RWY 14/32 6FT WINDROWS ADJ 2602250122-2603012359
2/24/26
0000Z
2/28/26
2359Z
!LWM 02/064 LWM TWY ALL 5FT WINDROWS ADJ 2602240000-2602282359
2/24/26
0000Z
2/28/26
2359Z
Runway!LWM 02/063 LWM RWY 14/32 5FT WINDROWS ADJ 2602240000-2602282359
2/23/26
2359Z
2/28/26
2359Z
Runway!LWM 02/061 LWM RWY 05/23 5FT WINDROWS ADJ 2602232359-2602282359
2/21/26
0134Z
3/2/26
2359Z
!LWM 02/048 LWM AD AP SIGNS OBSC 2602210134-2603022359
Yes
0700-2200
CITY OF LAWRENCE
CITY HALL 200 COMMON ST
LAWRENCE, MA 08140
Phone: 978-620-3014
FRANCISCO A. URENA
492 SUTTON ST
NO. ANDOVER, MA 01845
Phone: 978-794-5880
BRIDGEPORT FSS (BDR)
Toll Free: 1-800-WX-BRIEF
LWM
--
ACTVT REIL RWY 05, 23, 14 & 32; PAPI RWY 05, 23 & 32; HIRL RWY 05/23; MIRL RWY 14/32 - CTAF.
N/A
Yes
No
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Ambulance
Cargo Handling
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 05/23

5001 ft. x 100 ft.
ASPH
Good
GRVD
HIGH

45,000lbs
62,000lbs
110,000lbs
--
  Runway 05 Runway 23
True Heading 38°218°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 42° 42' 38"N 42° 43' 17"N
Longitude 71° 07' 45"W 71° 07' 03"W
Elevation 135' 134'
Threshold Crossing Height 55 ft. AGL 55 ft. AGL
Visual Glide Path Angle 3° 3.7°
Visual Slope Indicator P4R P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 14/32

3654 ft. x 100 ft.
ASPH
Fair
NONE
MED

30,000lbs
34,000lbs
53,000lbs
--
  Runway 14 Runway 32
True Heading 122°302°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 42° 43' 16"N 42° 42' 57"N
Longitude 71° 07' 46"W 71° 07' 05"W
Elevation 122' 148'
Threshold Crossing Height -- 32 ft. AGL
Visual Glide Path Angle -- 4°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1HILL 5400 FT SE & STANDPIPE 7200 FT NE; LGTD.
A110-13WILDLIFE ON & INVOF ARPT.
A110-5LGTD STACK 296 FT MSL 1/2 MI NW AER 23.
A110-6CLSD TFC PAT, INITIATE TURN-OUT AT 700 FT AGL.
A110-7USE RSNBL EFFORTS TO MNTN MANUFACTURER'S RCMDD BEST ROC.
A24LNDG FEE FOR ACFT REGISTERED TO CORPORATION ONLY.
A57-32APCH RATIO 50:1 TO DTHR.
A81-APTACTVT REIL RWY 05, 23, 14 & 32; PAPI RWY 05, 23 & 32; HIRL RWY 05/23; MIRL RWY 14/32 - CTAF.
E111ESTABD PRIOR TO 1959.
LAWRENCE MUNI (ICAO: KLWM, IATA: LWM) is a public airport located in LAWRENCE, MA, US.
