iFlightPlanner



...

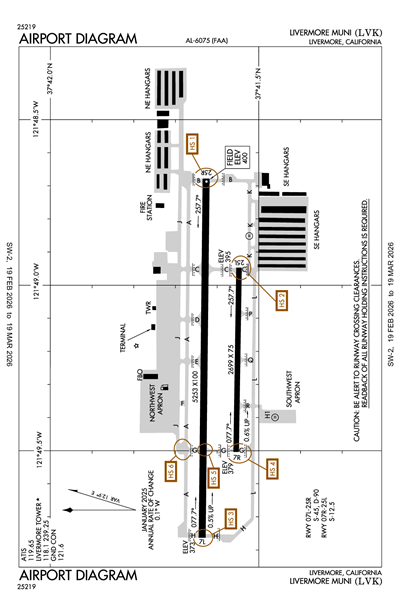

LIVERMORE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLVK
ICAO KLVKIATA LVKLocal LVK
LIVERMORE MUNI
PublicPUB

3 miles W of LIVERMORE, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 41' 36"N 121° 49' 13"W
Elevation
400' MSL
Pattern Alt
1400' MSL
Mag Variation
13°E
Declination
16°E
Fuel
JET A, 100LL
FSS
OAKLAND (OAK)
Sectional
SAN FRANCISCO
ARTCC
OAKLAND (ZOA)
Data Effective
2/19/26-3/19/26
KLVK VFR
8:53 PM PST
Clear
10sm
53°F
49°F
30.12"Hg
Calm
AO2 SLP196 T01170094
METAR KLVK 040453Z 00000KT 10SM CLR 12/09 A3012 RMK AO2 SLP196 T01170094
+ Add Your Business

KLVK FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 119.65
(925) 447-9516
ASOS (925) 606-5412

Common

CTAF 118.1
UNICOM 122.95

Ground

LIVERMORE GROUND 121.6
0700-2100

Tower

LIVERMORE TOWER 118.1
0700-2100

Approach

NORCAL APPROACH 123.85
RWY 07L/25R, 07R/25L

Departure

NORCAL DEPARTURE 123.85
RWY 07L, 07R
NORCAL DEPARTURE 125.35
RWY 25L, 25R

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Instrument Approach

Hotspot

Terminal Area Forecast

KLVK
Tue, 3/3 3:27 PM PST
Tue, 3/3 4:00 PM PST - Wed, 3/4 4:00 PM PST
VFR
4:00 PM PST - 4:00 AM PST
Sky Clear
6sm
270° 6kts
MVFR
4:00 AM PST - 10:00 AM PST
Broken 1,000'
6sm
250° 5kts
VFR
10:00 AM PST - 4:00 PM PST
Scattered 2,000'
6sm
270° 15kts
Gusts 25kts
TAF KLVK 032327Z 0400/0424 27006KT P6SM SKC
   FM041200 25005KT P6SM BKN010
   FM041800 27015G25KT P6SM SCT020
KLVK
EffectiveExpiresCategoryNOTAM
Domestic
2/23/26
0020Z
!LVK 02/017 LVK NAV ILS RWY 25R GP U/S 2602230020-2603042359EST
2/14/26
0000Z
12/5/26
2359Z
!LVK 02/013 LVK AIRSPACE SEE OAK 02/127 UAS DLY 0000-2359
2602140000-2612052359
2/13/26
2107Z
Runway!LVK 02/014 LVK RWY 25R RAI LGT U/S 2602132107-2603132359EST
12/11/25
2300Z
12/10/26
2300Z
!LVK 12/012 LVK TWY J CLSD TO ACFT WINGSPAN MORE THAN 50FT EXC XNG 2512112300-2612102300
12/5/25
0000Z
12/4/26
2359Z
!LVK 12/002 LVK AIRSPACE SEE SJC 12/012 UAS DLY 0000-2359
2512050000-2612042359
FDC
2/25/26
1700Z
3/3/26
2330Z
!FDC 6/9407 LVK ODP LIVERMORE MUNI, LIVERMORE, CA.
LIVERMORE THREE DEPARTURE ...
TAKEOFF RUNWAYS 7L/R NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
TAKEOFF RUNWAYS 25L/R DME REQUIRED EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SAC VORTAC OUT OF SERVICE. 2602251700-2603032330EST
Yes
MON-FRI 0730-1700
SAT-SUN 0700-1100
CITY OF LIVERMORE
1052 SOUTH LIVERMORE AVE
LIVERMORE, CA 94550
Phone: 925-960-4200
BENEDICT STUTH
680 TERMINAL CIRCLE
LIVERMORE, CA 94551
Phone: 925-960-8230
OAKLAND FSS (OAK)
Toll Free: 1-800-WX-BRIEF
LVK
--
ATC CNTL. WHEN ATCT CLSD, ACTVT MALSR RWY 25R; TWY LGTS - 118.1. HIRL RWY 07L/25R OPER LOW INTST; TO INCREASE INTST ACTVT 118.1. MIRL RWY 07R/25L OPER LOW INTST; NOT AVBL WHEN ATCT CLSD. PAPI RWY 07L AND 25R OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High Pressure
High Pressure
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 07L/25R

5253 ft. x 100 ft.
ASPH
Excellent
GRVD
HIGH

45,000lbs
90,000lbs
--
--
  Runway 07L Runway 25R
True Heading 90°270°
Traffic Pattern Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 37° 41' 38"N 37° 41' 38"N
Longitude 121° 49' 46"W 121° 48' 41"W
Elevation 373' 400'
Threshold Crossing Height 32 ft. AGL 47 ft. AGL
Visual Glide Path Angle 4° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights

Runway 07R/25L

2699 ft. x 75 ft.
ASPH
Excellent
NONE
MED

12,000lbs
--
--
--
  Runway 07R Runway 25L
True Heading 90°270°
Traffic Pattern Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 37° 41' 33"N 37° 41' 33"N
Longitude 121° 49' 30"W 121° 48' 57"W
Elevation 379' 395'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H1

24 ft. x 22 ft.
ASPH
Good
NONE


--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 37° 41' 26"N N/A
Longitude 121° 49' 24"W N/A
Elevation 382' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1BE ALERT TO CONSIDERABLE BIRD ACTIVITY ON & IN VICINITY OF ARPT.
A110-2DO NOT MISTAKE PARALLEL TAXIWAY N OF RWY 25R/7L AS RWY. NOISE SENSITIVE AREAS 3/4 MILE EAST & 2 MILES W OF ARPT.
A110-3EFFECTIVE RY GRADIENT RY 07L 0.52% UP; RY 07R 0.59% UP.
A110-4FOR CD WHEN ATCT IS CLSD CTC NORCAL APCH AT 916-361-0516.
A110-5PLS OBS "VOLUNTARY RESTRAINT FROM NIGHT FLYING 2200L-0600L POLICY."
A40-07L/25RRWY EDGE LGT ON LOW AND MED INTST LEVEL ON DOWNWIND LEG OF TFC PAT DFCLT TO SEE.
A58-07L+6 FT FENCE 180 FT FM RY END 400 FT LEFT OF EXTDD CNTRLN.
A81-APTATC CNTL. WHEN ATCT CLSD, ACTVT MALSR RWY 25R; TWY LGTS - 118.1. HIRL RWY 07L/25R OPER LOW INTST; TO INCREASE INTST ACTVT 118.1. MIRL RWY 07R/25L OPER LOW INTST; NOT AVBL WHEN ATCT CLSD. PAPI RWY 07L AND 25R OPR CONSLY.
LIVERMORE MUNI (ICAO: KLVK, IATA: LVK) is a public airport located in LIVERMORE, CA, US.
