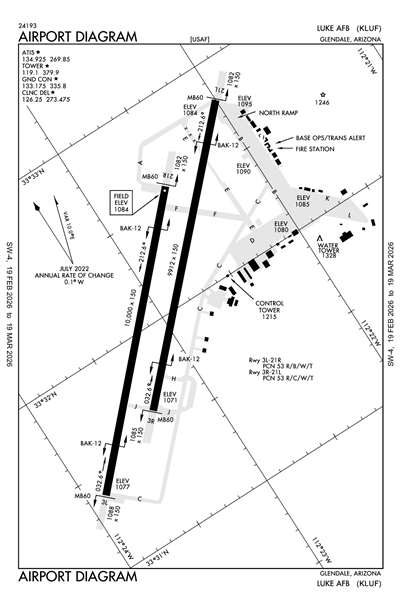

LUKE AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLUF
ICAO KLUFIATA LUFLocal LUF
LUKE AFB
PrivatePVT

7 miles W of GLENDALE, AZ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 32' 06"N 112° 22' 60"W
Elevation
1084' MSL
Pattern Alt
2084' MSL
Mag Variation
10°E
Declination
10°E
Fuel
JET A+, CILI
FSS
PRESCOTT (PRC)
Sectional
PHOENIX
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
2/19/26-3/19/26
KLUF VFR
6:55 PM MST
Clear
10sm
79°F
18°F
29.86"Hg
280° 5kts
AO2 SLP103 T02631078 $
METAR KLUF 040155Z AUTO 28005KT 10SM CLR 26/M08 A2986 RMK AO2 SLP103 T02631078 $
+ Add Your Business

KLUF FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 134.925
Hours: OPR 1330Z-0530Z MON-THU, 1330Z-0130Z FRI, CLSD WEEKENDS, HOL, AND AETC FAMILY DAYS.

Clearance

Clearance Delivery 126.25

Ground

LUKE GROUND 133.175
OPR 1330Z-0530Z MON-THU, 1330Z-0130Z FRI, CLSD WKEND, HOL, AND AETC FAMILY DAYS.

Tower

LUKE TOWER 119.1
OPR 1330Z-0530Z MON-THU, 1330Z-0130Z FRI, CLSD WKEND, HOL, AND AETC FAMILY DAYS.

Arrival

LENNI STAR 118.15

Approach

LUKE APPROACH 118.15
NORTH
LUKE APPROACH 125.45
Initial Contact - SOUTH

Departure

LUKE DEPARTURE 118.15
NORTH
LUKE DEPARTURE 125.45
Initial Contact - SOUTH

Center

LUKE CENTER 128.45
LOW, ALBUQUERQUE ARTCC (ZAB) FREQS 128.45/298.9 (PRESCOTT RCAG) USED FOR LENNI STAR.

Emergency

Emergency 121.5

Terminal Area Forecast

KLUF
Tue, 3/3 1:00 PM MST
Tue, 3/3 1:00 PM MST - Wed, 3/4 7:00 PM MST
VFR
1:00 PM MST - 8:00 PM MST
Sky Clear
6sm
29.82"Hg
VRB° 6kts
VFR
Becoming 8:00 PM MST - 9:00 AM MST
Scattered 25,000'
6sm
29.91"Hg
VRB° 6kts
VFR
Becoming 9:00 AM MST - 7:00 PM MST
Scattered 25,000'
Few 20,000'
6sm
29.82"Hg
VRB° 6kts
TAF KLUF 032000Z 0320/0502 VRB06KT 9999 SKC QNH2983INS
   BECMG 0403/0404 VRB06KT 9999 SCT250 QNH2990INS
   BECMG 0416/0417 VRB06KT 9999 FEW200 SCT250 QNH2981INS TX30/0323Z TN14/0413Z
KLUF
EffectiveExpiresCategoryNOTAM
Military
2/27/26
0001Z
2/28/26
0001Z
TaxiwayTWY E RESTRICTED FOR PRE-COORDINATED AIRCRAFT AND VEHICLES ONLY
2/26/26
1230Z
2/28/26
0530Z
MAIN RAMP ROW 8 RESTRICTED FOR PRE-COORDINATED AIRCRAFT AND VEHICLES ONLY
2/26/26
1230Z
2/28/26
0530Z
MAIN RAMP ROW 2 RESTRICTED FOR PRE-COORDINATED AIRCRAFT AND VEHICLES ONLY
2/24/26
1909Z
2/28/26
0130Z
AerodromeAERODROME INTERIOR/EXTERIOR FIRE SUPPRESSION CAPABILITY IS DOWNGRADED TO CRITICAL LEVEL OF SERVICE FOR CATEGORY 1 AND LARGER AIRCRAFT. DURING CRITICAL LEVEL OF SERVICE, ARFF RESPONSE OBJECTIVE OF INITIAL CONTROL OF THE POOL FIRE IS EXPECTED TO BE ACCOMPLISHED. FULL EXTINGUISHMENT OF THE POOL FIRE OR INTERIOR FIREFIGHTING IS LIMITED BASED ON THE AMOUNT OF WATER AVAILABLE AND AIRCRAFT SIZE. EFFORTS ARE CONCENTRATED ON LIFESAVING ACTIONS; HOWEVER, ASSETS ARE EXPECTED TO BE LOST.
2/24/26
1803Z
2/27/26
1803Z
M0285/26 NOTAMC M0284/26
2/24/26
1442Z
5/19/26
0530Z
OBST LOCATED 720FT EAST OF THE SOUTH RWY 03R/21L 3/6 RDR MISSING OBSTRUCTION LIGHT.
2/23/26
1514Z
2/26/26
1514Z
M0279/26 NOTAMC M0276/26
2/23/26
1444Z
2/26/26
1444Z
M0275/26 NOTAMC M0274/26
2/23/26
1358Z
2/26/26
1358Z
M0273/26 NOTAMC M0272/26
2/21/26
1300Z
4/30/26
2230Z
Obstruction!KLUF M0268/26 LUF OBST CRANE 333048N1122537W (1.55NM SW LUF) 1301FT MSL
(206FT AGL) ERECTED CRANE WILL BE LOWERED TO 140 FT AGL (1235 FT MSL) WHEN NOT IN USE. DLY 1300-2230 2602211300-2604302230
2/19/26
2101Z
5/20/26
0530Z
OBST LOCATED 200 FT EAST OF 2/8 RDR ON SOUTHERN END OF RWY 21R/03L
2/19/26
1300Z
3/6/26
2300Z
AerodromeAERODROME OBST TEMPORARY 177 FT AGL CRANE (1279 FT MSL) LOCATED 1.07 NM WEST OF APPROACH END RWY 03L AT 333125.60N/1122511.44W. CRANE WILL BE LOWERED TO 120 FT AGL (1222 FT MSL) WHEN NOT IN USE.
2/18/26
1922Z
3/31/26
0530Z
OBST 18 INCH TURBINE VENT LOCATED 350 FT EAST OF RWY 03R/21L CENTERLINE
2/18/26
1903Z
3/31/26
0530Z
OBST 3FT TALL DIRT MOUND WITH MANHOLE COVER/METAL GRATE ON TOP LOCATED 300 FT EAST OF RWY 03L/21R CENTERLINE ADJACENT TO NORTHERN PAPIS
2/18/26
1616Z
2/28/26
0130Z
OBST MANHOLE COVER 4 INCHES ABOVE GROUND LOCATED 60 FT NORTH OF THE RWY 03L/21R SOUTHERN WINDCONE
2/17/26
1508Z
4/30/26
0530Z
AerodromeAERODROME HAZARD USE CAUTION: BROKEN MANHOLE COVER OBSTRUCTION LOCATED 500FT NORTH OF INTERIOR TWY J DIRECTIONAL SIGN AND ADJACENT TO RWY 03R/21L SHOULDER.
2/11/26
1448Z
5/8/26
0130Z
AerodromeAERODROME KLUF AIR TRAFFIC CONTROL LIVE WEATHER DEPICTIONS ARE UNRELIABLE AND UNUSABLE DUE TO FALSE WEATHER RETURNS ON RADAR SCOPE. EXPECT POSSIBLE DELAYS AND PILOT ASSISTANCE FOR WEATHER DEVIATIONS.
2/10/26
2100Z
2/27/26
2300Z
Obstruction!KLUF M0202/26 LUF OBST CRANE 343044N1122134E (1.76NM SE LUF) 1233FT MSL
(150FT AGL) ERECTED CRANES WILL BE LOWERED TO 1103FT MSL (20FT AGL) WHEN NOT IN USE. DLY 2100-2300 2602102100-2602272300
2/10/26
2036Z
4/30/26
0530Z
AerodromeAERODROME HAZARD USE CAUTION: RAISED MANHOLE COVER OBSTRUCTION LOCATED IN RWY 21L CLEAR ZONE
2/10/26
2021Z
4/20/26
0530Z
AerodromeAERODROME HAZARD USE CAUTION: BROKEN MANHOLE COVER OBSTRUCTION LOCATED IN RWY 21L CLEAR ZONE
2/5/26
2115Z
5/6/26
0530Z
Obstruction!KLUF M0195/26 LUF OBST POLE 333237N1122158E (.27NM E LUF) 1181FT MSL
(104FT AGL) LGTD EAST OF RWY 21L CENTERLINE 2602052115-2605060530
2/5/26
2114Z
5/6/26
0530Z
Obstruction!KLUF M0194/26 LUF OBST POLE 333237N1122158W (.20NM E LUF) 1181FT MSL
(104FT AGL) LGTD EAST OF RWY 21L CENTERLINE 2602052114-2605060530
2/5/26
2114Z
5/6/26
0530Z
Obstruction!KLUF M0193/26 LUF OBST POLE 333234N1122157W (.23NM E LUF) 1180FT MSL
(104FT AGL) LGTD EAST OF RWY 21L CENTERLINE 2602052114-2605060530
2/3/26
1330Z
4/25/26
0130Z
Taxiway!KLUF M0166/26 LUF TWY L CLSD ALONG ROWS 23 AND 24. 2602031330-2604250130
2/2/26
1330Z
4/25/26
0130Z
MAIN RAMP ROWS 23 AND 24 CLSD FOR CONSTRUCTION.
2/2/26
1330Z
4/25/26
0130Z
MAIN RAMP ROWS 22 AND 25 RESTRICTED TO TOW IN AND TOW OUT ONLY.
1/21/26
1400Z
2/28/26
2300Z
OBST TEMPORARY 200 FT AGL CRANE (1296-1318 FT MSL) LOCATED 1.62-2.12 NM WEST SOUTHWEST OF APPROACH END RWY 03L AT NEAREST POINT 333045.50N/1122541.90W.
1/15/26
1706Z
4/15/26
0530Z
AerodromeAERODROME BUGGS AND FLIER TRANSITIONS FOR THE BUSCO NINE DEPARTURE TEMPORARILY UNUSABLE DUE TO BXK TACAN AZM OUTAGE, EXPECT RADAR VECTORS
12/19/25
1200Z
2/27/26
2359Z
Obstruction!KLUF M1772/25 LUF OBST CRANE 333040N1122558W (1.89NM SW LUF) 1308FT MSL
(212FT AGL) ERECTED CRANE WILL BE LOWERED TO 1274 MSL (178 FT AGL) WHEN NOT IN USE DLY 1200-2359 2512191200-2602272359
Yes
MON-THU 1330-0530Z
FRI 1330-0130Z
CLSD WKEND, HOL & AETC FAMILY DAYS.
USAF
LUKE AFB
GLENDALE, AZ 85301
Phone: 623-856-1110
BASE OPERATIONS
LUKE AFB
GLENDALE, AZ 85301
Phone: 623-856-7131
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
LUF
--
AFLD UNLGT WHEN CLSD.
DUSK-0530Z MON-THUR, DUSK-0130Z FRI.
N/A
Yes
No
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Cargo Handling

Runway 03L/21R

10000 ft. x 150 ft.

CONC
GRVD
HIGH
53/R/B/W/T
--
--
--
--
  Runway 03L Runway 21R
True Heading 43°223°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 33° 31' 23"N 33° 32' 36"N
Longitude 112° 23' 55"W 112° 22' 35"W
Elevation 1,077' 1,084'
Threshold Crossing Height 49 ft. AGL 47 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 03R/21L

9912 ft. x 150 ft.

CONC
GRVD
HIGH
53/R/C/W/T
--
--
--
--
  Runway 03R Runway 21L
True Heading 43°223°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 33° 31' 37"N 33° 32' 49"N
Longitude 112° 23' 24"W 112° 22' 04"W
Elevation 1,071' 1,084'
Threshold Crossing Height 51 ft. AGL 47 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights No No
Runway End Identifier Lights No No
A110-100CTN ON FNL USE DUE TO VFR FLYWAYS.
A110-101RSTD: PPR ALL ACFT - D896-7131/ C623-856-7131/7132; ADHERE TO ARR BLOCK TIME +/- 30 MIN OF SKED LDG. PPR NOT ISSUED MORE THAN 7 DAYS OUT OR LESS THAN 24 HR OF ARR DATE.
A110-21RSTD: HOVER LDG NA WO ATCT PERM.
A110-40TSNT MUST COORD APVL FOR LCL SORTIES PRIOR TO ARR. TSNT CLASSIFIED STORAGE NA AT AMOPS; CTC COMMAND POST FOR STORAGE - D896-5600/C623-856-5600.
A110-42RSTD: ALL ACFT REQ FLT PLAN PRIOR TO DEP.
A110-43RSTD: CIV PRAC APCH NA.
A110-44CTN: JET TRNG ACT.
A110-46CTN: HYDROPLANING PSBL ALL RWYS WHEN WET; MOWERS WI 100 FT OF RWYS & TWYS 1530-0001Z MON-FRI.
A110-52NOISE ABATEMENT; NOISE SENSITIVE AREA 5 NM NE.
A110-55JASU: 2(AM32A-60A) 2(MC-1A) FUEL: A++ FLUID - SP PRESAIR LPOX LOX.
A110-56OIL: O-128-PACKAGED ONLY, RQR HAND TRANSFER; 133-148-156 SOAP.
A110-57TRAN ALERT; LTD PRKG; EXP UP TO 4 HR DLA. FLW ME & MIN FLEET SVC AVBL - 24 HR PPR - AMOPS; F16 ENG TSNT SUPPORT NA.
A110-67CTN: 90 FT LGT POLES NEAR FIRE TRNG FAC 1358.3 FT FM RWY 21R CNTRLN.
A110-69MISC: FOUR ENG ACFT WHEN AUTH SHUT DOWN OUTBOARD ENG AFT LNDG PRIOR TO TAXI; KC130 OR LRGR EXP BACK TAXI AFT LNDG RWY 21L/R; USE TWY B TO TSNT PRKG.
A110-70SVC-LGT: PAPI TOUCHDOWN POINT BYD THR; RWY 03L 941 FT; RWY 03R 948 FT; RWY 21L 942 FT; RWY 21R 937 FT. RWY THR LGTS GATED.
A110-77TWY H RSTRD TO FIGHTER OR SMLR.
A110-79CSTMS/AG/IMG: 24 HR PPR - D896-6322/C623-856-6322. CUST & IMB NA FOR SPACE AVBL AND CIV PAX. PAX TRML & SPACE AVBL PAX NA. CIV PAX PROCESS AT APVD BOARDING POINT PRIOR TO ARR.
A110-86TRANS ALERT & N RAMP APVL RQR - AMGR.
A110-87SERVICE-A GEAR: NA WHEN AFLD CLSD; RWY 03L/21R: APCH & DEP END BAK-12A RAISED POSN WITH 8 PT TIE DOWNS; DEP END MB60 IN OVRN RAISED POSN. RWY 03R/21L: DEP END BAK-12A & MB60 IN OVRN RAISED POSN; APCH END BAK-12A IN RAISED POSN WITH 30 MIN PN. DURG EXTN SINGLE RWY OPS APP & DEP END BAK-12B & DEP END MB60 RAISED POSN FOR OPEN RWY. ALL 8 BAK-12 SHELTERS 200 FT FM RWY CNTRLN.
A110-88SVC: TSNT FUEL REQ 72 HR PPR OR EXP +3 HR DLA.
A110-90BASH PHASE I: SEP-JUN; PHASE II: JUL-AUG.
A110-91RWY 03R/21L & RWY 03L/21R BAK-12 SHELTERS 8 TOTAL 200 FT FM RWY CNTRLN.
A110-93ARFF STATUS LEVEL 3 WKEND, HOL & DOWN DAYS.
A110-94HOP OVR RAISED MB60 ARRESTING SYS RMN 500 FT UNTIL 1000 FT PAST RWY THR.
A110-95WX OPS 1000-0530Z MON-THU; 1000-0130Z FRI OR UNTIL CLSD; SDBY WKEND, HOL & 56FW TRNG DAYS. WX FLT D896-2992/C623-856-2992; AFT HR SDBY - COMD POST D896-5600/C623-856-5600.
A110-98TSNT FIGHTER ACFT 2 OR MORE REQ 15 MIN BTW ARR.
A110-99CTN: HOT AIR BLN INVOF AUX1 FLD AT OR BLW 5000 FT MSL.
A15RAPCON - 623-856-6448.
A17-M1CLSD WKEND, HOL & AETC FAMILY DAYS.
A26-CRDCD LEVEL ARFF CPBLTYS CAT 1-7; CRITICAL LEVEL ARFF CPBLTYS CAT 8-10; WKEND & HOL FURTHER RDC CPBLTYS. SVR RISK LOSS; ARFF NOT EXPD TO EXTINGUISH INTERIOR FIRE OR SUCCESSFUL RESCUE OPS. LTD EXTERIOR ARFF PERFORMED - AMGMT TO VERIFY.
A30-03R/21LCTN: LGT POLE 1200 FT SE CNTRLN 456 FT & 676 FT FM RWY 21L THR; LGT POLE 1430 FT SW CNTRLN 676 FT FM RWY 21L THR.
A81-APTAFLD UNLGT WHEN CLSD.
A81-BCNDUSK-0530Z MON-THUR, DUSK-0130Z FRI.
E147HOOK BASE LEG RWY 21 OUTSIDE HOUSING AREA, 1 NM. BASE LEG RWY 03 AVOID PHOENIX-GOODYEAR ARPT, 4 NM. OVERHEAD 300 KIAS, 3100 FT MSL TIL 5 DME THEN 2600 FT MSL - CONVENTIONAL 2100 FT MSL.
E60-03L_BAK-12BMB60 (35 FT OVRN) HOOK BAK-12B (1441 FT).
E60-03R_BAK-12BMB60 (33 FT OVRN) HOOK BAK-12B (1419 FT).
E60-21L_BAK-12BMB60 (34 FT OVRN) HOOK BAK-12B (1454 FT).
E60-21R_BAK-12BMB60 (35 FT OVRN) HOOK BAK-12B (1511 FT).
LUKE AFB (ICAO: KLUF, IATA: LUF) is a private airport located in GLENDALE, AZ, US.
