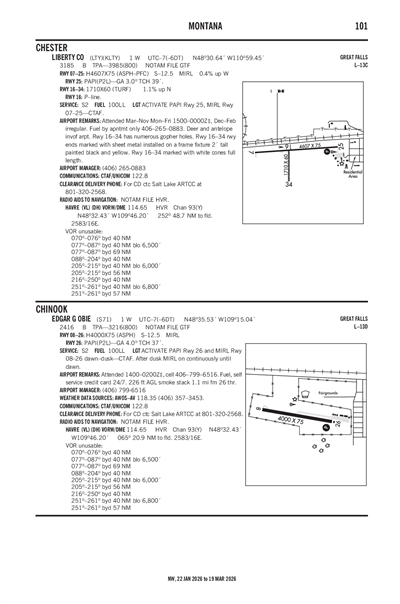

LIBERTY COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLTY
ICAO KLTYLocal LTY
LIBERTY COUNTY
PublicPUB

1 miles W of CHESTER, MT, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
48° 30' 39"N 110° 59' 27"W
Elevation
3185' MSL
Pattern Alt
3985' MSL
Mag Variation
12°E
Declination
14°E
Fuel
100LL
FSS
GREAT FALLS (GTF)
Sectional
GREAT FALLS
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
2/19/26-3/19/26
KSBX (35nm) MVFR
7:55 PM MST
Mist and Unknown Precipitation
Broken 4,000'
Broken 3,100'
4sm
30°F
30°F
29.74"Hg
330° 10kts
AO2 P0001
METAR KSBX 050255Z AUTO 33010KT 4SM UP BR BKN031 BKN040 M01/M01 A2974 RMK AO2 P0001
+ Add Your Business

KLTY FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
ACTVT PAPI RWY 25; MIRL RWY 07/25 - CTAF
UNICOM 122.8

FAA A/FD Pages

Terminal Area Forecast

KHVR (49nm)
Wed, 3/4 4:39 PM MST
Wed, 3/4 5:00 PM MST - Thu, 3/5 5:00 PM MST
VFR
5:00 PM MST - 3:00 AM MST
Overcast 6,000'
6sm
090° 11kts
MVFR
3:00 AM MST - 1:00 PM MST
Overcast 1,500'
Scattered 900'
6sm
360° 11kts
IFR
5:00 AM MST - 11:00 AM MST
Light Snow and Mist
Overcast 900'
1sm
Calm
MVFR
1:00 PM MST - 5:00 PM MST
Broken 2,500'
6sm
320° 11kts
MVFR
2:00 PM MST - 5:00 PM MST
Light Showers and Rain and Showers and Snow
Overcast 1,500'
5sm
Calm
TAF KHVR 042339Z 0500/0524 09011KT P6SM OVC060
   FM051000 36011KT P6SM SCT009 OVC015
   PROB30 0512/0518 1SM -SN BR OVC009
   FM052000 32011KT P6SM BKN025
   PROB30 0521/0524 5SM -SHRASN OVC015
KLTY
No NOTAM Available
No
MAR-NOV MON-FRI 0800-1700
DEC-FEB IREG
LIBERTY COUNTY
COUNTY COURTHOUSE PO BOX 459
CHESTER, MT 59522
Phone: 406-759-5365
JAMES DAHLEN
PO BOX 345
CHESTER, MT 59522
Phone: (406) 265-0883
GREAT FALLS FSS (GTF)
Toll Free: 1-800-WX-BRIEF
GTF
--
ACTVT PAPI RWY 25; MIRL RWY 07/25 - CTAF
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
Crop Dusting

Runway 07/25

4607 ft. x 75 ft.
ASPH
Good
PFC
MED

12,000lbs
--
--
--
  Runway 07 Runway 25
True Heading 86°266°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 48° 30' 39"N 48° 30' 42"N
Longitude 110° 59' 60"W 110° 58' 51"W
Elevation 3,185' 3,166'
Threshold Crossing Height -- 39 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 16/34

1710 ft. x 60 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 16 Runway 34
True Heading 180°360°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 48° 30' 41"N 48° 30' 24"N
Longitude 110° 59' 32"W 110° 59' 32"W
Elevation 3,173' 3,154'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1PHONE ON FIELD.
A110-3DEER & ANTELOPE INVOF ARPT.
A110-4FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
A16OR CALL 759-5188 (SHOP) LVE MSG.
A33-16/34_SURFHAS NUMEROUS GOPHER HOLES.
A42-16_MARKRY 16/34 MKD WITH WHITE CONES FULL LENGTH.
A70-100LLFUEL BY APNTMT ONLY 406-265-0883.
A81-APTACTVT PAPI RWY 25; MIRL RWY 07/25 - CTAF
A83SUPPLEMENTAL WINDCONE NE OF RY 07 THLD.
LIBERTY COUNTY (ICAO: KLTY, IATA: LTY) is a public airport located in CHESTER, MT, US.
