LOS BANOS MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLSN
ICAO KLSNIATA LSNLocal LSN
LOS BANOS MUNI
PublicPUB

1 miles W of LOS BANOS, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 03' 50"N 120° 52' 11"W
Elevation
121' MSL
Pattern Alt
921' MSL
Mag Variation
13°E
Declination
16°E
Fuel
JET A, 100LL
FSS
RANCHO MURIETA (RIU)
Sectional
SAN FRANCISCO
ARTCC
OAKLAND (ZOA)
Data Effective
2/19/26-3/19/26
KMCE (22nm) VFR
5:53 PM PST
Clear
10sm
66°F
51°F
30.05"Hg
330° 3kts
AO2 SLP175 T01890106
METAR KMCE 040153Z AUTO 33003KT 10SM CLR 19/11 A3005 RMK AO2 SLP175 T01890106
+ Add Your Business

KLSN FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 118.675
(209) 827-7084, (COMM_DECOMM_DATE) NON-FED AWOS-3.

Common

CTAF 122.8
MIRL RY 14/32 PRESET LOW INTST UNTIL 2400. TO INCR INTST AND ACTVT MIRL, REIL RY 14, RY 32 AND PAPI RY 14 AND RY 32 - CTAF.
UNICOM 122.8

Approach

NORCAL APPROACH 120.95

Departure

NORCAL DEPARTURE 120.95

Flight Service

Flight Service 122.1
(RIU), COMMUNICATIONS PRVDD BY FRESNO RADIO ON FREQ 122.1R (PANOCHE RCO).

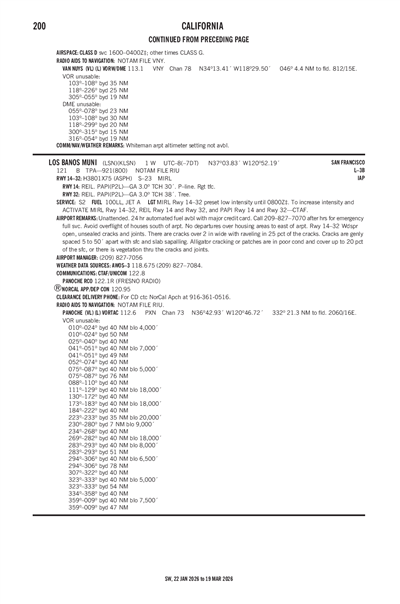

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KMCE (22nm)
Tue, 3/3 3:54 PM PST
Tue, 3/3 4:00 PM PST - Wed, 3/4 4:00 PM PST
VFR
4:00 PM PST - 4:00 AM PST
Sky Clear
6sm
VRB° 3kts
MVFR
4:00 AM PST - 7:00 AM PST
Mist
Sky Clear
4sm
VRB° 3kts
VFR
7:00 AM PST - 10:00 AM PST
Sky Clear
6sm
VRB° 3kts
VFR
10:00 AM PST - 4:00 PM PST
Few 25,000'
6sm
320° 11kts
TAF KMCE 032354Z 0400/0424 VRB03KT P6SM SKC
   FM041200 VRB03KT 4SM BR SKC
   FM041500 VRB03KT P6SM SKC
   FM041800 32011KT P6SM FEW250
KLSN
EffectiveExpiresCategoryNOTAM
Domestic
2/21/26
0220Z
4/6/26
0500Z
!RIU 02/170 LSN OBST TOWER LGT (ASR 1017174) 365714.30N1204917.30W (7.1NM SSE LSN) 582.0FT (415.0FT AGL) U/S 2602210220-2604060500
FDC
11/19/25
1358Z
!FDC 5/8515 LSN ODP LOS BANOS MUNI, LOS BANOS, CA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2...
RWY 14, STANDARD WITH MINIMUM CLIMB OF 217 FT PER NM TO 3900.
ALL OTHER DATA REMAINS AS PUBLISHED. 2511191358-2707011358EST
No
UNATNDD
CITY OF LOS BANOS
520 J STREET
LOS BANOS, CA 93635
Phone: 209-827-7034
MARC HEGUY
411 MADISON AVENUE
LOS BANOS, CA 93635
Phone: (209) 827-7056
RANCHO MURIETA FSS (RIU)
Toll Free: 1-800-WX-BRIEF
RIU
--
MIRL RY 14/32 PRESET LOW INTST UNTIL 2400. TO INCR INTST AND ACTVT MIRL, REIL RY 14, RY 32 AND PAPI RY 14 AND RY 32 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
None

Runway 14/32

3801 ft. x 75 ft.
ASPH
Fair
NONE
MED

23,000lbs
--
--
--
  Runway 14 Runway 32
True Heading 153°333°
Traffic Pattern Right Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 37° 04' 07"N 37° 03' 33"N
Longitude 120° 52' 22"W 120° 52' 01"W
Elevation 121' 121'
Threshold Crossing Height 30 ft. AGL 38 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1AVOID OVERFLIGHT OF HOUSES SOUTH OF ARPT.
A110-2NO DEPS OVER HOUSING AREAS TO EAST OF ARPT.
A110-3FOR CD CTC NORCAL APCH AT 916-361-0516.
A33-14/32_CONDWDSPR OPEN, UNSEALED CRACKS AND JOINTS. THERE ARE CRACKS OVER 2 INS WIDE WITH RAVELING IN 25 PCT OF THE CRACKS. CRACKS ARE GENLY SPACED 5 TO 50 FT APART WITH SFC AND SLAB SPALLING. ALLIGATOR CRACKING OR PATCHES ARE IN POOR COND AND COVER UP TO 20 PCT OF THE SFC, OR THERE IS VEGETATION THRU THE CRACKS AND JOINTS.
A70-100LL24 HR AUTOMATED FUEL AVBL WITH MAJOR CREDIT CARD. CALL 209-827-7070 AFTER HRS FOR EMERG FULL SRV.
A81-APTMIRL RY 14/32 PRESET LOW INTST UNTIL 2400. TO INCR INTST AND ACTVT MIRL, REIL RY 14, RY 32 AND PAPI RY 14 AND RY 32 - CTAF.
LOS BANOS MUNI (ICAO: KLSN, IATA: LSN) is a public airport located in LOS BANOS, CA, US.
