KLSB
ICAO KLSBIATA LSBLocal LSB
LORDSBURG MUNI
PublicPUB

1 miles SE of LORDSBURG, NM, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 20' 01"N 108° 41' 31"W
Elevation
4288' MSL
Pattern Alt
5288' MSL
Mag Variation
9°E
Declination
11°E
Fuel
JET A-1+, 100LL
FSS
ALBUQUERQUE (ABQ)
Sectional
ALBUQUERQUE
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
2/19/26-3/19/26
KLSB VFR
6:55 PM MST
Clear
10sm
66°F
18°F
30.00"Hg
290° 9kts
AO2
METAR KLSB 040155Z AUTO 29009KT 10SM CLR 19/M08 A3000 RMK AO2
+ Add Your Business

KLSB FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 118.1
(575) 542-3549

Common

CTAF 122.8
ACTVT MIRL RY 12/30 - CTAF.
UNICOM 122.8

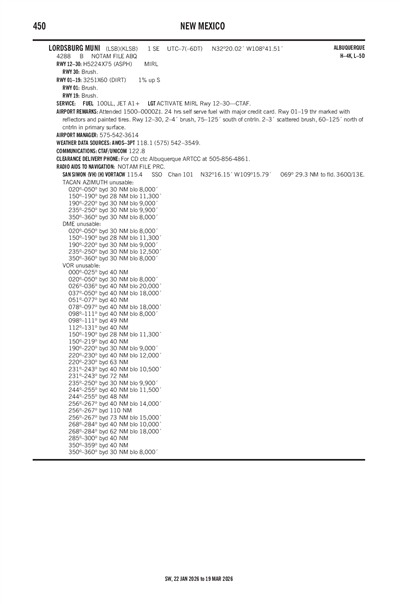

FAA A/FD Pages

Terminal Area Forecast

KDMN (50nm)
Tue, 3/3 4:31 PM MST
Tue, 3/3 5:00 PM MST - Wed, 3/4 5:00 PM MST
VFR
5:00 PM MST - 8:00 PM MST
Few 25,000'
6sm
260° 15kts
Gusts 23kts
VFR
8:00 PM MST - 5:00 PM MST
Few 25,000'
6sm
290° 7kts
TAF KDMN 032331Z 0400/0424 26015G23KT P6SM FEW250
   FM040300 29007KT P6SM FEW250
KLSB
EffectiveExpiresCategoryNOTAM
Domestic
2/20/26
1539Z
4/30/26
2300Z
!ABQ 02/230 LSB SVC AUTOMATED WX BCST SYSTEM WIND NOT AVBL 2602201539-2604302300
2/19/26
0938Z
4/5/26
0938Z
!ABQ 02/210 LSB OBST TOWER LGT (ASN 2024-WTW-9362-OE) 322012N1082914W (10.4NM E LSB) 5232FT (279FT AGL) U/S 2602190938-2604050938
1/16/26
0604Z
3/2/26
0501Z
!ABQ 01/156 LSB OBST WIND TURBINE LGT (ASN 2024-WTW-9361-OE) 321602N1082423W (15.1NM ESE LSB) 5012FT (279FT AGL) U/S 2601160604-2603020501
No
0800-1700
CITY OF LORDSBURG
409 W WABASH
LORDSBURG, NM 88045
Phone: 575-542-3421
FRITZ PLACENCIA
1000 AIRPORT ROAD
LORDSBURG, NM 88045
Phone: 575-542-3614
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
ABQ
--
ACTVT MIRL RY 12/30 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 01/19

3251 ft. x 60 ft.
DIRT
Good
NONE


--
--
--
--
  Runway 01 Runway 19
True Heading 15°195°
Traffic Pattern
Markings NONE NONE
Markings Condition FAIR FAIR
Latitude 32° 19' 50"N 32° 20' 21"N
Longitude 108° 41' 39"W 108° 41' 29"W
Elevation 4,288' 4,255'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12/30

5224 ft. x 75 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 12 Runway 30
True Heading 130°310°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 32° 20' 15"N 32° 19' 42"N
Longitude 108° 41' 52"W 108° 41' 05"W
Elevation 4,280' 4,277'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A110-2RWY 01/19 THR MARKED WITH REFLECTORS & PAINTED TIRES.
A110-3RWY 12/30, 2-4 FT BRUSH, 75-125 FT SOUTH OF CNTRLN. 2-3 FT SCATTERED BRUSH, 60-125 FT NORTH OF CNTRLN IN PRIMARY SURFACE.
A16ALT. PHONE: 575-519-2356 OR 575-313-3895.
A57-01CONTROLLING OBSTRUCTION EXCEEDS A 45 DEGREE SLOPE
A58-302 FT BRUSH 140-200 FT FM THR ACROSS APPROACH.
A70-100LL24 HRS SELF SERVE FUEL WITH MAJOR CREDIT CARD.
A75-HCALL AHEAD FOR HANGAR AVAILABILITY 575-542-3614.
A81-APTACTVT MIRL RY 12/30 - CTAF.
LORDSBURG MUNI (ICAO: KLSB, IATA: LSB) is a public airport located in LORDSBURG, NM, US.
