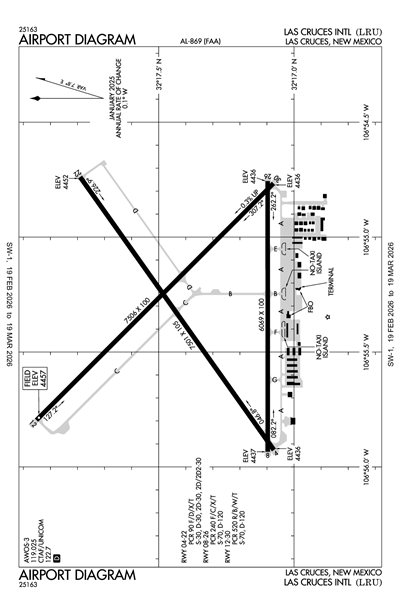

LAS CRUCES INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLRU
ICAO KLRUIATA LRULocal LRU
LAS CRUCES INTL
PublicPUB

8 miles W of LAS CRUCES, NM, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 17' 22"N 106° 55' 19"W
Elevation
4457' MSL
Pattern Alt
5457' MSL
Mag Variation
8°E
Declination
8°E
Fuel
JET A-1+, 100LL
FSS
ALBUQUERQUE (ABQ)
Sectional
ALBUQUERQUE
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
2/19/26-3/19/26
KLRU VFR
3:55 AM MST
Clear
10sm
48°F
17°F
30.06"Hg
310° 5kts
AO2 T00881084
METAR KLRU 041055Z AUTO 31005KT 10SM CLR 09/M08 A3006 RMK AO2 T00881084
+ Add Your Business

KLRU FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 119.025
(575) 526-4831

Common

CTAF 122.7
ACTVT MALSR RWY 30; MIRL RWY 04/22 & 8/26; HIRL RWY 12/30 - CTAF. REIL RWY 12 SS-SR. PAPI RWY 08, 26 & VASI RWY 22 ON CONSLY. MIRL RWY 08/26 PRESET LOW INTST; INCR INTST - CTAF.
UNICOM 122.7

Center

ALBUQUERQUE CENTER 128.2
LOW, APCH/DEP SVC PRVDD BY ALBUQUERQUE ARTCC (ABQ) ON FREQS 128.2/285.5 (EL PASO/B/ RCAG).

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Instrument Approach

Terminal Area Forecast

KLRU
Tue, 3/3 10:29 PM MST
Tue, 3/3 11:00 PM MST - Wed, 3/4 11:00 PM MST
VFR
11:00 PM MST - 1:00 PM MST
Few 25,000'
6sm
310° 6kts
VFR
1:00 PM MST - 11:00 PM MST
Scattered 25,000'
6sm
250° 12kts
Gusts 18kts
TAF KLRU 040529Z 0406/0506 31006KT P6SM FEW250
   FM042000 25012G18KT P6SM SCT250
KLRU
EffectiveExpiresCategoryNOTAM
Domestic
2/18/26
1043Z
4/4/26
1324Z
!LRU 02/017 LRU OBST TOWER LGT (ASR UNKNOWN) 320418.09N1065204.40W (13.3NM SSE LRU) 4925FT (705FT AGL) U/S 2602181043-2604041324
2/5/26
2054Z
6/5/26
2359Z
!LRU 02/011 LRU OBST TOWER LGT (ASR 1002663) 321533.30N1065832.00W (3.3NM SW LRU) 4828.1FT (402.9FT AGL) U/S 2602052054-2606052359
1/14/26
1312Z
Runway!LRU 01/006 LRU RWY 22 VASI U/S 2601141312-2607010559EST
1/8/26
1427Z
7/1/26
0559Z
!LRU 01/002 LRU TWY D BTN RWY 12/30 AND APCH END RWY 22 CLSD 2601081427-2607010559
6/29/25
1531Z
7/1/26
0559Z
Runway!LRU 06/026 LRU RWY 04/22 CLSD EXC XNG 2506291531-2607010559
No
ALL
CITY OF LAS CRUCES
PO BOX 20000
LAS CRUCES, NM 88004
Phone: (575) 541-2471
ANDY HUME
PO BOX 20000
LAS CRUCES, NM 88004
Phone: (575) 541-2473
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
LRU
--
ACTVT MALSR RWY 30; MIRL RWY 04/22 & 8/26; HIRL RWY 12/30 - CTAF. REIL RWY 12 SS-SR. PAPI RWY 08, 26 & VASI RWY 22 ON CONSLY. MIRL RWY 08/26 PRESET LOW INTST; INCR INTST - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High Pressure
High Pressure
Air Freight
Air Ambulance
Pilot Instruction
Aircraft Rental

Runway 04/22

7501 ft. x 105 ft.
ASPH
Poor
NONE
MED

30,000lbs
30,000lbs
30,000lbs
30,000lbs
  Runway 04 Runway 22
True Heading 55°235°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 32° 17' 04"N 32° 17' 47"N
Longitude 106° 55' 56"W 106° 54' 44"W
Elevation 4,436' 4,452'
Threshold Crossing Height -- 48 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 08/26

6069 ft. x 100 ft.
ASPH
Fair
NONE
MED

70,000lbs
120,000lbs
--
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD FAIR
Latitude 32° 17' 06"N 32° 17' 06"N
Longitude 106° 55' 56"W 106° 54' 45"W
Elevation 4,437' 4,436'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12/30

7506 ft. x 100 ft.
CONC
Good
GRVD
HIGH

70,000lbs
120,000lbs
--
--
  Runway 12 Runway 30
True Heading 135°315°
Traffic Pattern Left Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 32° 17' 57"N 32° 17' 05"N
Longitude 106° 55' 48"W 106° 54' 46"W
Elevation 4,457' 4,436'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-2BIRDS ON & INVOF ARPT SEP-MAR. UAS TRNG ON ARPT.
A110-7UAS TRNG & FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A2648 HR PPR FOR ACR ACFT WITH MORE THAN 30 PAX SEATS - 575-541-2471/2473.
A30-04/22ACR & ACFT OVER 30000 LBS NA.
A30-12/30RWY 30 CALM WIND RWY.
A33-04/22_CONDBLOCK CRACKING UP TO 3 IN WIDE CRACKS, RAVELING, AND WEATHERING.
A39-04/22PCR VALUE: 90/F/D/X/T
A39-08/26PCR VALUE: 240/F/C/X/T
A39-12/30PCR VALUE: 520/R/B/W/T
A81-APTACTVT MALSR RWY 30; MIRL RWY 04/22 & 8/26; HIRL RWY 12/30 - CTAF. REIL RWY 12 SS-SR. PAPI RWY 08, 26 & VASI RWY 22 ON CONSLY. MIRL RWY 08/26 PRESET LOW INTST; INCR INTST - CTAF.
LAS CRUCES INTL (ICAO: KLRU, IATA: LRU) is a public airport located in LAS CRUCES, NM, US.
