KLRF
LITTLE ROCK AFB
Private
PVT
1 miles SE of JACKSONVILLE, AR
View on
Map
Status
Operational
Coordinates
34° 55' 03"N
92° 08' 42"W
Elevation
312' MSL
Pattern Alt
1312' MSL
Mag Variation
01W
Fuel
None Listed
FSS
JONESBORO (JBR)
Sectional
MEMPHIS
ARTCC
MEMPHIS (ZME)
Data Effective
12/26/24-1/23/25
No METAR is available for this location.
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
KLRF FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
--
ATIS
ATIS
Hours: 1200-0500Z++ MON-FRI; 1500-2300Z++ SAT-SUN EXC HOL
119.175
Ground
GND/P
132.8
Tower
LCL/P
120.6
Other
ANG OPS
HAWG OPS
138.6
FAA A/FD Pages
FAA A/FD Page
Airport Diagrams

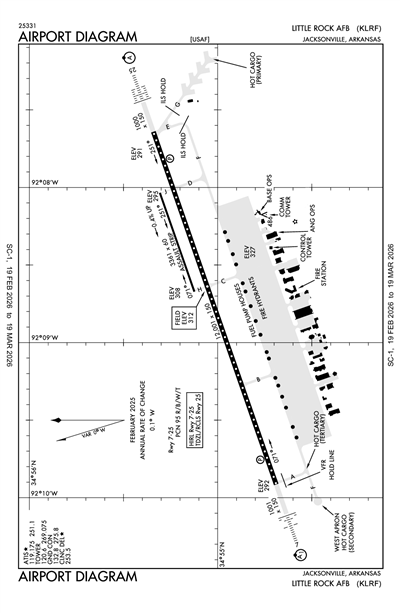

AIRPORT DIAGRAM
Airport Minimums
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
ILS OR LOC RWY 25
ILS RWY 25 (CAT II)
RNAV (GPS) RWY 07
RNAV (GPS) RWY 25
TACAN RWY 07
TACAN RWY 25
Terminal Area Forecast
No TAF is available for this location.
KLRF
Military
1/14/25
1644Z
AERODROME PARKING ROWS B-D
CLOSED
TO VEHICLE AND AIRCRAFT OPERATIONS.
1/14/25
1642Z
M0032/25 NOTAMC M0674/24
1/12/25
2158Z
M0030/25 NOTAMC M0029/25
1/10/25
2329Z
AERODROME TACAN SYSTEM UNMONITORED.
1/8/25
2321Z
AERODROME USE CAUTION: INCREASED BIRD/WILDLIFE ACTIVITY AT KLRF.
1/8/25
2321Z
AERODROME CAUTION BALL PARK LIGHT POLES DO NOT HAVE OBSTRUCTION LIGHTS
1/8/25
1527Z
PARKING SPOT U1 AND V1
CLOSED
FOR MEN AND EQUIPMENT. LOW PROFILE BARRICADES UNLIT
1/6/25
2300Z
USE CAUTION: LOGGING OPERATIONS ONGOING DAILY 0700L/1300Z - 1700L/2300Z THROUGH TAXIWAY GOLF. ESCORT PRESENT FOR FOD CONTROL.
1/3/25
1919Z
AERODROME ASSAULT ZONE RWY 071/251 LENGTH IS 3360 FT BY 60 FT WIDE.
12/27/24
1805Z
AERODROME TWY E ILS NOT ILLUMINATED
12/27/24
1726Z
AERODROME TWY G ILS SIGN NOT ILLUMINATED
12/20/24
0309Z
AERODROME ILS RWY 25 (CAT I) AVAILABLE. ILS RWY 25 (CAT II) UNAVAILABLE.
12/20/24
0028Z
AERODROME BARRICADES ON SPOTS BRAVO 3 AND BRAVO 4 UNLIT.
12/6/24
2256Z
AERODROME AIRFIELD FIRE FIGHTING (ARFF) AND RESCUE CAPABILITIES IS DOWNGRADED TO YELLOW-REDUCED-LEVEL OF SERVICE USAF CAT 3 (FOR C130) DUE TO PERSONNEL AND VEHICLE SHORTAGES. ALL AIRCRAFT MUST CONTACT FIRE DEPARTMENT AT 501-987-3010/3737 FOR INFORMATION AND GUIDANCE FOR AIRCRAFT SPECIFIC ARFF STATUS.
11/19/24
2136Z
AERODROME WIND DIRECTION INDICATOR FOR RUNWAY 25 APPROACH END UNSERVICEABLE.
ATC Tower
Yes
Attendance
ALL
ARPT NORMALLY CLSD FED HOL FR 0300Z++ THRU 1300Z++ SUCCEEDING DAY.
Owner
USAF, MAC
LITTLE ROCK AFB
JACKSONVILLE, AR 72076
Manager
CHIEF OF AFLD MANAGEMENT
LITTLE ROCK AFB
JACKSONVILLE, AR 72076
Phone: 501-987-3103
FSS
JONESBORO FSS (JBR)
Toll Free: 1-800-WX-BRIEF
NOTAM
LRF
Light Schedule
Sunset to Sunrise
Lights
--
Beacon
N/A
Wind Indicator
Yes
Segmented Cir.
No
Landing Fee
No
Parking
Hangar
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
Cargo Handling
Runway 07/25
Dimensions
12007 ft. x 150 ft.
Surface Type
CONC
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
HIGH
Pavement Class
95 /R/B/W/T
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 07
Runway 25
True Heading
71°
251°
Traffic Pattern
Left
Right
Markings
PIR
PIR
Markings Condition
GOOD
GOOD
Latitude
34° 54' 41"N
34° 55' 20"N
Longitude
92° 09' 56"W
92° 07' 39"W
Elevation
292'
291'
Threshold Crossing Height
50 ft. AGL
56 ft. AGL
Visual Glide Path Angle
2.83°
3°
Visual Slope Indicator
P4L
P4L
Approach Lights
ALSF1
ALSF2
Centerline Lights
Yes
Yes
Runway End Identifier Lights
No
No
Runway 071/251
Dimensions
3354 ft. x 60 ft.
Surface Type
Surface Cond
CONC
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 071
Runway 251
True Heading
71°
251°
Traffic Pattern
Left
Left
Markings
NONE
NONE
Markings Condition
Latitude
34° 55' 07"N
34° 55' 18"N
Longitude
92° 08' 41"W
92° 08' 03"W
Elevation
311'
311'
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
No
No
Runway End Identifier Lights
No
No
A110-1
RSTD: PPR EXCP AIREVAC & ARMED FORCES COURIER.
A110-11
RSTD: OFFL BUS ONLY 1700-2100Z++ WKD EXC AIREVAC AND ARMED FORCES CARRIER. OBTAIN PPR 72 HRS PRIOR TO ARRIVAL. CALL DSN 731-6123, PPR IS VALID +/- 30 MIN OF PROPOSED ETA.
A110-12
CAUTION: HI POTENTIAL FOR HYDROPLANING ON RWY 07-25 DUR PERIODS OF WET WX.
A110-15
CAUTION: NUMEROUS UNLGTD OBST LCTD PRIM SFC.
A110-16
CAUTION: NSTD RWY MRK- ASSAULT STRIP MRK (500' X 60') PAINTED ON RWY 25.
A110-18
MISC: ALL TRANSIENT ACFT CTC COMD POST 20 MIN PRIOR TO ARR.
A110-2
CAUTION: EXTV TURBO-PROP TRNG 1300-0600Z++ MON-FRI.
A110-21
SERVICE-LGT: SFL INTS UNCTL MAY BE TURNED OFF O/R.
A110-23
JASU: 5(A/M 32A-86).
A110-24
FUEL: A-MIN POL CAPABILITY 2200-0600Z++ MON-FRI, EXP 2-4 HR DELAY DUR LCL FLYING.
A110-25
FLUID: SP PRESAIR LHOX LOX.
A110-26
OIL: O-133-148-156.
A110-27
SERVICE-TRAN ALERT: SVC AVBL 1300-0100Z++ MON-FRI, NO WEEKEND SUPPORT. AFTER HRS SUPPORT FOR HIGHER HQ MSNS ONLY.
A110-32
CAUTION: RWY 25 CNTRLN MARKINGS OBSCURED BY RUBBER DEPOSITS.
A110-34
SERVICE-LGT: NSTD INFRA-RED LGT CO-LCTD WITH RWY 07, 25 AND 249 EDGE LGT AND ONE NSTD INFRA-RED STROBE LCTD END OF RWY 07 AND 249 OVRN. INFRA-RED STROBE LCTD END OF RWY 25 CO-LCTD WITH RWY END LGT. THESE LGT ARE VIS ONLY THRU NGT NVD.
A110-38
RSTD: DEGRADED FIREFIGHTING CAPABILITY FOR B-2, C-5, VC-25, E-4, KC-10, MD-11, 747 AND 777 ACFT - COORD 48H PRIOR TO ARR FOR PPR AND SVC. CONFIRM RESCUE AND FIRE FIGHTING AVBL PRIOR LDG OR TKOF.
A110-39
MISC: BACKUP WX OBSN VIEW LTD, RSTD FR 060 TO 280 BY FLIGHTLINE FAC AND TREES. ATC PERS IAW COOPERATIVE WX WATCH WILL ALERT WX PERS ON ANY UNREPORTED WX COND THAT COULD AFCT FLT SAFETY.
A110-4
RSTD: DEP ACFT REMAIN AT OR BLW 1400' TIL DEP END OF RWY. FTR ACFT UNABLE TO CTC DEP TIL AIRBORNE.
A110-41
MISC: LTD AIRCREW TRANSPORTATION WEEKENDS. TO ENSURE AIRCREW TRANSPORTATION AVBL UPON ARRIVAL, CTC AFLD MANAGEMENT AT LEAST 20 MIN PRIOR TO LDG.
A110-42
RSTD: USE OF ALERT APRON (X-MAS TREE) STUB 1 RQR PRIOR COORD WITH AFLD MANAGEMENT.
A110-44
CAUTION: AFLD LGT INTMT BTN SS/SR DUE TO LCL NGT VISION TRNG, NON-PARTICIPATING ACFT CTC TWR PRIOR TO ENTERING CLASS D AIRSPACE AND TO INCREASE INTS.
A110-46
SERVICE-LGT: RWY 25 ILS AND PAPI GS NOT COINCIDENTAL.
A110-47
RSTD: B52 ACFT LDG PROH.
A110-48
MISC: NO COMSEC AVBL FOR TRAN ISSUE. NO CLASSIFIED MATERIAL STOR AT AM OPS, STOR AVBL AT COMD POST.
A110-49
MISC: ARFF-CAT 3, WITH 14 PERS, 4880--5000 GAL OF CAPABILITY, CTC AMOP 731-6123 FOR UPDATED ARFF STATUS.
A110-5
CAUTION: PHASE II IN EFF APR-MAY & SEP-NOV.
A110-50
MISC: AN/FMQ-19 AUTOMATED OBSERVATION SYS IN USE; AUGMENTED BY HUMAN OBSN WHEN NEC DUR AFLD HRS.
A110-54
MISC: AERODROME FOR NVG OPS TRAN ACFT SHOULD RCV BRIEFING FR 19 OSS TACTICS AT DNS 731-7013 OR 19OSS.OSKTACTICS@US.AF.MIL.
A110-55
FOR CD WHEN UNA VIA FREQ CTC LITTLE ROCK APCH 501-379-2908 OR LITTLE ROCK ATCT 501-379-2911.
A110-56
CAUTION: 3 FT TALL FIRE HYDRANTS LCTD N OF TWY F 100 FT FROM CNTRLN.
A110-57
CSTMS/AG/IMG: CTC SECURITY FORCES C501-987-3221 MIN 24 HR PN.
A110-6
RSTD: NO PRACTICE APCH OR LDG DUR LCL FLYING.
A110-7
NS ABTMT - DEP HVY ACFT CLIMB RWY HDG TO 1500' AGL PRIOR TO TURNING ON CRS.
A110-8
CAUTION: SIGNIFICANT INCREASE IN BIRD ACT APR-MAY, SEP-NOV.
A110-9
CAUTION: DEER HAZ.
LITTLE ROCK AFB (ICAO: KLRF, IATA: LRF) is a private airport located in JACKSONVILLE, AR.
