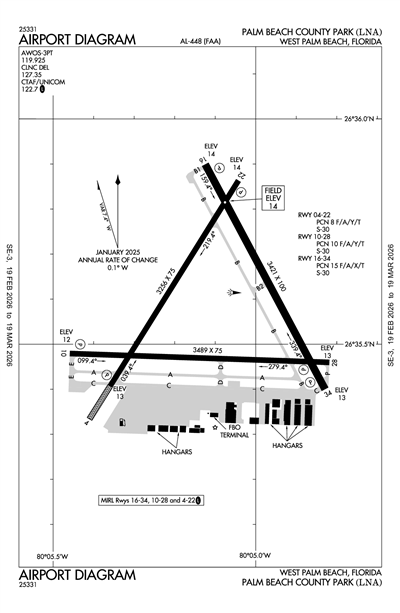

PALM BEACH COUNTY PARK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLNA
ICAO KLNAIATA LNALocal LNA
PALM BEACH COUNTY PARK
PublicPUB

6 miles S of WEST PALM BEACH, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
26° 35' 35"N 80° 05' 06"W
Elevation
14' MSL
Pattern Alt
1014' MSL
Mag Variation
7°W
Declination
7°W
Fuel
JET A, 100LL
FSS
MIAMI (MIA)
Sectional
MIAMI
ARTCC
MIAMI (ZMA)
Data Effective
2/19/26-3/19/26
KLNA MVFR
11:35 PM EST
Overcast 2,400'
Broken 1,900'
10sm
76°F
65°F
30.21"Hg
070° 11kts
Gusts 15kts
AO2 T02420181
METAR KLNA 040435Z AUTO 07011G15KT 10SM BKN019 OVC024 24/18 A3021 RMK AO2 T02420181
+ Add Your Business

KLNA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 119.925
(561) 964-0308

Common

CTAF 122.7
DUSK-2000. AFTER 2000, ACTVT MIRL RWYS 04/22, 10/28 & 16/34 - CTAF. PAPI RWY 10, 16, 28, & 34 OPR CONSLY.
UNICOM 122.7

Clearance

Clearance Delivery 127.35

Arrival

JESTR STAR 124.6
MELBOURNE STAR 124.6
TTYLR STAR 125.2

Approach

PALM BEACH APPROACH 127.35

Departure

PALM BEACH DEPARTURE 127.35

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Arrival Procedures

Instrument Approach

Terminal Area Forecast

KPBI (6nm)
Tue, 3/3 9:52 PM EST
Tue, 3/3 10:00 PM EST - Wed, 3/4 7:00 PM EST
VFR
10:00 PM EST - 10:00 AM EST
Showers in vicinity
Scattered 5,000'
Scattered 3,500'
6sm
080° 11kts
VFR
10:00 AM EST - 3:00 PM EST
Scattered 5,000'
Scattered 3,000'
6sm
100° 13kts
Gusts 23kts
MVFR
3:00 PM EST - 7:00 PM EST
Broken 5,000'
Broken 3,000'
6sm
080° 14kts
Gusts 24kts
TAF KPBI 040252Z 0403/0424 08011KT P6SM VCSH SCT035 SCT050
   FM041500 10013G23KT P6SM SCT030 SCT050
   FM042000 08014G24KT P6SM BKN030 BKN050
KLNA
EffectiveExpiresCategoryNOTAM
Domestic
2/28/26
0130Z
3/2/26
0030Z
!MIA 02/388 LNA AIRSPACE SEE FDC 6/9679 ZMA 91.141 VIP 2602280130-2603020030
2/26/26
1300Z
2/26/26
1700Z
!MIA 02/303 LNA OBST RIG (ASN UNKNOWN) 263534N0800507W (0.02NM W LNA)
40FT (36FT AGL) FLAGGED 2602261300-2602261700
2/20/26
1255Z
3/20/26
2200Z
!MIA 02/321 LNA TWY C HLDG PSN MARKINGS BTN WEST RAMP AND TWY C RUNUP PAD NOT STD 2602201255-2603202200
2/20/26
1255Z
3/20/26
2200Z
!MIA 02/320 LNA TWY A HLDG PSN MARKINGS NOT STD 2602201255-2603202200
2/20/26
1255Z
3/20/26
2200Z
Runway!MIA 02/319 LNA RWY 04/22 SFC MARKINGS NOT STD 2602201255-2603202200
1/21/26
1741Z
4/21/26
0500Z
!MIA 01/364 LNA OBST TOWER LGT (ASR 1029713) 263717.60N0800651.80W (2.3NM NW LNA) 181.1FT (163.1FT AGL) U/S 2601211741-2604210500
6/1/25
0400Z
6/1/26
0359Z
!MIA 05/302 LNA AIRSPACE SEE FDC 5/48840 ZMA 99.7 SECURITY 2506010400-2606010359
FDC
4/17/25
1141Z
!FDC 5/7866 LNA IAP PALM BEACH COUNTY PARK, WEST PALM BEACH, FL.
RNAV (GPS)-B, AMDT 1...
CIRCLING CAT A MDA 480/HAA 466, CAT B MDA 540/HAA 526.
2504171141-2607031141EST
7/3/24
1657Z
!FDC 4/7114 LNA IAP PALM BEACH COUNTY PARK, WEST PALM BEACH, FL.
RNAV (GPS) RWY 34, AMDT 1...
LP MDA 400/HAT 386 ALL CATS, VIS CAT C 1 1/8. LNAV MDA 420/HAT 406 ALL CATS. CIRCLING CAT A MDA 480/HAA 466, CAT B MDA 540/HAA 526.
2407031657-2607031657EST
No
0800-1830
PALM BEACH COUNTY
DEPARTMENT OF AIRPORTS 846 PBIA
WEST PALM BEACH, FL 33406
Phone: 561-471-7420
LAURA BEEBE
846 PALM BEACH INTL AIRPORT
WEST PALM BEACH, FL 33406
Phone: 561-471-7405
MIAMI FSS (MIA)
Toll Free: 1-800-WX-BRIEF
MIA
--
DUSK-2000. AFTER 2000, ACTVT MIRL RWYS 04/22, 10/28 & 16/34 - CTAF. PAPI RWY 10, 16, 28, & 34 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Avionics
Charter Service
Pilot Instruction
Aircraft Rental

Runway 04/22

3256 ft. x 75 ft.
ASPH
Fair
NONE
MED
8/F/A/Y/T
30,000lbs
--
--
--
  Runway 04 Runway 22
True Heading 32°212°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 26° 35' 24"N 26° 35' 52"N
Longitude 80° 05' 22"W 80° 05' 03"W
Elevation 12' 14'
Threshold Crossing Height 30 ft. AGL 30 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 10/28

3489 ft. x 75 ft.
ASPH
Good
NONE
MED
10/F/A/Y/T
30,000lbs
--
--
--
  Runway 10 Runway 28
True Heading 92°272°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 26° 35' 29"N 26° 35' 28"N
Longitude 80° 05' 28"W 80° 04' 49"W
Elevation 12' 13'
Threshold Crossing Height 46 ft. AGL 45 ft. AGL
Visual Glide Path Angle 4° 4°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 16/34

3421 ft. x 100 ft.
ASPH
Fair
NONE
MED
15/F/A/X/T
30,000lbs
--
--
--
  Runway 16 Runway 34
True Heading 152°332°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 26° 35' 54"N 26° 35' 24"N
Longitude 80° 05' 07"W 80° 04' 50"W
Elevation 14' 13'
Threshold Crossing Height 41 ft. AGL 38 ft. AGL
Visual Glide Path Angle 3.5° 3.5°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10RWY 34 APCH END HAS 25 FT BLDG 50 FT FM RWY END 225 FT LEFT OF EXTDD CTLN.
A110-1124-HR PPR RQ FOR ALL ACFT EQUIPPED WITH WX MODIFICATION EQPT OR ACFT CPBL OF WX MODIFICATION AND/OR GEOENGINEERING BY CTC THE DEPT OF ARPT COMMUNICATIONS CNTR AT (561) 471-7420.
A110-3LNA IS A NOISE-SENSITIVE ARPT; USE OF THE PREF NOISE ABATEMENT RWY, RWY 4-22, CONDS PMTG, IS STGLY ENCOURAGED. CALL (561)471-7468
A110-4NO TGLS ON RY 10/28.
A110-5HELICOPTERS USE RIGHT TRAFFIC TO ALL RYS.
A110-6EXTENSIVE FLIGHT TRAINING, MULTIPLE RUNWAYS IN USE.
A110-7NONSTANDARD HOLD SHORT MARKINGS ON TWY P BTN RWYS 10/28 AND 16/34.
A110-8AIRPORT SURFACE CONDITIONS NOT REPORTED FOR ALL RUNWAYS.
A110-9FOR CD CTC PALM BEACH APCH AT 561-684-9047.
A58-34RWY 34 HAS 2 FT BRUSH 200 FT FM RWY END 150 FT RIGHT.
A81-APTDUSK-2000. AFTER 2000, ACTVT MIRL RWYS 04/22, 10/28 & 16/34 - CTAF. PAPI RWY 10, 16, 28, & 34 OPR CONSLY.
E147STANDARD PATTERN ENTRY TO ALL RUNWAYS STRONGLY RECOMMENDED.
PALM BEACH COUNTY PARK (ICAO: KLNA, IATA: LNA) is a public airport located in WEST PALM BEACH, FL, US.
