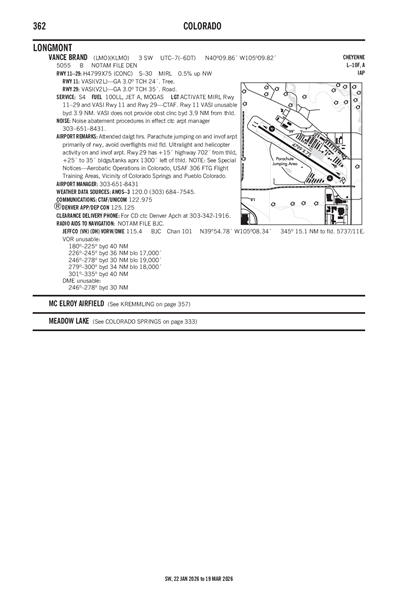

VANCE BRAND - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLMO
ICAO KLMOLocal LMO
VANCE BRAND
PublicPUB

3 miles SW of LONGMONT, CO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 09' 52"N 105° 09' 49"W
Elevation
5055' MSL
Pattern Alt
6055' MSL
Mag Variation
8°E
Declination
10°E
Fuel
JET A, 100LL, MOGAS
FSS
DENVER (DEN)
Sectional
CHEYENNE
ARTCC
DENVER (ZDV)
Data Effective
2/19/26-3/19/26
KLMO VFR
8:55 PM MST
Overcast 4,500'
10sm
39°F
34°F
30.24"Hg
280° 3kts
AO2 T00380011
METAR KLMO 040355Z AUTO 28003KT 10SM OVC045 04/01 A3024 RMK AO2 T00380011
+ Add Your Business

KLMO FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 120.0
(303) 684-7545

Common

CTAF 122.975
ACTVT MIRL RY 11/29 AND VASI RY 11/29 - CTAF.
UNICOM 122.975

Arrival

BRNKO RNAV STAR 127.05

Approach

DENVER APPROACH 125.125

Departure

DENVER DEPARTURE 125.125

Terminal Area Forecast

KBJC (16nm)
Tue, 3/3 8:05 PM MST
Tue, 3/3 8:00 PM MST - Wed, 3/4 5:00 PM MST
MVFR
8:00 PM MST - 9:00 PM MST
Overcast 5,000'
Broken 3,000'
6sm
310° 8kts
MVFR
9:00 PM MST - 1:00 AM MST
Overcast 5,000'
Broken 3,000'
6sm
270° 6kts
VFR
1:00 AM MST - 6:00 AM MST
Scattered 5,000'
Few 500'
6sm
240° 6kts
VFR
6:00 AM MST - 12:00 PM MST
Few 15,000'
6sm
180° 6kts
VFR
12:00 PM MST - 5:00 PM MST
Few 15,000'
6sm
120° 6kts
TAF KBJC 040305Z 0403/0424 31008KT P6SM BKN030 OVC050
   FM040400 27006KT P6SM BKN030 OVC050
   FM040800 24006KT P6SM FEW005 SCT050
   FM041300 18006KT P6SM FEW150
   FM041900 12006KT P6SM FEW150
KLMO
EffectiveExpiresCategoryNOTAM
Domestic
2/28/26
0100Z
2/28/26
0400Z
!DEN 02/499 LMO AIRSPACE UAS WI AN AREA DEFINED AS .3NM RADIUS OF 400859N1051008W (1.8NM S LMO) SFC-400FT AGL 2602280100-2602280400
2/27/26
2200Z
2/27/27
2200Z
!DEN 02/500 LMO AIRSPACE UAS WI AN AREA DEFINED AS .3NM RADIUS OF 400841N1050530W (4.1NM SE LMO) SFC-400FT AGL 2602272200-2702272200
FDC
2/23/26
1438Z
5/13/26
1438Z
!FDC 6/8328 LMO IAP VANCE BRAND, LONGMONT, CO.
VOR/DME-A, AMDT 2B...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BJC VOR/DME UNMONITORED. 2602231438-2605131438EST
No
DALGT
CITY OF LONGMONT
350 KIMBARK ST
LONGMONT, CO 80501
Phone: 303-651-8431
LEVI BROWN
229 AIRPORT ROAD
LONGMONT, CO 80503
Phone: 303-651-8431
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
DEN
--
ACTVT MIRL RY 11/29 AND VASI RY 11/29 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Charter Service
Pilot Instruction
Parachute Jump Activity
Aircraft Rental
Aircraft Sales

Runway 11/29

4799 ft. x 75 ft.
CONC
Good
NONE
MED

30,000lbs
--
--
--
  Runway 11 Runway 29
True Heading 123°303°
Traffic Pattern Left Left
Markings BSC NPI
Markings Condition FAIR FAIR
Latitude 40° 10' 05"N 40° 09' 39"N
Longitude 105° 10' 15"W 105° 09' 23"W
Elevation 5,055' 5,031'
Threshold Crossing Height 24 ft. AGL 35 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V2L V2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10FOR CD CTC DENVER APCH AT 303-342-1916.
A110-3ULTRALIGHT & HELICOPTER ACTIVITY ON & INVOF ARPT.
A110-4RY 11 HAS -7 FT DITCH 420 FT AND 900 FT FM THLD ON EXTDD THLD.
A110-5RY 29 HAS +15 FT HWY 702 FT FM THLD; +25 TO 35 FT BLDGS/TANKS APROXLY 1300 FT L OF THLD.
A110-8NOISE ABATEMENT PROCEDURES IN EFFECT CTC ARPT MANAGER 303-651-8431.
A110-9PARAJUMPING ON AND IN VICINITY OF ARPT PRIMARILY S OF RY, AVOID OVERFLIGHTS MID FIELD.
A43-11VASI UNUSLB BYD 3.9 NM. VASI DOES NOT PRVD OBST CLNC BYD 3.9 NM FROM THLD.
A81-APTACTVT MIRL RY 11/29 AND VASI RY 11/29 - CTAF.
VANCE BRAND (ICAO: KLMO, IATA: LMO) is a public airport located in LONGMONT, CO, US.
