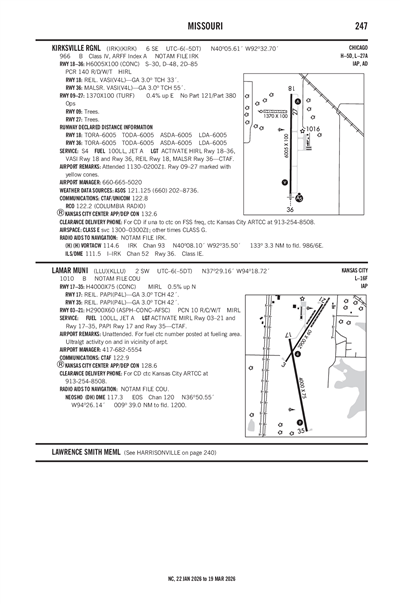

LAMAR MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLLU
ICAO KLLULocal LLU
LAMAR MUNI
PublicPUB

2 miles SW of LAMAR, MO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 29' 09"N 94° 18' 43"W
Elevation
1010' MSL
Pattern Alt
2010' MSL
Mag Variation
1°E
Declination
2°E
Fuel
JET A, 100LL
FSS
COLUMBIA (COU)
Sectional
KANSAS CITY
ARTCC
KANSAS CITY (ZKC)
Data Effective
2/19/26-3/19/26
KPTS (20nm) VFR
7:55 PM CST
Overcast 7,000'
Broken 5,500'
Broken 4,400'
8sm
55°F
52°F
30.01"Hg
020° 7kts
AO2
METAR KPTS 040155Z AUTO 02007KT 8SM BKN044 BKN055 OVC070 13/11 A3001 RMK AO2
+ Add Your Business

KLLU FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.9
ACTVT MIRL RYS 03/21 & 17/35, PAPI RYS 17 & 35 - CTAF.

Center

KANSAS CITY CENTER 128.6
LOW, APCH/DEP SVC PRVDD BY KANSAS CITY ARTCC ON FREQ 128.6/282.325 (EDNA RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KJLN (22nm)
Tue, 3/3 5:23 PM CST
Tue, 3/3 6:00 PM CST - Wed, 3/4 6:00 PM CST
VFR
6:00 PM CST - 7:00 PM CST
Overcast 4,500'
6sm
220° 10kts
VFR
7:00 PM CST - 5:00 AM CST
Overcast 5,000'
6sm
010° 8kts
MVFR
9:00 PM CST - 3:00 AM CST
Light Showers and Rain
Overcast 2,500'
4sm
Calm
IFR
5:00 AM CST - 9:00 AM CST
Showers and Rain and Mist
Overcast 700'
4sm
030° 5kts
IFR
Temporary 5:00 AM CST - 9:00 AM CST
Thunderstorm and Rain and Mist
Overcast 700'
4sm
Calm
IFR
Temporary 9:00 AM CST - 1:00 PM CST
Thunderstorm and Rain
Overcast 700'
3sm
Calm
IFR
9:00 AM CST - 6:00 PM CST
Showers and Rain
Overcast 700'
3sm
060° 7kts
TAF KJLN 032323Z 0400/0424 22010KT P6SM OVC045
   FM040100 01008KT P6SM OVC050
   PROB30 0403/0409 4SM -SHRA OVC025
   FM041100 03005KT 4SM SHRA BR OVC007
   TEMPO 0411/0415 4SM TSRA BR OVC007CB
   FM041500 06007KT 3SM SHRA OVC007
   TEMPO 0415/0419 3SM TSRA OVC007CB
KLLU
EffectiveExpiresCategoryNOTAM
Domestic
2/15/26
2044Z
6/15/26
2044Z
!COU 02/276 LLU OBST TOWER LGT (ASR 1253055) 372235.90N0941804.20W (6.6NM S LLU) 1192.6FT (259.8FT AGL) U/S 2602152044-2606152044
2/13/26
1622Z
Runway!COU 02/235 LLU RWY 17 RWY END ID LGT U/S 2602131622-2608172111EST
1/16/26
1615Z
5/16/26
1527Z
!COU 01/234 LLU OBST TOWER LGT (ASR 1004238) 372925.90N0941333.60W (4.1NM E LLU) 1321.9FT (318.9FT AGL) U/S 2601161615-2605161527
No
UNATNDD
CITY OF LAMAR
132 WEST 10TH
LAMAR, MO 64759
Phone: 417 682-5554
RUSS WORSLEY
132 WEST 10TH
LAMAR, MO 64759
Phone: 417-682-5554
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
COU
--
ACTVT MIRL RYS 03/21 & 17/35, PAPI RYS 17 & 35 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting
Pilot Instruction
Aircraft Rental

Runway 03/21

2900 ft. x 60 ft.
ASPH CONC
Good
AFSC
MED
10/R/C/W/T
--
--
--
--
  Runway 03 Runway 21
True Heading 33°213°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 37° 29' 10"N 37° 29' 34"N
Longitude 94° 18' 51"W 94° 18' 32"W
Elevation 1,005' 998'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

4000 ft. x 75 ft.
CONC
Excellent
NONE
MED

--
--
--
--
  Runway 17 Runway 35
True Heading 169°349°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 37° 29' 20"N 37° 28' 41"N
Longitude 94° 18' 49"W 94° 18' 40"W
Elevation 1,010' 990'
Threshold Crossing Height 42 ft. AGL 42 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.
A70-100LLFOR FUEL CTC NUMBER POSTED AT FUELING AREA.
A81-APTACTVT MIRL RYS 03/21 & 17/35, PAPI RYS 17 & 35 - CTAF.
A96ULTRALIGHT ACTIVITY ON & INVOF ARPT.
LAMAR MUNI (ICAO: KLLU, IATA: LLU) is a public airport located in LAMAR, MO, US.
