KLHB
HEARNE MUNI
PublicPUB

1 miles SW of HEARNE, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
30° 52' 19"N 96° 37' 20"W
285' MSL
1285' MSL
04E
100LL
MONTGOMERY COUNTY (CXO)
HOUSTON
HOUSTON (ZHU)
10/31/24-11/28/24
KLHB VFR
5:35 AM CST
Scattered 4,700'
10sm
61°F
50°F
30.01"Hg
340° 6kts
AO2
KLHB 091135Z AUTO 34006KT 10SM SCT047 16/10 A3001 RMK AO2
Add Your Business

KLHB FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

AWOS-3

AWOS-3
979-280-5596
 118.675

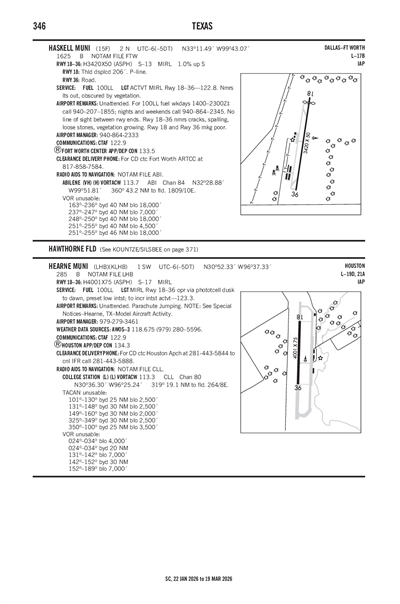

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KCLL (22nm)
Sat, 11/9 5:22 AM CST
Sat, 11/9 6:00 AM CST - Sun, 11/10 6:00 AM CST
VFR
6:00 AM CST - 7:00 AM CST
Few 4,000'
6sm
340° 9kts
VFR
7:00 AM CST - 4:00 PM CST
Scattered 1,500'
6sm
350° 9kts
VFR
4:00 PM CST - 11:00 PM CST
Scattered 5,000'
6sm
010° 6kts
VFR
11:00 PM CST - 6:00 AM CST
Scattered 2,400'
6sm
VRB° 3kts
KCLL 091122Z 0912/1012 34009KT P6SM FEW040
   FM091300 35009KT P6SM SCT015
   FM092200 01006KT P6SM SCT050
   FM100500 VRB03KT P6SM SCT024
KLHB
Domestic
11/9/241500Z !LHB 11/002 LHB AIRSPACE UNMANNED ROCKET WI AN AREA DEFINED AS 1NM RADIUS OF CLL319019.1 SFC-12500FT 2411091500-2411092300
11/6/241015Z !LHB 11/005 LHB OBST TOWER LGT (ASR 1051779) 305450.50N0963236.20W (4.8NM ENE LHB) 758.9FT (317.9FT AGL) U/S 2411061015-2503061015
11/5/241959Z !LHB 11/004 LHB OBST TOWER LGT (ASR 1314985) 310336.80N0961929.40W (19.03NM NE LHB) 600FT (261FT AGL) U/S 2411051959-2412052359
11/5/241904Z !LHB 11/003 LHB OBST TOWER LGT (ASR 1203352) 310230.60N0962718.30W (13.4NM NE LHB) 629.6FT (219.8FT AGL) U/S 2411051904-2412052359
11/4/242300Z !LHB 10/019 LHB AD AP LGT ALL U/S DLY 2300-0300 2411042300-2411130300
11/4/241300Z !LHB 10/018 LHB AIRSPACE PJE WI AN AREA DEFINED AS 5NM RADIUS OF LHB SFC-17999FT AGL DLY 1300-0300 2411041300-2411130300
11/3/240920Z !LHB 11/001 LHB OBST TOWER LGT (ASR 1214169) 305107.00N0963404.00W (3.1NM ESE LHB) 648.0FT (368.1FT AGL) U/S 2411030920-2412030001
10/21/240334Z !LHB 10/015 LHB OBST TOWER LGT (ASR 1239659) 305735.50N0963351.20W (6.0NM NNE LHB) 748.0FT (375.0FT AGL) U/S 2410210334-2502180334
10/11/242026Z !LHB 10/008 LHB OBST TOWER LGT (ASN 2018-ASW-8573-OE) 310449N0962442W (16.6NM NE LHB) 722FT (322FT AGL) U/S 2410112026-2411252025
FDC
11/8/231842Z !FDC 3/9115 LHB IAP HEARNE MUNI, HEARNE, TX.
RNAV (GPS) RWY 18, ORIG-C...
DISREGARD NOTE: BARO-VNAV AND VDP NA WHEN USING COLLEGE STATION ALTIMETER SETTING.
2311081842-2511081841EST
No
UNATNDD
CITY OF HEARNE
209 CEDAR ST.
HEARNE, TX 77859
Phone: 979-279-3461
ALANZO ECHAVARRIA
209 CEDAR ST.
HEARNE, TX 77859
Phone: 979-279-3461
MONTGOMERY COUNTY FSS (CXO)
Toll Free: 1-800-WX-BRIEF
LHB
--
MIRL RWY 18/36 OPR VIA PHOTOCELL DUSK TO DAWN, PRESET LOW INTST; TO INCR INTST ACTVT - 123.3.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Crop Dusting

Runway 18/36

4001 ft. x 75 ft.
ASPH
Good
NONE
MED

17,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 181°2°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 30° 52' 39"N 30° 51' 60"N
Longitude 96° 37' 19"W 96° 37' 21"W
Elevation 285' 280'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-3FOR CD CTC HOUSTON APCH AT 281-443-5844 TO CNL IFR CALL 281-443-5888.
HEARNE MUNI (ICAO: KLHB, IATA: LHB) is a public airport located in HEARNE, TX.
