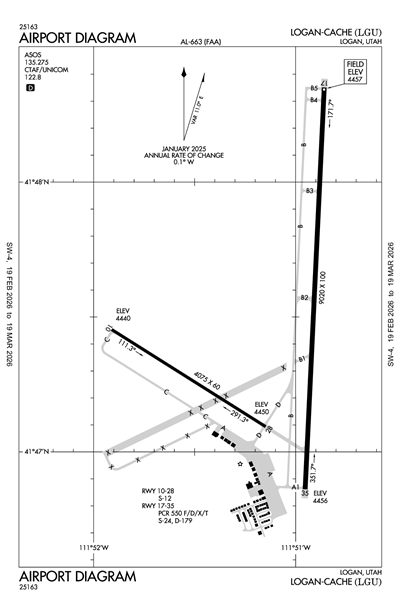

LOGAN-CACHE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLGU
ICAO KLGUIATA LGULocal LGU
LOGAN-CACHE
PublicPUB

3 miles NW of LOGAN, UT, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 47' 30"N 111° 51' 06"W
Elevation
4457' MSL
Pattern Alt
5457' MSL
Mag Variation
11°E
Declination
11°E
Fuel
JET A, 100LL
FSS
CEDAR CITY (CDC)
Sectional
SALT LAKE CITY
ARTCC
SALT LAKE CITY (ZLC)
Data Effective
2/19/26-3/19/26
KLGU VFR
12:51 AM MST
Clear
10sm
34°F
32°F
30.18"Hg
Calm
AO2 SLP221 T00110000
METAR KLGU 040751Z AUTO 00000KT 10SM CLR 01/00 A3018 RMK AO2 SLP221 T00110000
+ Add Your Business

KLGU FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 135.275
(435) 752-6941

Common

CTAF 122.8
ACTVT MALSR RWY 17; REIL RWY 35; PAPI RWY 17 & 35; HIRL RWY 17/35 - CTAF.
UNICOM 122.8

Center

SALT LAKE CENTER 127.7
LOW, APCH/DEP CTL SVC PRVDD BY SALT LAKE ARTCC (ZLC) ON 127.7/354.125 (MALAD CITY RCAG).

Flight Service

Flight Service 122.2
(CDC), COMMUNICATIONS PRVDD BY CEDAR CITY RADIO ON FREQ 122.2. (FRANCIS PEAK RCO)

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KLGU
Tue, 3/3 10:20 PM MST
Tue, 3/3 11:00 PM MST - Wed, 3/4 11:00 PM MST
VFR
11:00 PM MST - 2:00 AM MST
Few 25,000'
6sm
VRB° 3kts
MVFR
2:00 AM MST - 9:00 AM MST
Mist and Shallow Fog
Few 25,000'
Few 100'
4sm
Calm
VFR
9:00 AM MST - 12:00 PM MST
Scattered 25,000'
6sm
VRB° 4kts
VFR
12:00 PM MST - 6:00 PM MST
Scattered 25,000'
6sm
200° 8kts
VFR
6:00 PM MST - 11:00 PM MST
Broken 10,000'
Scattered 6,000'
6sm
VRB° 5kts
TAF KLGU 040520Z 0406/0506 VRB03KT P6SM FEW250
   FM040900 00000KT 4SM BR MIFG FEW001 FEW250
   FM041600 VRB04KT P6SM SCT250
   FM041900 20008KT P6SM SCT250
   FM050100 VRB05KT P6SM SCT060 BKN100
KLGU
EffectiveExpiresCategoryNOTAM
Domestic
3/4/26
1545Z
3/4/26
2100Z
Runway!LGU 03/002 LGU RWY 17 ALS U/S 2603041545-2603042100
12/2/25
0200Z
3/31/26
1300Z
!LGU 12/001 LGU AD AP SFC COND NOT REP DLY 0200-1300 2512020200-2603311300
FDC
4/18/24
1257Z
!FDC 4/2473 LGU IAP LOGAN-CACHE, LOGAN, UT.
RNAV (GPS) RWY 17, AMDT 2...
*LNAV CATS A/B VIS 3/4. RWY 17 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED. 34:1 IS NOT CLEAR.
2404181257-2604181257EST
No
0800-1900
LOGAN CITY & CACHE CO
199 N. MAIN
LOGAN, UT 84321
Phone: (435) 755-1850
BOB LOW
199 N. MAIN
LOGAN, UT 84321
Phone: 435-755-1750
CEDAR CITY FSS (CDC)
Toll Free: 1-800-WX-BRIEF
LGU
--
ACTVT MALSR RWY 17; REIL RWY 35; PAPI RWY 17 & 35; HIRL RWY 17/35 - CTAF.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
High & Low Pressure
Charter Service
Pilot Instruction
Aircraft Rental

Runway 10/28

4075 ft. x 60 ft.
ASPH
Excellent
NONE


12,000lbs
--
--
--
  Runway 10 Runway 28
True Heading 122°302°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition POOR POOR
Latitude 41° 47' 27"N 41° 47' 06"N
Longitude 111° 51' 54"W 111° 51' 09"W
Elevation 4,440' 4,450'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

9020 ft. x 100 ft.
ASPH
Excellent
NONE
HIGH

24,000lbs
179,000lbs
--
--
  Runway 17 Runway 35
True Heading 183°3°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 48' 21"N 41° 46' 52"N
Longitude 111° 50' 52"W 111° 50' 57"W
Elevation 4,457' 4,456'
Threshold Crossing Height 45 ft. AGL 39 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights No Yes
A110-1BIRDS ON & INVOF ARPT SPRING & SUMMER.
A110-2COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -14C.
A110-3FLT TRNG INVOF ARPT.
A110-4FOR CD CTC SALT LAKE ARTCC AT 801-320-2568.
A24LANDING FEE, CTC AMGR FOR MORE INFO.
A30-10/28DALGT USE ONLY.
A39-17/35PCR VALUE: 550/F/D/X/T
A70-100LLAVBL H24 WITH CREDIT CARD; AFT HR - 435-753-2221/435-752-5955.
A81-APTACTVT MALSR RWY 17; REIL RWY 35; PAPI RWY 17 & 35; HIRL RWY 17/35 - CTAF.
LOGAN-CACHE (ICAO: KLGU, IATA: LGU) is a public airport located in LOGAN, UT, US.
