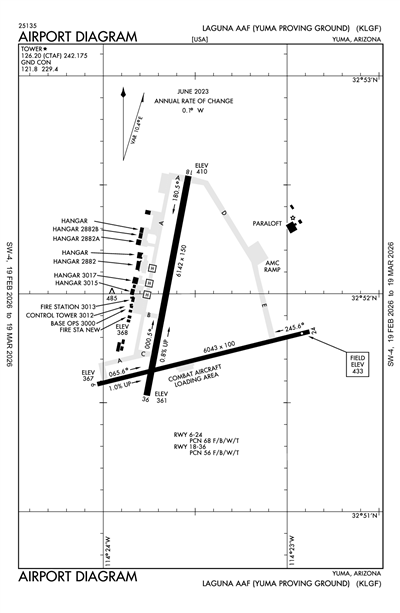

LAGUNA AAF (YUMA PROVING GROUND) - Airport Diagram

KLGF

ICAO KLGFIATA LGFLocal LGF

LAGUNA AAF (YUMA PROVING GROUND)

PrivatePVT

12 miles NE of YUMA PROVING GROUND (YUMA), AZ, US

View on Map

Status

Operational

Coordinates

32° 51' 52"N 114° 23' 35"W

Elevation

433' MSL

Pattern Alt

1433' MSL

Mag Variation

10°E

Declination

13°E

Fuel

100LL

FSS

PRESCOTT (PRC)

Sectional

PHOENIX

ARTCC

LOS ANGELES (ZLA)

Data Effective

2/19/26-3/19/26

KLGF VFR

10:55 PM MST RAW

Clear

Viz

10sm

Temp

67°F

Dew

23°F

Pres

29.92"Hg

Wind

010° 6kts

RMK

AO2 SLP130 T01921050 10308 20192 51008 $

METAR KLGF 040555Z AUTO 01006KT 10SM CLR 19/M05 A2992 RMK AO2 SLP130 T01921050 10308 20192 51008 $

Add Your Business

KLGF FBOs

No FBOs (Fixed Base Operators) are listed for this airport.

Your Information

Business

Weather and Advisory

ATIS	128.225
AWOS-3PT	(ASOS_AWOS_TYPE) FMQ-23 SYSTEM PRESENT.

Common

CTAF	126.2
CTAF 242.175

Ground

LAGUNA GROUND	121.8
0600-1600 MON-FRI, CLSD HOL, O/T BY NOTAM.

Tower

LAGUNA TOWER	126.2
0600-1600 MON-FRI, CLSD HOL, O/T BY NOTAM.

Center

YUMA CENTER	118.0
HIGH, USE: CD/P.; APCH CTL SVC PRVVD BY YUMA CERAP ON 124.7/371.975 (YUMA RCAG). DEP CTL SVC PRRVD BY YUMA CERAP ON 125.55/282.325 (YUMA/A RCAG).
YUMA CENTER	124.7
LOW/HIGH, USE: APCH/P; VFR ADVISORY.; APCH CTL SVC PRVVD BY YUMA CERAP ON 124.7/371.975 (YUMA RCAG). DEP CTL SVC PRRVD BY YUMA CERAP ON 125.55/282.325 (YUMA/A RCAG).
YUMA CENTER	125.55
LOW/HIGH, USE: DEP/P.; APCH CTL SVC PRVVD BY YUMA CERAP ON 124.7/371.975 (YUMA RCAG). DEP CTL SVC PRRVD BY YUMA CERAP ON 125.55/282.325 (YUMA/A RCAG).

Other

Range Control

119.0

Instrument Approach

Terminal Area Forecast

KNYL (16nm)

RAW

Reported

Tue, 3/3 2:03 PM MST

Valid

Tue, 3/3 2:00 PM MST - Wed, 3/4 2:00 PM MST

VFR

2:00 PM MST - 8:00 PM MST

Sky Clear

Viz

6sm

Pres

29.88"Hg

Wind

340° 10kts

VFR

Becoming 8:00 PM MST - 5:00 AM MST

Sky Clear

Viz

6sm

Pres

29.91"Hg

Wind

020° 3kts

VFR

Becoming 5:00 AM MST - 12:00 PM MST

Sky Clear

Viz

6sm

Pres

29.91"Hg

Wind

VRB° 1kts

VFR

12:00 PM MST - 2:00 PM MST

Sky Clear

Viz

6sm

Pres

29.94"Hg

Wind

360° 2kts

TAF KNYL 0321/0421 34010KT 9999 SKC QNH2989INS
   BECMG 0403/0405 02003KT 9999 SKC QNH2990INS
   BECMG 0412/0414 VRB01KT 9999 SKC QNH2992INS
   FM041900 36002KT 9999 SKC QNH2995INS TX31/0322Z TN13/0413Z

KLGF

Effective	Expires	Category	NOTAM
Military
2/25/26 1449Z	5/20/26 0700Z	Aerodrome	AERODROME PAPI LIGHT PHOTOCELL INOP AND SET TO DAY BRIGHT
2/25/26 1443Z	5/20/26 0700Z	Apron	!KLGF M0003/26 LGF APRON AM1 CLSD LGTD AND BARRICADED 2602251443-2605200700
2/25/26 1442Z	5/20/26 1300Z		ALL VTOL AIRCRAFT ARE RESTRICTED TO ROLL ON ARRIVAL/DEPARTURE ONLY.
2/25/26 1442Z	5/20/26 0700Z		INTS PARADROPS OPERATIONS VCNTY 5NM OF AFLD AT FL180 AND BELOW.
2/25/26 1440Z	5/20/26 2359Z	Taxiway	TWY FOXTROT OPEN TO ONLY HIGH WING ACFT. NO AFCT SMALLER THAN A CASA 212 ALLOWED TO ENTER TWY FOXTROT FROM RWY 18/36.

ATC Tower

Yes

Attendance

MON-FRI 0600-1600
CLSD HOL

Owner

US ARMY AERONAUTICAL SVCS AGENCY

FT BELVOIR, VA 22060

Manager

N/A

FSS

PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF

NOTAM

PRC

Light Schedule

Lights

ACTVT MIRL RWY 18/36 - 126.2. PAPI RWY 18 & 36 OPR CONSLY DURG OPS; OTR TIME ON REQ - BASE OPS.

Beacon

N/A

Wind Indicator

Yes

Segmented Cir.

Landing Fee

Parking

None

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

None

Runway 06/24

Dimensions

6043 ft. x 100 ft.

Surface Type

Surface Cond

ASPH

Treatment

NONE

Rwy Edge Lgts

Pavement Class

68/F/B/W/T

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 06	Runway 24
True Heading	76°	256°
Traffic Pattern	Right	Left
Markings	BSC	BSC
Markings Condition	FAIR	FAIR
Latitude	32° 51' 35"N	32° 51' 50"N
Longitude	114° 24' 03"W	114° 22' 54"W
Elevation	367'	425'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18/36

Dimensions

6142 ft. x 151 ft.

Surface Type

Surface Cond

ASPH

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

56/F/B/W/T

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 18	Runway 36
True Heading	191°	11°
Traffic Pattern	Left	Right
Markings	NONE	NONE
Markings Condition	POOR	POOR
Latitude	32° 52' 32"N	32° 51' 32"N
Longitude	114° 23' 34"W	114° 23' 47"W
Elevation	410'	361'
Threshold Crossing Height	43 ft. AGL	49 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H1

Dimensions

40 ft. x 40 ft.

Surface Type

Surface Cond

ASPH

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway H1	Runway
True Heading	Not Listed	Not Listed
Traffic Pattern
Markings
Markings Condition
Latitude	32° 52' 07"N	N/A
Longitude	114° 23' 46"W	N/A
Elevation	365'	--
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H2

Dimensions

40 ft. x 40 ft.

Surface Type

Surface Cond

ASPH

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway H2	Runway
True Heading	Not Listed	Not Listed
Traffic Pattern
Markings
Markings Condition
Latitude	32° 52' 03"N	N/A
Longitude	114° 23' 47"W	N/A
Elevation	360'	--
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H3

Dimensions

40 ft. x 40 ft.

Surface Type

Surface Cond

ASPH

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway H3	Runway
True Heading	Not Listed	Not Listed
Traffic Pattern
Markings
Markings Condition
Latitude	32° 51' 60"N	N/A
Longitude	114° 23' 47"W	N/A
Elevation	362'	--
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-1	CTN: WILDLIFE & COYOTES ON & INVOF ARPT; SPCLY AT NGT.
A110-10	CTN: OPS ON CIBOLA RANGE 1 NM. PAJA INVOF 5 NM.
A110-11	OPS 0600-1600 MON-FRI; CLSD HOL; OTR TIME BY NOTAM.
A110-13	RSTD: OFFL BUS ONLY. RSTD AREA 4 NM E. OVFT OF HOUSING AREA 3 NM SW NA. TSNT 24 HR PPR - D899-2014/2241, C928-328-2014/2241.
A110-16	MISC: LATE ARR - BASE OPS D899-2014/2241, 928-328-2014/2241.
A110-17	SVC: FUEL, LOX SVC AVBL - BASE OPS.
A110-18	RSTD: CLSD FLD OPS PPR - BASE OPS OR LAGUNA OPS.
A110-19	CTN: UAS OPS FM LAGUNA AAF WHEN RSTD ASP ACTV; CTC LAGUNA ATCT PRIOR TO ENTRY.
A110-20	FOR CD CTC YUMA CERAP CD AT 982-269-9569.
A110-6	CTN: C-130 & LRGR TURN AROUND ON RWY NA EXC PRIOR APVL FOR EMERG OR CONGESTION.
A110-7	JASU-5(GPU) 3(59B2-1B).
A110-8	FUEL: 100LL, F24 AVBL 1340-2400Z MON-FRI; CLSD HOL. POL AVBL WITH 24 HR PPR FOR TSNT. CONTR FUEL - AVCARD ONLY.
A110-9	TRAN ALERT: LTD MAINT SVC AVBL.
A81-APT	ACTVT MIRL RWY 18/36 - 126.2. PAPI RWY 18 & 36 OPR CONSLY DURG OPS; OTR TIME ON REQ - BASE OPS.
E100	CTAF 242.175
E147	TFC PAT: RGT TFC RWY 06 AND 36. F/W 1700 FT MSL. R/W 1100 FT MSL. NO RGT TFC RWY 18.

LAGUNA AAF (YUMA PROVING GROUND) (ICAO: KLGF, IATA: LGF) is a private airport located in YUMA PROVING GROUND (YUMA), AZ, US.
