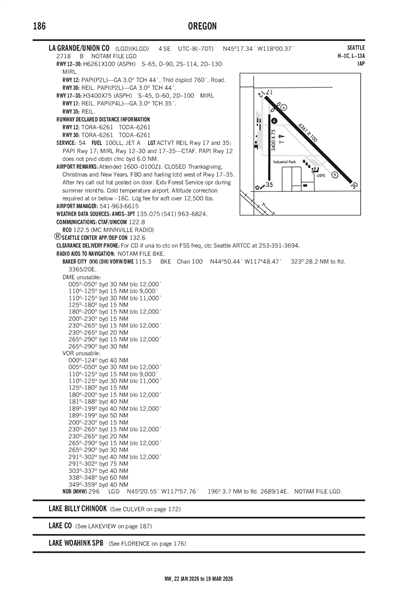

LA GRANDE/UNION COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLGD
ICAO KLGDIATA LGDLocal LGD
LA GRANDE/UNION COUNTY
PublicPUB

4 miles SE of LA GRANDE, OR, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
45° 17' 21"N 118° 00' 22"W
Elevation
2718' MSL
Pattern Alt
3718' MSL
Mag Variation
14°E
Declination
14°E
Fuel
JET A, 100LL
FSS
MC MINNVILLE (MMV)
Sectional
SEATTLE
ARTCC
SEATTLE (ZSE)
Data Effective
2/19/26-3/19/26
KLGD VFR
5:56 PM PST
Broken 7,000'
10sm
53°F
41°F
30.02"Hg
180° 15kts
Gusts 23kts
AO2 SLP182 T01170050 $
METAR KLGD 040156Z AUTO 18015G23KT 10SM BKN070 12/05 A3002 RMK AO2 SLP182 T01170050 $
+ Add Your Business

KLGD FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 135.075
(541) 963-6824

Common

CTAF 122.8
ACTVT REIL RWY 17 & 35; PAPI RWY 17; MIRL RWY 12/30 & 17/35 - CTAF.
UNICOM 122.8

Center

SEATTLE CENTER 132.6
LOW, APCH/DEP CTL SVC PRVDD BY SEATTLE ARTCC (ZSE) ON FREQS 132.6/269.35 (WALLULA RCAG).

Flight Service

Flight Service 122.5
(MMV)

FAA A/FD Pages

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KBKE (28nm)
Tue, 3/3 3:38 PM PST
Tue, 3/3 4:00 PM PST - Wed, 3/4 4:00 PM PST
VFR
4:00 PM PST - 6:00 PM PST
Scattered 20,000'
Few 5,000'
6sm
150° 15kts
Gusts 25kts
VFR
6:00 PM PST - 2:00 AM PST
Broken 15,000'
6sm
110° 9kts
VFR
2:00 AM PST - 4:00 AM PST
Showers in vicinity
Broken 6,000'
6sm
130° 6kts
VFR
4:00 AM PST - 10:00 AM PST
Light Rain
Overcast 3,500'
Scattered 2,000'
6sm
160° 7kts
MVFR
10:00 AM PST - 4:00 PM PST
Light Rain and Mist
Overcast 1,500'
Scattered 800'
3sm
330° 14kts
Gusts 23kts
TAF KBKE 032338Z 0400/0424 15015G25KT P6SM FEW050 SCT200
   FM040200 11009KT P6SM BKN150
   FM041000 13006KT P6SM VCSH BKN060
   FM041200 16007KT 6SM -RA SCT020 OVC035
   FM041800 33014G23KT 3SM -RA BR SCT008 OVC015
KLGD
No NOTAM Available
No
0800-1700
CLOSED THANKSGIVING, CHRISTMAS AND NEW YEARS.
AFTER HOURS CALL OUT LIST POSTED ON DOOR.
UNION COUNTY
1106 K AVENUE
LA GRANDE, OR 97850
Phone: 514-963-1016
DOUG WRIGHT
60175 PIERCE ROAD
LA GRANDE, OR 97850
Phone: 541-963-6615
MC MINNVILLE FSS (MMV)
Toll Free: 1-800-WX-BRIEF
LGD
--
ACTVT REIL RWY 17 & 35; PAPI RWY 17; MIRL RWY 12/30 & 17/35 - CTAF.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Crop Dusting
Air Ambulance
Pilot Instruction

Runway 12/30

6261 ft. x 100 ft.
ASPH
Good
NONE
MED

65,000lbs
90,000lbs
130,000lbs
--
  Runway 12 Runway 30
True Heading 135°315°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 45° 17' 44"N 45° 17' 00"N
Longitude 118° 00' 43"W 117° 59' 41"W
Elevation 2,718' 2,707'
Threshold Crossing Height 44 ft. AGL 44 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes

Runway 17/35

3400 ft. x 75 ft.
ASPH
Good
NONE
MED

45,000lbs
60,000lbs
100,000lbs
--
  Runway 17 Runway 35
True Heading 180°360°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 45° 17' 35"N 45° 17' 01"N
Longitude 118° 00' 40"W 118° 00' 40"W
Elevation 2,714' 2,709'
Threshold Crossing Height 35 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1EXTSV FOREST SVC OPNS DURG SUMMER MOS.
A110-3FBO & FUELING LCTD WEST OF RWY 17/35
A110-4COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -16C.
A110-5FOR CD IF UNA TO CTC ON FSS FREQ, CTC SEATTLE ARTCC AT 253-351-3694.
A17-D1CLOSED THANKSGIVING, CHRISTMAS AND NEW YEARS.
A17-M1AFTER HOURS CALL OUT LIST POSTED ON DOOR.
A24OVER 12500 LBS.
A43-12PAPI RWY 12 DOES NOT PRVD OBSTN CLNC BYD 6.0 NM.
A57-12RUNWAY 12 OBSTRUCTION CLEARANCE SLOPE 72:1 BASED ON DISPLACED THRESHOLD
A75-HCTC IN ADVN FOR HNGR STORAGE.
A81-APTACTVT REIL RWY 17 & 35; PAPI RWY 17; MIRL RWY 12/30 & 17/35 - CTAF.
A84SEGMENTED CIRCLE MARKED IN WHITE ONLY
E111ESTABD PRIOR TO 1959.
LA GRANDE/UNION COUNTY (ICAO: KLGD, IATA: LGD) is a public airport located in LA GRANDE, OR, US.
