KLFK
ANGELINA COUNTY
PublicPUB

7 miles SW of LUFKIN, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
31° 14' 02"N 94° 45' 00"W
296' MSL
1296' MSL
02E
JET A (FSII), 100LL
MONTGOMERY COUNTY (CXO)
HOUSTON
HOUSTON (ZHU)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

KLFK FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

ASOS

ASOS
936-637-9420
 120.625

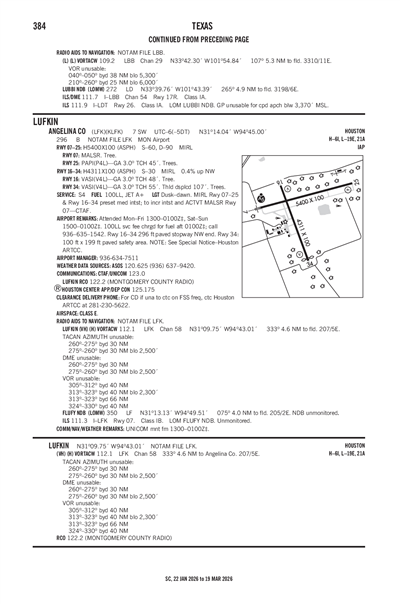

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
KLFK
Domestic
1/15/251400Z !LFK 01/019 LFK RWY 16 VASI U/S 2501151400-2501151900
1/15/251400Z !LFK 01/018 LFK RWY 34 VASI U/S 2501151400-2501151900
1/15/251400Z !LFK 01/017 LFK RWY 25 PAPI U/S 2501151400-2501151900
1/15/251319Z !LFK 01/016 LFK AIRSPACE UAS WI AN AREA DEFINED AS 0.5NM RADIUS OF
312118N0944511W (7.2NM N LFK) SFC-400FT AGL WED SR-SS
2501151319-2501152339
1/11/250622Z !LFK 01/015 LFK OBST TOWER LGT (ASR 1208801) 312000.70N0944616.50W (6.0NM N LFK) 575.1FT (270.0FT AGL) U/S 2501110622-2501260522
1/8/251549Z !LFK 01/010 LFK RWY 34 VASI U/S 2501081549-2501172000EST
12/26/241915Z !LFK 12/029 LFK OBST TOWER LGT (ASR 1214090) 310609.00N0942546.90W (18.3NM ESE LFK) 557.7FT (339.9FT AGL) U/S 2412261915-2503260500
12/5/242322Z !LFK 12/010 LFK OBST TOWER LGT (ASR 1259890) 312005.60N0944010.80W (7.3NM NE LFK) 1110.9FT (799.9FT AGL) U/S 2412052322-2501192322
9/12/241010Z !LFK 09/012 LFK RWY 07 RAI LGT U/S 2409121010-2504232000EST
FDC
7/16/241730Z !FDC 4/3021 LFK IAP ANGELINA COUNTY, LUFKIN, TX.
ILS OR LOC RWY 7, AMDT 3...
ADD NOTE: AUTOPILOT COUPLED APPROACH NA BELOW 1200.
2407161730-2607161730EST
No
MON-FRI 0700-1900
SAT-SUN 0900-1900
ANGELINA COUNTY
COUNTY COURTHOUSE
LUFKIN, TX 75901
Phone: 936-634-5413
GARY LETNEY
800 AIRPORT BLVD.
DIBOLL, TX 75941
Phone: 936-634-7511
MONTGOMERY COUNTY FSS (CXO)
Toll Free: 1-800-WX-BRIEF
LFK
--
DUSK-DAWN. MIRL RWYS 07/25 & 16/34 PRESET MED INTST; TO INCR INTST AND ACTVT MALSR RWY 07 - CTAF. PAPI RWY 25; VASI RWY 16 & 34 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Minor
Minor
None
None
None

Runway 07/25

5400 ft. x 100 ft.
ASPH
Good
NONE
MED

60,000lbs
90,000lbs
--
--
  Runway 07 Runway 25
True Heading 75°255°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 31° 14' 03"N 31° 14' 17"N
Longitude 94° 45' 27"W 94° 44' 27"W
Elevation 284' 296'
Threshold Crossing Height -- 45 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights

Runway 16/34

4311 ft. x 100 ft.
ASPH
Good
NONE
MED

30,000lbs
--
--
--
  Runway 16 Runway 34
True Heading 160°340°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 31° 14' 13"N 31° 13' 33"N
Longitude 94° 45' 12"W 94° 44' 56"W
Elevation 289' 274'
Threshold Crossing Height 48 ft. AGL 55 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights No No
A110-1RWY 34 100 FT X 199 FT PAVED SAFETY AREA.
A110-2FOR CD IF UNA TO CTC ON FSS FREQ, CTC HOUSTON ARTCC AT 281-230-5622.
ANGELINA COUNTY (ICAO: KLFK, IATA: LFK) is a public airport located in LUFKIN, TX.
