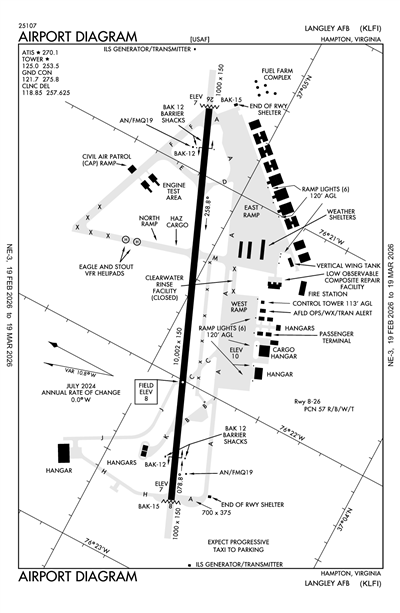

LANGLEY AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLFI
ICAO KLFIIATA LFILocal LFI
LANGLEY AFB
PrivatePVT

3 miles N of HAMPTON, VA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 04' 58"N 76° 21' 38"W
Elevation
8' MSL
Pattern Alt
1008' MSL
Mag Variation
11°W
Declination
10°W
Fuel
None Listed
FSS
LEESBURG (DCA)
Sectional
WASHINGTON
ARTCC
WASHINGTON (ZDC)
Data Effective
2/19/26-3/19/26
KLFI VFR
6:55 AM EST
Few 20,000'
9sm
49°F
46°F
30.25"Hg
210° 5kts
AO2A SLP250 T00930079 10095 20067 55002 $
METAR KLFI 041155Z 21005KT 9SM FEW200 09/08 A3025 RMK AO2A SLP250 T00930079 10095 20067 55002 $
+ Add Your Business

KLFI FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

Pilot-To-Dispatcher (PTD) 142.3

Clearance

Clearance Delivery 118.85

Ground

LANGLEY GROUND 121.7
OPR 1100-0300Z++ MON-FRI; 1300-2100Z++ WK END TO SUPPORT REG SKED DRILL (RSD) GUARD WK END ONCE A MONTH;CLSD FEDERAL HOL AND ACC DOWN DAYS UNLESS OPS APV BY 1 FWCC.

Tower

LANGLEY TOWER 125.0
OPR 1100-0300Z++ MON-FRI; 1300-2100Z++ WK END TO SUPPORT REG SKED DRILL (RSD) GUARD WK END ONCE A MONTH;CLSD FEDERAL HOL AND ACC DOWN DAYS UNLESS OPS APV BY 1 FWCC.

Arrival

DRONE STAR 118.9

Approach

NORFOLK APPROACH 124.9
311-009
NORFOLK APPROACH 125.7
311-009
NORFOLK APPROACH 125.7
NORFOLK APPROACH 126.05
010-080
NORFOLK APPROACH 127.9
180-310

Departure

NORFOLK DEPARTURE 124.9
311-009
NORFOLK DEPARTURE 125.7
NORFOLK DEPARTURE 125.7
311-009
NORFOLK DEPARTURE 126.05
010-080
NORFOLK DEPARTURE 127.9
180-310

Emergency

Emergency 121.5

Military

NASA OPS 123.375

Terminal Area Forecast

KLFI
Wed, 3/4 5:00 AM EST
Wed, 3/4 5:00 AM EST - Thu, 3/5 11:00 AM EST
MVFR
Temporary 5:00 AM EST - 7:00 AM EST
Mist
No Clouds
4.97sm
Calm
VFR
5:00 AM EST - 2:00 PM EST
Scattered 14,000'
Few 5,000'
6sm
30.27"Hg
230° 6kts
VFR
Becoming 2:00 PM EST - 12:00 AM EST
Scattered 20,000'
Few 3,000'
6sm
30.18"Hg
100° 6kts
MVFR
Becoming 12:00 AM EST - 7:00 AM EST
Mist
Scattered 600'
4.97sm
30.18"Hg
190° 6kts
VFR
Becoming 7:00 AM EST - 11:00 AM EST
Few 3,000'
6sm
30.21"Hg
210° 9kts
TAF KLFI 041000Z 0410/0516 23006KT 9999 FEW050 SCT140 QNH3026INS
   TEMPO 0410/0412 8000 BR
   BECMG 0419/0420 10006KT 9999 FEW030 SCT200 QNH3019INS
   BECMG 0505/0506 19006KT 8000 BR SCT006 QNH3018INS
   BECMG 0512/0513 21009KT 9999 NSW FEW030 QNH3021INS TX18/0418Z TN08/0411Z
KLFI
EffectiveExpiresCategoryNOTAM
Military
3/4/26
1300Z
3/4/26
2200Z
UNTETHERED UNMANNED ACFT WITHOUT REMOTE ID AT NASA LANGLEY RESEARCH CENTER, HAMPTON VIRGINIA, SURFACE TO 400 FEET WITHIN 0.75 NAUTICAL MILE RADIUS OF 37° 06' 13.83"N - 76° 22' 48.57"W.
3/4/26
0039Z
3/10/26
0400Z
EAST TWY ALPHA DIRECTIONAL SIGN OTS
3/4/26
0038Z
3/7/26
0038Z
M0231/26 NOTAMC M0230/26
3/2/26
1822Z
3/5/26
1822Z
M0225/26 NOTAMC M0062/26
3/2/26
1822Z
3/5/26
1822Z
M0224/26 NOTAMC M0064/26
3/2/26
1821Z
5/31/26
0300Z
ACFT RESCUE FIREFIGHTING STATUS DOWNGRADED: CAT 1-10 ACFT RED (A-10, BQM-34, C-12, C-21, CV22, C-38, F-15, F16, F-22, F-117, HH-60, T-1, T37,T-38, T-6, UH-1, UV-18, U-2, C-20, E-9A, AC-130, B-1, C-9, C-22, C-32, C-37, C-40, C-130, E-3, E-8, MH-53, 737, B-1, B-2, B-52, C-17, E-3 A, KC-135, 767, KC-46, E-4, VC-25, 747, 777, KC-10, C-5 A/B/M, 747 8I)
2/26/26
1042Z
3/31/26
0300Z
NO TRANSIENT DE-ICING CAPABILITIES.
2/23/26
1632Z
4/30/26
0200Z
COMMAND POST FEQUENCY OUT OF SERIVCE.
1/23/26
1447Z
4/21/26
2359Z
TaxiwayTWY A : CAUTION SOUTH EAST BARRIER SHACK LOCATED 147 FT FROM TWY A CENTERLINE.
1/22/26
2058Z
4/22/26
0200Z
KLFI WILL ONLY ACCEPT HAZARDOUS CARGO ON C17 OR SMALLER AIRCRAFT
1/20/26
1924Z
4/20/26
0200Z
AERODROME: OFFICIAL BUSINESS ONLY. TRANSIENT APPROACHES NOT APPROVED.
1/20/26
1922Z
4/20/26
0200Z
LAVATORY SERVICES LIMITED. FOR MORE INFORMATION, CALL TRANSIENT ALERT AT (757) 764-4517.
1/20/26
1921Z
4/20/26
0200Z
ROTATING BEACON OUT OF SERVICE.
Yes
MON-FRI 1100-0300Z++
SAT-SUN 1300-2100Z++
USAF
LANGLEY AFB
HAMPTON, VA 23665
CHIEF OF AFLD MANAGEMENT
LANGLEY AFB
HAMPTON, VA 23665
Phone: 757-764-2508
LEESBURG FSS (DCA)
Toll Free: 1-800-WX-BRIEF
LFI
--
--
N/A
Yes
No
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
Low Pressure
Cargo Handling

Runway 08/26

10002 ft. x 150 ft.

CONC
GRVD
HIGH
57/R/B/W/T
--
--
--
--
  Runway 08 Runway 26
True Heading 68°248°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition GOOD GOOD
Latitude 37° 04' 40"N 37° 05' 17"N
Longitude 76° 22' 35"W 76° 20' 41"W
Elevation 7' 6'
Threshold Crossing Height 53 ft. AGL 58 ft. AGL
Visual Glide Path Angle 2.8° 2.8°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights No No
Runway End Identifier Lights No No
A110-10CAUTION: INST IFR AND VFR HI PERFORMANCE FTR TFC WITHIN THE CLASS D AIRSPACE: EXTV UNCTL GENERAL AVN TFC BLW 3000 FT OVER JAMES RIVER AND CHESAPEAKE BAY. DEP TFC DO NOT EXCEED 1000 FT ON CLIMBOUT TIL DEP END OF RWY.
A110-11CAUTION: LASER LGT BEAM HAZ TO DRCT VISUAL OBSN WILL BE CONDUCTED AT NASA LANGLEY RESEARCH CNTR WITHIN 1/2 NM RAD OF 37 DEG 06.3 MIN N 76 DEG 22.7 MIN W. STRONG CAUTION IS ADVS. LASER BEAM MAY BE INJURIOUS TO PILOTS/PAX EYES WITHIN ALL ALT OF LGT SOURCE. CK NOTAM FOR DATE/TIME/DURATION/AFFECTED ALT.
A110-12CAUTION: WX OBSN SITE LCTD 080-250 DUE TO BLDG.
A110-13CAUTION: WIND SHEAR COND MAY EXIST ON RWY 26 THRU SHORT FINAL AND TD, THAT ARE PREVALENT, UNDETECTABLE AND OFTEN UNRPT. INCREASED POTENTIAL FOR HYDROPLANING DUE TO EXCESSIVE RUBBER BUILD-UP. ALS NON-FRANGIBLE. AFLD GRASS CUTTING CONDUCTED FR MAR-NOV, EXP INCREASED BIRD ACT IN VCNTY OF MOWERS.
A110-14TFC PAT: OVERHEAD 3000 FT AT 5 DME DESCENDING TO 1500 FT BY 3 DME, RGT BREAK RWY 26, LEFT BREAK RWY 08. RECTANGULAR 1000 FT RGT TFC RWY 26, LEFT TFC RWY 08.
A110-15NS ABTMT: QUIET HR 0330-1100Z++ WKD, 0330-1300Z++ WKEND AND HOL, WAIVERS CTC COMD POST DSN DSN 574-5411.
A110-18MISC: AFLD OPS DSN 574-2504, C757-764-2504. AFLD MGR DSN 574-2508. DD FORM 1801 RQR 90 MIN PRIOR TO ETD. RWY 08/26 GROOVED. ACC FTR ACFT EXP REDUCED RWY SEPARATION: DAY/VFR, SIMILAR ACFT 3000 FT, DISSIMIILAR TYPE ACFT 6000 FT. NGT 6000 FT ALL ACFT.
A110-19MISC: TRAN ACFT NOTIFY TWR ON INITIAL CTC IF REDUCED RWY SEPARATION IS NOT DESIRED. AFLD OPS DOES NOT HAVE COMSEC OR FACILITY TO STORE FOR TRAN CREWS; TRAN CREWS SHOULD PLAN TO ARR WITH APPROPRIATE AMOUNT OF COMSEC TO COMPLETE MSN. COMSEC CAN BE STORED AT 1FW COMD POST; DSN 574-5411 C757-764-2504.
A110-2RWY 08/26 THR LGT GATED, MID 70 FT INOP/REMOVED.
A110-20A: PRK, REFUEL AND MAINT AVBL ON AF RAMP. ACFT WITH FIREARMS CALL PTD TO ARNG FOR SECURITY.
A110-21NASA: ACFT INTENDING TO OPERATE FROM NASA RAMP SHALL CONTACT NASA FLIGHT OPERATIONS AT LARC-DL-FLTOPS@MAIL.NASA.GOV TO ARRANGE FOR APPROVAL AND SUPPORT PRIOR TO ARRIVAL. ADDITIONALLY OBTAIN PPR FROM 1 OSS/OSA AT C757-764-2504 FOR LANDING AT KLFI. SVC NOT AVBL FOR NON-NASA ACFT. NO ORGANIC SUPPORT FOR LARGE TRANSPORT CATEGORY AIRCRAFT (POWER, FUEL, LAV, STEPS). HOWEVER USAF ELEMENTS MAY BE ABLE TO PROVIDE SUPPORT WITH SUFFICIENT ADVANCE NOTICE. TAXIWAY JULIET INCREASED FOD HAZARD AND REDUCED PCN DUE TO DEGRADING PAVEMENT CONDITIONS. ACFT WITH ACN GREATER THAN 24 OR WINGSPAN GREATER THAN 80 FT USE TAXIWAY H. TAXIWAY J LIMITED FOR NIGHT AND IFR CONDITIONS DUE TO LACK OF TAXIWAY EDGE LIGHTING SYSTEM. CONTROL OF PERIMETER ROAD STREET LIGHTS TO STOP VEHICULAR TRAFFIC IS THREE CLICKS ON 123.375 FOR TAXIWAY J AND FIVE CLICKS FOR TAXIWAY H. ONLY NASA BE200, T38, OV10 AND T34 CAN OPR ON TWY 'J'.
A110-22PMSV METRO: ALTN PMSV IS MCGUIRE AFB ON 239.8 WX SVC AVBL H24 AT DSN 574-5908/5907,C757-764-5908/5907. AN/FMQ-19 AUTOMATED OBSERVING SYS IN USE; AUGMENTED BY HUMAN OBSN WHEN NEC. DUR WX FLT CLOSURE OR EVAC, REMOTE BRIEFING SVC AVBL FROM 15 OP WX SQ (SCOTT AFB) DSN 576-9755 OR 576-9701 THRU 9704, C618-256-9755 OR 618-256-9701 THRU 9704.
A110-24CAUTION: ATC WILL RELAY TWR PREVAILING VIS, SECTOR VIS, LCL PIREPS OR AN OCCURRENCE OF PREV UNREPORTED WX COND THAT COULD AFFECT OPS TO WX FLT.
A110-26REMARKS: TWY 'J' IS RESTRICTED TO ACFT WITH TOTAL WINGSPAN OF 80 FT OR LESS AND 100000 LBS. OR LESS GROSS WEIGHT.
A110-27RSTD: ACC RSRS APPLIED TO ACC ACFT ONLY.
A110-28WGT BEARING WAIVERS CTC AFLD MANAGER DSN 574-2508.
A110-29CAUTION: USE EXTREME CTN FOR UAS OPS AT NASA LANGLEY RESEARCH CNTR FR SFC-400 FT WITHIN 1/2 NM RAD OF 370607.51N/762313.88W.
A110-3A-GEAR: BAK-15 CABLE ALWAYS IN PLACE RWY 26 OVRN AND NET RAISED AT PILOTS REQ. BAK-12B(B) PENDANT CABLE ALWAYS IN PLACE. BAK-12B EXTN.
A110-30A-G O/S FOR MAINT: EAST BAK-12 TUE 1030-1130Z++, WEST BAK-12 WED 1030-1130Z++.
A110-31REMARKS: OPR 1100-0300Z++ MON-FRI, OPEN WKEND TO SUPPORT REG SKED DRILL (RSD)/GUARD WKEND ONCE A MONTH; CLSD FEDERAL HOL AND ACC DOWN DAYS UNLESS OPS APV BY 1 FW/CC. CTC COMD POST (CP) DSN 574-5411 OR C757-764-5411 OUTSIDE OF OPR HR.
A110-32MISC: TOWING CAPES LIMITED TO UNIVERSAL TOWBAR ONLY.
A110-33CAUTION: BASH PHASE I IN EFF 16 NOV - 14 FEB AND 01 APR - 14 SEP. BASH PHASE II IN EFF 15 FEB - 31 MAR AND 15 SEP - 15 NOV. CTC BASE OPS FOR CURRENT BASH COND.
A110-34REMARKS: COMMUNICATION-NASA OPS UNMTO C757-864-3887.
A110-35RSTD: V/STOL AIRCRAFT, VERTICAL TKOF, VERTICAL LOW APCH, AND VERTICAL LDG ARE PROHIBITED AT THE AFLD.
A110-4JASU: 2(M32A-60) MC-11) 4(A/M 32A-86).
A110-5FUEL: A++. EXPECT UP TO 30 MIN DELAY.
A110-7OIL: O-133-148-156 SOAP.
A110-8TRAN ALERT: OPR 1130-0430Z++ WKD, CLSD WKEND, HOL, AND ACC DOWN DAYS. EXP PROGRESSIVE TAXI TO PRK. FLW ME SVC AVBL UPON REQ.
A110-9RSTD: PPR CTC BASE OPS 1030-0430Z++ DSN 574-2504, C7577642504. PPR VALID +/- 1 HR OF APV TIME DUR AFLD OPRNG HRS. IF OUTSIDE OF APV TIME SLOT CTC BASE OPS TO UPDATE PPR. ONLY 1 F/W ACFT AUTH FR 1300-1400Z++. TRANSPORT/DV ACFT CTC BASE OPS 20 MIN PRIOR LDG.
A26ARFF IS CAT 8 WITH 8100 GAL OF CAPABILITY. STEADY ARFF COND FOR LANGLEY AFB IS OPTIMUM LEVEL OF SVC (OLS) FOR CAT 1-10. _.
E60-08_E5BAK-15(NI) (60 FT OVRN) HOOK BAK-12B(B) (1100 FT).
E60-26_BAK-12HOOK BAK-12B(B) (1002 FT) BAK-15(NI) (44 FT OVRN).
LANGLEY AFB (ICAO: KLFI, IATA: LFI) is a private airport located in HAMPTON, VA, US.
