KLEE
LEESBURG INTL
PublicPUB

3 miles NE of LEESBURG, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
28° 49' 22"N 81° 48' 30"W
76' MSL
1076' MSL
05W
JET A, 100LL
SAINT PETERSBURG (PIE)
JACKSONVILLE
JACKSONVILLE (ZJX)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

KLEE FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.725 119.35

ATIS

ATIS
 134.325

Ground

GND/P
 121.725

Tower

LCL/P
 119.35

FAA A/FD Pages

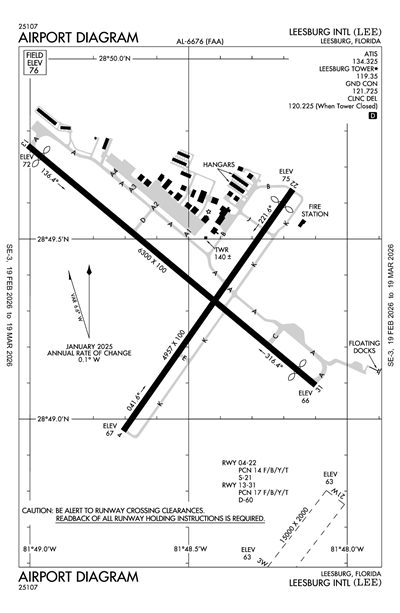

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
KLEE
Domestic
1/15/250837Z !LEE 01/017 LEE TWY D LGT U/S 2501150837-2501311100
1/15/250837Z !LEE 01/016 LEE TWY C LGT U/S 2501150837-2501311100
1/15/250836Z !LEE 01/015 LEE TWY B LGT U/S 2501150836-2501311100
1/15/250836Z !LEE 01/014 LEE TWY A LGT U/S 2501150836-2501311100
1/14/251607Z !LEE 01/013 LEE OBST TOWER LGT (ASR 1224874) 284407.30N0815338.90W (7.0NM SW LEE) 320.9FT (231.0FT AGL) U/S 2501141607-2505141607
1/9/252135Z !LEE 01/011 LEE OBST TOWER LGT (ASR 1263099) 284508.00N0815541.00W (7.7NM SW LEE) 408.5FT (319.9FT AGL) U/S 2501092135-2502102359
12/19/241817Z !LEE 12/018 LEE OBST TOWER LGT (ASR 1212888) 283909.70N0820024.00W (14.9NM SW LEE) 336.9FT (250.0FT AGL) U/S 2412191817-2506012359
12/10/240137Z !LEE 12/011 LEE OBST TOWER LGT (ASR 1234440) 283133.90N0815257.10W (18.3NM SSW LEE) 560.0FT (419.9FT AGL) U/S 2412100137-2502282359
10/17/241350Z !LEE 10/036 LEE OBST TOWER LGT (ASR 1028100) 285121.00N0814725.00W (2.2NM NNE LEE) 381.6FT (309.7FT AGL) U/S 2410171350-2502141350
FDC
7/25/241348Z !FDC 4/7769 LEE ODP LEESBURG INTL, LEESBURG, FL.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 5A...
TAKE-OFF MINIMUMS RWY 04: 400-2 1/4 OR STANDARD WITH MINIMUM CLIMB OF 228 FT/NM TO 500.
ALL OTHER DATA REMAINS AS PUBLISHED. 2407251348-2607251348EST
Yes
0700-1900
CITY OF LEESBURG
PO BOX 490630
LEESBURG, FL 34749-0630
Phone: 352-516-7236
TRACEY DEAN
PO BOX 490630
LEESBURG, FL 34749
Phone: 352-728-9801
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
LEE
--
ACTVT REILS 13 & 31; PAPI RWYS 04, 22, 13 & 31; MIRL RWYS 04/22 & 13/31 - CTAF. TWY LGTS OPR DUSK - 2200; AFT 2200 ACTVT - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
Low Pressure
None
Crop Dusting
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 03W/21W

15000 ft. x 2000 ft.

WATER
NONE


--
--
--
--
  Runway 03W Runway 21W
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation 63' 63'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 04/22

4957 ft. x 100 ft.
ASPH
Good
NONE
MED
14 /F/B/Y/T
21,000lbs
--
--
--
  Runway 04 Runway 22
True Heading 35°215°
Traffic Pattern Left Left
Markings NPI BSC
Markings Condition POOR POOR
Latitude 28° 48' 58"N 28° 49' 38"N
Longitude 81° 48' 42"W 81° 48' 10"W
Elevation 67' 75'
Threshold Crossing Height 45 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13/31

6300 ft. x 100 ft.
ASPH
Good
GRVD
MED
17 /F/B/Y/T
--
60,000lbs
--
--
  Runway 13 Runway 31
True Heading 130°310°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 28° 49' 46"N 28° 49' 06"N
Longitude 81° 49' 01"W 81° 48' 06"W
Elevation 72' 66'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-102BIRD ACT INVOF ARPT.
A110-103UNLGTD 30 FT OBSTNS 440 FT BFR AER RWY 04.
LEESBURG INTL (ICAO: KLEE, IATA: LEE) is a public airport located in LEESBURG, FL.
