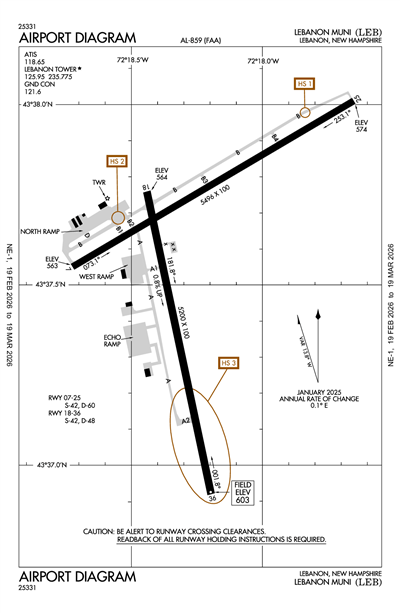

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLEB
LEBANON MUNI
PublicPUB

3 miles W of LEBANON, NH
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
43° 37' 34"N 72° 18' 15"W
603' MSL
1603' MSL
16W
JET A, 100LL
BANGOR (BGR)
NEW YORK
BOSTON (ZBW)
10/31/24-11/28/24
KLEB VFR
6:53 AM EST
Scattered 4,200'
10sm
39°F
23°F
30.21"Hg
340° 10kts
Gusts 18kts
AO2 SLP234 70002 T00391050 10056 20039 53036
KLEB 091153Z 34010G18KT 10SM SCT042 04/M05 A3021 RMK AO2 SLP234 70002 T00391050 10056 20039 53036
Add Your Business

KLEB FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 125.95

ATIS

ATIS
 118.65

ASOS

ASOS
603-298-8780
 118.65

Ground

GND/P
 121.6

Tower

LCL/P
 125.95

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KLEB
Sat, 11/9 6:26 AM EST
Sat, 11/9 7:00 AM EST - Sun, 11/10 7:00 AM EST
VFR
7:00 AM EST - 3:00 PM EST
Broken 9,000'
6sm
340° 10kts
Gusts 19kts
VFR
3:00 PM EST - 7:00 AM EST
Few 25,000'
6sm
340° 7kts
KLEB 091126Z 0912/1012 34010G19KT P6SM BKN090
   FM092000 34007KT P6SM FEW250
KLEB
Domestic
11/4/241141Z !LEB 11/006 LEB RWY 25 PAPI U/S 2411041141-2411292000EST
11/3/240200Z !LEB 11/003 LEB NAV ILS RWY 18 NOT MNT DLY 0200-1000 2411030200-2412161000EST
10/16/240448Z !LEB 10/036 LEB SVC PCL RWY 25 PAPI U/S 2410160448-2411152000EST
8/3/241039Z !LEB 08/005 LEB RWY 07/25 REDL NOT STD 2408031039-2508021900
7/5/240952Z !LEB 07/007 LEB APRON SOUTH RAMP IRREGULAR SFC 2407050952-2507051900
1/16/241755Z !LEB 01/118 LEB NAV LAH NDB U/S 2401161755-2612302000EST
FDC
3/26/241540Z !FDC 4/1994 LEB IAP LEBANON MUNI, LEBANON, NH.
RNAV (GPS) RWY 7, ORIG-F...
STRAIGHT-IN RWY 7 NA AT NIGHT.
HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NA.
2403261540-2603261540EST
1/25/241600Z !FDC 4/7946 LEB IAP LEBANON MUNI, LEBANON, NH.
ILS OR LOC RWY 18, AMDT 8...
RNAV (GPS) RWY 18, AMDT 1...
RNAV (GPS) RWY 25, ORIG-D...
RNAV (GPS) RWY 36, ORIG-D...
RNAV (GPS) RWY 7, ORIG-F...
CIRCLING SOUTH OF RWY 7/25 NA.
2401251600-2601251600EST
Yes
0600-2200
CITY OF LEBANON
51 N PARK ST
LEBANON, NH 03766
Phone: 603-298-8878
CARL GROSS
5 AIRPARK RD
WEST LEBANON, NH 03784
Phone: 603-298-8878
BANGOR FSS (BGR)
Toll Free: 1-800-WX-BRIEF
LEB
--
ACTVT REIL RWY 07 & 25; PAPI RWY 07, 25 & 36; MIRL RWY 07/25; HIRL RWY 18/36 - CTAF.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
High Pressure
Air Ambulance
Charter Service
Pilot Instruction
Annual Surveying

Runway 07/25

5496 ft. x 100 ft.
ASPH
Good
GRVD
MED

42,000lbs
60,000lbs
--
--
  Runway 07 Runway 25
True Heading 59°239°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 43° 37' 33"N 43° 38' 01"N
Longitude 72° 18' 43"W 72° 17' 39"W
Elevation 562' 574'
Threshold Crossing Height 50 ft. AGL 51 ft. AGL
Visual Glide Path Angle 4° 4°
Visual Slope Indicator P4L P4R
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 18/36

5200 ft. x 100 ft.
ASPH
Good
GRVD
HIGH

42,000lbs
48,000lbs
--
--
  Runway 18 Runway 36
True Heading 168°348°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 43° 37' 46"N 43° 36' 55"N
Longitude 72° 18' 27"W 72° 18' 12"W
Elevation 564' 603'
Threshold Crossing Height -- 34 ft. AGL
Visual Glide Path Angle -- 3.75°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes No
A110-1TREES 5600 FT E OF ARPT, ELEV 1253 FT; TREES 6700 FT E OF ARPT, ELEV 1275 FT; TREES INDCD ARE OBSTN LGTD.
A110-3OCNL WILDLIFE ACT ON & NR ARPT.
A110-4HANG GLDR OPS INVOF MT ASCUTNEY, VT 20 MI SW LEB SFC-8000 FT DAYS.
A110-5NO PLAS OR TGLS 0000-0700.
A110-6NOISE ABATEMENT PROCS IN EFCT, CTC AMGR. ALL ARR/DEP ACFT FLW MANUFACTURER'S RCMDD PROC FOR QUIET OPN & MNM NOISE.
A110-7COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -20C.
A110-8FOR CD IF TWR CLSD & UNA TO CTC FSS FREQ, CTC BOSTON ARTCC AT 603-879-6859.
A110-9HOT AIR BALLOON ACT 8.6 NM W OF ARPT.
LEBANON MUNI (ICAO: KLEB, IATA: LEB) is a public airport located in LEBANON, NH.
