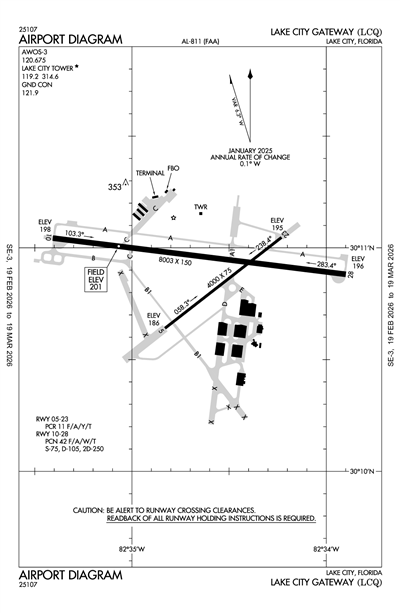

LAKE CITY GATEWAY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLCQ
ICAO KLCQIATA LCQLocal LCQ
LAKE CITY GATEWAY
PublicPUB

3 miles E of LAKE CITY, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
30° 10' 55"N 82° 34' 37"W
Elevation
201' MSL
Pattern Alt
1201' MSL
Mag Variation
6°W
Declination
3°W
Fuel
JET A, 100LL
FSS
GAINESVILLE (GNV)
Sectional
JACKSONVILLE
ARTCC
JACKSONVILLE (ZJX)
Data Effective
2/19/26-3/19/26
KLCQ LIFR
4:35 AM EST
Fog
Overcast 200'
0.25sm
55°F
55°F
30.25"Hg
Calm
AO2
METAR KLCQ 040935Z AUTO 00000KT 1/4SM FG OVC002 13/13 A3025 RMK AO2
+ Add Your Business

KLCQ FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 120.675
(386) 754-9366

Common

CTAF 119.2
ACTVT REIL RWY 10 & 28; MIRL RWY 5/23 & 10/28 - CTAF.
UNICOM 122.95

Ground

LAKE CITY GROUND 121.9
0800-1630 MON-FRI

Tower

LAKE CITY TOWER 119.2
0800-1630 MON-FRI

Center

JACKSONVILLE CENTER 125.375
LOW, APCH/DEP SVC PRVDD BY JACKSONVILLE ARTCC ON FREQS 125.375/254.325 (LAKE CITY RCAG).

Emergency

Emergency 121.5

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Instrument Approach

Terminal Area Forecast

KGNV (33nm)
Wed, 3/4 12:35 AM EST
Wed, 3/4 1:00 AM EST - Thu, 3/5 1:00 AM EST
LIFR
1:00 AM EST - 2:00 AM EST
Broken 400'
6sm
050° 7kts
LIFR
2:00 AM EST - 4:00 AM EST
Mist
Broken 300'
1sm
060° 3kts
LIFR
4:00 AM EST - 8:30 AM EST
Fog
Broken 200'
0.5sm
Calm
LIFR
8:30 AM EST - 10:00 AM EST
Mist
Overcast 600'
Broken 300'
2sm
060° 4kts
MVFR
10:00 AM EST - 11:00 AM EST
Broken 1,200'
Scattered 600'
6sm
070° 5kts
VFR
11:00 AM EST - 1:00 AM EST
Broken 3,500'
Scattered 2,500'
6sm
100° 8kts
TAF KGNV 040535Z 0406/0506 05007KT P6SM BKN004
   FM040700 06003KT 1SM BR BKN003
   FM040900 00000KT 1/2SM FG BKN002
   FM041330 06004KT 2SM BR BKN003 OVC006
   FM041500 07005KT P6SM SCT006 BKN012
   FM041600 10008KT P6SM SCT025 BKN035
KLCQ
EffectiveExpiresCategoryNOTAM
Domestic
3/3/26
1229Z
Runway!GNV 03/029 LCQ RWY 28 RWY END ID LGT U/S 2603031229-2609032111EST
3/3/26
1227Z
Runway!GNV 03/028 LCQ RWY 10 RWY END ID LGT U/S 2603031227-2609032111EST
2/28/26
0605Z
3/15/26
0505Z
!GNV 02/369 LCQ OBST TOWER LGT (ASR 1276649) 301039.70N0823515.10W (0.6NM WSW LCQ) 345.1FT (159.8FT AGL) U/S 2602280605-2603150505
2/26/26
1620Z
6/26/26
1620Z
!GNV 02/345 LCQ OBST TOWER LGT (ASR 1245167) 302158.40N0823745.90W (11.3NM NNW LCQ) 425.2FT (310.0FT AGL) U/S 2602261620-2606261620
2/23/26
0821Z
3/10/26
0721Z
!GNV 02/283 LCQ OBST TOWER LGT (ASR 1266517) 300651.20N0823008.10W (5.5NM SE LCQ) 405.8FT (254.9FT AGL) U/S 2602230821-2603100721
2/14/26
2039Z
!GNV 02/151 LCQ OBST TOWER LGT (ASR 1293316) 300036.20N0822843.90W (11.3NM SSE LCQ) 411.4FT (259.8FT AGL) U/S 2602142039-2603161700EST
2/6/26
1706Z
3/23/26
1105Z
!GNV 02/074 LCQ OBST TOWER LGT (ASN 2023-ASO-26902-OE) 301506N0822513W (9.3NM ENE LCQ) 473FT (315FT AGL) U/S 2602061706-2603231105
1/28/26
1608Z
4/28/26
0500Z
!GNV 01/362 LCQ OBST TOWER LGT (ASR 1235638) 301013.50N0823509.70W (0.9NM SW LCQ) 300.9FT (132.9FT AGL) U/S 2601281608-2604280500
1/26/26
0619Z
3/12/26
0619Z
!GNV 01/321 LCQ OBST TOWER LGT (ASN 2016-ASO-29468-OE) 303408N0824052W (23.6NM NNW LCQ) 445FT (320FT AGL) U/S 2601260619-2603120619
9/4/25
1227Z
9/4/26
1230Z
!GNV 09/039 LCQ TWY A EDGE LGT U/S 2509041227-2609041230
FDC
5/5/25
1411Z
!FDC 5/5906 LCQ IAP LAKE CITY GATEWAY, LAKE CITY, FL.
RNAV (GPS) RWY 28, AMDT 1C...
VGSI AND RNAV GLIDEPATH NOT COINCIDENT (VGSI ANGLE 3.00/TCH 51). CHANGE HELICOPTER NOTE TO READ: RWY 28 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED.
2505051411-2705051411EST
Yes
0800-1800
TWR ATNDD OTR TIMES BY NOTAM.
CITY OF LAKE CITY
205 NORTH MARION AVE
LAKE CITY, FL 32055
Phone: 386-719-5785
ED BUNNELL
3524 E US HWY 90
LAKE CITY, FL 32055
Phone: 386-752-1066
GAINESVILLE FSS (GNV)
Toll Free: 1-800-WX-BRIEF
GNV
--
ACTVT REIL RWY 10 & 28; MIRL RWY 5/23 & 10/28 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
Air Ambulance
Pilot Instruction

Runway 05/23

4000 ft. x 75 ft.
ASPH
Excellent
NONE
MED

--
--
--
--
  Runway 05 Runway 23
True Heading 52°232°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 30° 10' 38"N 30° 11' 03"N
Longitude 82° 34' 50"W 82° 34' 14"W
Elevation 186' 195'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 10/28

8003 ft. x 150 ft.
ASPH
Good
NONE
MED
42/F/A/W/T
75,000lbs
105,000lbs
250,000lbs
--
  Runway 10 Runway 28
True Heading 97°277°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 30° 11' 03"N 30° 10' 53"N
Longitude 82° 35' 24"W 82° 33' 54"W
Elevation 198' 196'
Threshold Crossing Height 53 ft. AGL 51 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A11CTC PERSON: DEMETRIUS JOHNSON
A110-2UNLIT 60 FT POLES ON MOVEMENT AREA. HELICOPTERS ADVISED TO TAXI ON PAVED AREAS ONLY.
A110-3WHEN ATCT CLSD, FOR CD CTC JACKSONVILLE ARTCC AT 904-845-1592.
A17-H1TWR ATNDD OTR TIMES BY NOTAM.
A39-05/23PCR VALUE: 11/F/A/Y/T
A81-APTACTVT REIL RWY 10 & 28; MIRL RWY 5/23 & 10/28 - CTAF.
LAKE CITY GATEWAY (ICAO: KLCQ, IATA: LCQ) is a public airport located in LAKE CITY, FL, US.
