iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLCH
LAKE CHARLES RGNL
PublicPUB

5 miles S of LAKE CHARLES, LA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
30° 07' 34"N 93° 13' 24"W
15' MSL
1015' MSL
03E
JET A-1+, 100LL
DE RIDDER (DRI)
HOUSTON
HOUSTON (ZHU)
7/11/24-8/8/24
KLCH VFR
5:53 AM CDT
Clear
10sm
76°F
73°F
29.89"Hg
Calm
AO2 SLP130 T02440228
KLCH 191053Z AUTO 00000KT 10SM CLR 24/23 A2989 RMK AO2 SLP130 T02440228
Add Your Business

KLCH FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 120.7

ATIS

ATIS
 118.75

Approach/Departure

APCH/P DEP/P
EAST
 119.8
APCH/P DEP/P IC
WEST
 119.35

Clearance Delivery

CD/P
 126.25

Emergency

EMERG
 121.5

Ground

GND/P
 121.8

Tower

LCL/P
 120.7

Other

TRSA
WEST
 119.35
TRSA
EAST
 119.8

FAA A/FD Pages

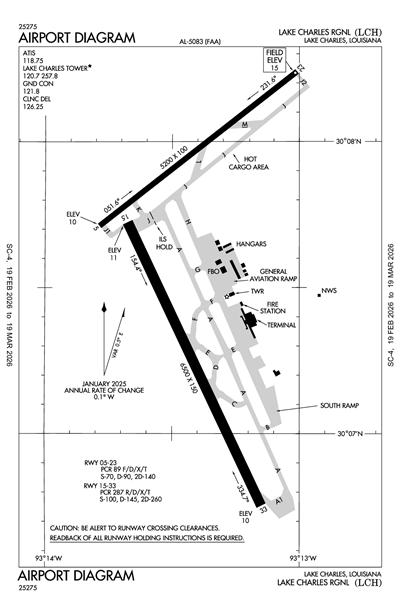

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KLCH
Thu, 9/19 12:20 AM CDT
Thu, 9/19 1:00 AM CDT - Fri, 9/20 1:00 AM CDT
VFR
1:00 AM CDT - 4:00 AM CDT
Few 5,000'
6sm
VRB° 3kts
MVFR
4:00 AM CDT - 9:00 AM CDT
Mist
Few 25,000'
5sm
Calm
VFR
9:00 AM CDT - 9:00 PM CDT
Few 25,000'
6sm
VRB° 5kts
VFR
9:00 PM CDT - 1:00 AM CDT
Sky Clear
6sm
Calm
KLCH 190520Z 1906/2006 VRB03KT P6SM FEW050
   FM190900 00000KT 5SM BR FEW250
   FM191400 VRB05KT P6SM FEW250
   FM200200 00000KT P6SM SKC
KLCH
Domestic
9/19/240500Z !LCH 09/026 LCH OBST CRANE (ASN UNKNOWN) 300822N0931235W (.39NM NNE APCH END RWY 23)
UNKNOWN (150FT AGL) FLAGGED AND LGTD 2409190500-2409191500
9/19/240500Z !LCH 09/024 LCH COM GND COM OUTLET 121.5 NOT AVBL 2409190500-2409191100
9/18/242100Z !LCH 09/030 LCH RWY 23 CLSD TO LDG 2409182100-2409201500
9/18/242100Z !LCH 09/029 LCH RWY 05 CLSD TO TKOF 2409182100-2409201500
9/18/242100Z !LCH 09/028 LCH RWY 23 RWY END ID LGT U/S 2409182100-2409201700
9/18/241300Z !LCH 09/016 LCH RWY 05 PAPI U/S 2409181300-2409181900
9/18/240500Z !LCH 09/025 LCH COM REMOTE COM OUTLET 122.3 U/S 2409180500-2409181100
9/18/240500Z !LCH 09/023 LCH COM GND COM OUTLET 121.5 NOT AVBL 2409180500-2409181100
9/17/241503Z !LCH 09/027 LCH COM REMOTE TRANS/REC 353.75 U/S 2409171503-2409202000EST
9/12/241231Z !LCH 09/018 LCH OBST TOWER LGT (ASR 1290434) 295605.30N0930429.10W (13.7NM SE LCH) 252.0FT (250.0FT AGL) U/S 2409121231-2410271231
9/10/241754Z !LCH 09/014 LCH COM REMOTE TRANS/REC 120.7 U/S 2409101754-2410252000EST
9/10/241023Z !LCH 09/011 LCH RWY 23 VASI U/S 2409101023-2410042000EST
8/28/241958Z !LCH 08/043 LCH OBST TOWER LGT (ASR 1259117) 294635.20N0930202.70W (23.0NM SSE LCH) 414.0FT (410.1FT AGL) U/S 2408281958-2409270001
8/19/241938Z !LCH 08/036 LCH OBST TOWER LGT (ASR 1254855) 294623.10N0925909.80W (24.3NM SSE LCH) 494.1FT (489.2FT AGL) U/S 2408191938-2412171938
6/26/242316Z !LCH 06/027 LCH OBST TOWER LGT (ASR 1216655) 300952.10N0931102.00W (3.1NM NE LCH) 131.9FT (110.9FT AGL) U/S 2406262316-2409240400
6/26/241305Z !LCH 06/026 LCH OBST TOWER LGT (ASN 2006-ASW-1666-OE) 294634N0930203W (26.7NM SSE LCH) 418FT (413FT AGL) U/S 2406261305-2409262300
1/18/240202Z !LCH 01/022 LCH RWY 15 PAPI U/S 2401180202-2501162000EST
FDC
9/16/241653Z !FDC 4/6210 LCH IAP LAKE CHARLES RGNL, LAKE CHARLES, LA.
RNAV (GPS) RWY 33, AMDT 2C...
DISREGARD PROFILE NOTE: VGSI AND RNAV GLIDEPATH NOT COINCIDENT (VGSI ANGLE 3.00/TCH 54).
2409161653-2609161653EST
1/9/231217Z !FDC 3/2150 LCH IAP LAKE CHARLES RGNL, LAKE CHARLES, LA.
RNAV (GPS) RWY 15, AMDT 1C...
CHANGE LINE OF MINIMA FROM LPV DA TO LPV DA **.
2301091217-2501091217EST
Yes
0500-2230
CALCASIEU PARISH
PO BOX 5820
LAKE CHARLES, LA 70607
Phone: 337-477-6051
HEATH ALLEN
PO DRAWER 5820
LAKE CHARLES, LA 70607-5820
Phone: 337-477-6051
DE RIDDER FSS (DRI)
Toll Free: 1-800-WX-BRIEF
LCH
--
WHEN ATCT CLSD ACTVT MALSR RWY 15; MALSF RWY 33; HIRL RWY 15/33; MIRL RWY 05/23 - CTAF. PAPI RWY 33 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
27
7
2
6
0
0
Major
Major
None
None
Air Freight
Avionics
Charter Service
Pilot Instruction
Aircraft Rental

Runway 05/23

5200 ft. x 100 ft.
ASPH
Good
NONE
MED

70,000lbs
90,000lbs
140,000lbs
--
  Runway 05 Runway 23
True Heading 52°232°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 30° 07' 43"N 30° 08' 14"N
Longitude 93° 13' 47"W 93° 13' 00"W
Elevation 10' 14'
Threshold Crossing Height 49 ft. AGL 47 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 15/33

6500 ft. x 150 ft.
CONC
Good
GRVD
HIGH

100,000lbs
145,000lbs
260,000lbs
--
  Runway 15 Runway 33
True Heading 155°335°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 30° 07' 43"N 30° 06' 45"N
Longitude 93° 13' 41"W 93° 13' 09"W
Elevation 11' 10'
Threshold Crossing Height 70 ft. AGL 54 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights MALSR MALSF
Centerline Lights
Runway End Identifier Lights
A110-1ATCT BLIND SPOT ON TWY J.
A110-2BIRDS ON & INVOF ARPT.
A110-4FOR CD IF UNA TO CTC ON FSS FREQ, CTC HOUSTON ARTCC AT 281-230-5622.
LAKE CHARLES RGNL (ICAO: KLCH, IATA: LCH) is a public airport located in LAKE CHARLES, LA.
