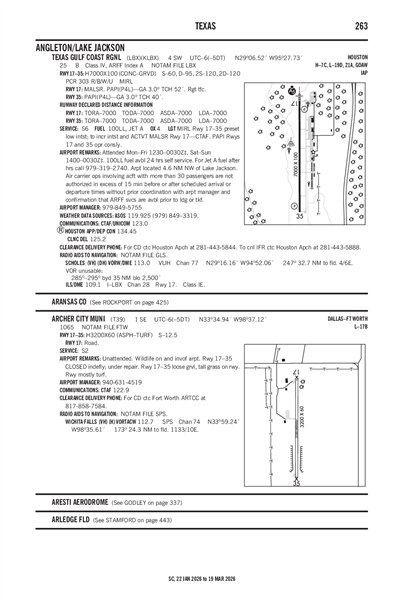

TEXAS GULF COAST RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLBX
ICAO KLBXIATA LJNLocal LBX
TEXAS GULF COAST RGNL
PublicPUB

4 miles SW of ANGLETON/LAKE JACKSON, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
29° 06' 31"N 95° 27' 43"W
Elevation
25' MSL
Pattern Alt
1025' MSL
Mag Variation
2°E
Declination
5°E
Fuel
JET A, 100LL
FSS
MONTGOMERY COUNTY (CXO)
Sectional
HOUSTON
ARTCC
HOUSTON (ZHU)
Data Effective
2/19/26-3/19/26
KLBX IFR
9:53 PM CST
Overcast 600'
9sm
71°F
69°F
30.08"Hg
130° 9kts
AO1 SLP186 T02170206
METAR KLBX 040353Z AUTO 13009KT 9SM OVC006 22/21 A3008 RMK AO1 SLP186 T02170206
+ Add Your Business

KLBX FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 119.925
(979) 849-3319

Common

CTAF 123.0
MIRL RWY 17/35 PRESET LOW INTST; TO INCR INTST & ACTVT MALSR RWY 17 - CTAF. PAPI RWYS 17 & 35 OPR CONSLY.
UNICOM 123.0

Clearance

Clearance Delivery 125.2

Arrival

BLUBELL STAR 124.225
CESAN STAR 121.3
HUDZY STAR 120.05
OHIIO STAR 120.05
SNDAY RNAV STAR 124.225
TKNIQ STAR 119.625
TSHIRT STAR 119.175
TSHRT STAR 119.175
WAPPL STAR 120.05

Approach

HOUSTON APPROACH 134.45

Departure

ALEXANDRIA DP 134.45
BLTWY RNAV DP 134.45
BORRN RNAV DP 134.45
CRIED DP 134.45
DREMR DP 134.45
EL DORADO DP 134.45
GIFFA DP 134.45
HOODO RNAV DP 134.45
HOUSTON DEPARTURE 134.45
INDIE RNAV DP 134.45
KARRR RNAV DP 134.45
LEONA DP 134.45
LUFKIN DP 134.45
LURIC DP 134.45
MMALT RNAV DP 134.45
STRYA DP 134.45
STYCK DP 134.45
TRUAX DP 134.45
WATFO DP 134.45
WYLSN RNAV DP 134.45

Terminal Area Forecast

KLBX
Tue, 3/3 5:38 PM CST
Tue, 3/3 6:00 PM CST - Wed, 3/4 6:00 PM CST
MVFR
6:00 PM CST - 8:00 PM CST
Broken 3,500'
Broken 2,000'
6sm
170° 14kts
IFR
8:00 PM CST - 2:00 AM CST
Broken 1,500'
Broken 600'
6sm
150° 9kts
IFR
2:00 AM CST - 9:00 AM CST
Broken 1,500'
Broken 900'
6sm
140° 8kts
MVFR
9:00 AM CST - 3:00 PM CST
Broken 1,500'
6sm
150° 10kts
VFR
3:00 PM CST - 6:00 PM CST
Broken 3,500'
6sm
150° 11kts
TAF KLBX 032338Z 0400/0424 17014KT P6SM BKN020 BKN035
   FM040200 15009KT P6SM BKN006 BKN015
   FM040800 14008KT P6SM BKN009 BKN015
   FM041500 15010KT P6SM BKN015
   FM042100 15011KT P6SM BKN035
KLBX
EffectiveExpiresCategoryNOTAM
Domestic
2/23/26
1508Z
2/27/26
2159Z
!LBX 02/021 LBX AD AP ALL SFC WIP GRASS CUTTING 2602231508-2602272159
2/23/26
1045Z
3/23/26
2359Z
!LBX 02/020 LBX OBST TOWER LGT (ASR 1047345) 285700.00N0952546.00W (9.6NM S LBX) 303.8FT (298.6FT AGL) U/S 2602231045-2603232359
2/21/26
2200Z
3/8/26
2200Z
!LBX 02/019 LBX OBST POWER LINE LGT (ASN 2020-ASW-7837-OE) 285710N0952623W (9.3NM S LBX) 232FT (223FT AGL) U/S 2602212200-2603082200
2/21/26
0100Z
3/8/26
0100Z
!LBX 02/018 LBX OBST POWER LINE LGT (ASN 2020-ASW-7839-OE) 290316N0953847W (10.3NM WSW LBX) 230FT (213FT AGL) U/S 2602210100-2603080100
2/20/26
1404Z
2/27/26
2159Z
!LBX 02/017 LBX AD AP SELF SERVE FUEL NOT AVBL 2602201404-2602272159
2/15/26
2149Z
3/2/26
2149Z
!LBX 02/014 LBX OBST TOWER LGT (ASN 2014-ASW-3782-OE) 285709N0952015W (11.4NM SE LBX) 226FT (218FT AGL) U/S 2602152149-2603022149
2/15/26
2124Z
3/2/26
2124Z
!LBX 02/013 LBX OBST POWER LINE LGT (ASN 2019-ASW-11069-OE) 285917N0952209W (8.7NM SE LBX) 235FT (230FT AGL) U/S 2602152124-2603022124
2/15/26
0213Z
3/2/26
0213Z
!LBX 02/011 LBX OBST POWER LINE LGT (ASN 2014-ASW-3759-OE) 285658N0952018W (11.5NM SE LBX) 222FT (216FT AGL) U/S 2602150213-2603020213
2/14/26
2046Z
3/1/26
2046Z
!LBX 02/008 LBX OBST TOWER LGT (ASN 2016-ASW-6111-OE) 285516N0952028W (12.8NM SSE LBX) 211FT (208FT AGL) U/S 2602142046-2603012046
1/28/26
1357Z
4/28/26
2300Z
!LBX 01/024 LBX OBST TOWER LGT (ASR UNKNOWN) 285742.01N0952228.10W (11.5NM SSE LBX) 224FT (212FT AGL) U/S 2601281357-2604282300
FDC
2/25/26
1600Z
!FDC 6/9697 LBX SID TEXAS GULF COAST RGNL, ANGLETON/LAKE JACKSON, TX.
GIFFA ONE DEPARTURE...
DEPARTURE PROCEDURE DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
LOA VORTAC OUT OF SERVICE. 2602251600-2603042338EST
2/25/26
1600Z
!FDC 6/9684 LBX SID TEXAS GULF COAST RGNL, ANGLETON/LAKE JACKSON, TX.
LEONA FOUR DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
LOA VORTAC OUT OF SERVICE. 2602251600-2603042338EST
2/25/26
1500Z
3/3/26
2100Z
!FDC 6/9730 LBX SID TEXAS GULF COAST RGNL, ANGLETON/LAKE JACKSON, TX.
ALEXANDRIA THREE DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
AEX VORTAC OUT OF SERVICE. 2602251500-2603032100EST
2/25/26
1500Z
3/3/26
2200Z
!FDC 6/9723 LBX SID TEXAS GULF COAST RGNL, ANGLETON/LAKE JACKSON, TX.
EL DORADO ONE DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
ELD VOR/DME OUT OF SERVICE. 2602251500-2603032200EST
2/13/26
1339Z
!FDC 6/3833 LBX SID TEXAS GULF COAST RGNL, ANGLETON/LAKE JACKSON, TX.
CRIED ONE DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CQY VOR OUT OF SERVICE. 2602131339-2802141339EST
2/13/26
1339Z
!FDC 6/3820 LBX SID TEXAS GULF COAST RGNL, ANGLETON/LAKE JACKSON, TX.
LEONA FOUR DEPARTURE...
BONHAM TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CQY VOR OUT OF SERVICE. 2602131339-2802141339EST
10/31/25
2050Z
!FDC 5/9856 LBX SID TEXAS GULF COAST RGNL, ANGLETON/LAKE JACKSON, TX.
HOODO SEVEN DEPARTURE (RNAV)...
DEPARTURE PROCEDURE GPS REQUIRED,
LEV VORTAC OUT OF SERVICE. 2510312050-2612312050EST
3/12/25
1402Z
!FDC 5/2014 LBX SID TEXAS GULF COAST RGNL, ANGLETON/LAKE JACKSON, TX.
KARRR SEVEN DEPARTURE (RNAV)...
CORPUS CHRISTI TRANSITION YOMOM TO CRP VORTAC MOCA 1600.
TRUAX TRANSITION,WWREN TRANSITION KAVCY TO RIIGG MOCA 2100.
ALL OTHER DATA REMAINS AS PUBLISHED. 2503121402-2703121402EST
No
MON-FRI 0630-1830
SAT-SUN 0800-1830
BRAZORIA COUNTY
BRAZORIA COUNTY COURTHOUSE
ANGLETON, TX 77515
Phone: 979-849-5711
JEFF BILYEU
8000 AIRPORT WAY
ANGLETON, TX 77515
Phone: 979-849-5755
MONTGOMERY COUNTY FSS (CXO)
Toll Free: 1-800-WX-BRIEF
LBX
--
MIRL RWY 17/35 PRESET LOW INTST; TO INCR INTST & ACTVT MALSR RWY 17 - CTAF. PAPI RWYS 17 & 35 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
Minor
Major
Low Pressure
None
Charter Service
Pilot Instruction
Aircraft Rental

Runway 17/35

7000 ft. x 100 ft.
CONC
Excellent
GRVD
MED

60,000lbs
95,000lbs
120,000lbs
--
  Runway 17 Runway 35
True Heading 180°360°
Traffic Pattern Right
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 29° 07' 06"N 29° 05' 56"N
Longitude 95° 27' 44"W 95° 27' 43"W
Elevation 25' 24'
Threshold Crossing Height 52 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-3ACR OPNS INVOLVING ACFT WITH MORE THAN 30 PSGRS ARE NOT AUZD IN EXCESS OF 15 MIN BEFORE OR AFT SKED ARR OR DEP TIMES WITHOUT PRIOR COORDINATION WITH AMGR & CONFIRMATION THAT ARFF SVCS ARE AVBL PRIOR TO LNDG OR TKOF.
A110-4FOR CD CTC HOUSTON APCH AT 281-443-5844. TO CNL IFR CTC HOUSTON APCH AT 281-443-5888.
A16ALSO 979-849-5756.
A3ARPT LCTD 4.6 NM NW OF LAKE JACKSON.
A39-17/35PCR VALUE: 303/R/B/W/U
A70-100LL100LL FUEL AVBL 24 HRS SELF SERVICE. FOR JET A FUEL AFT HRS CALL 979-319-2740.
A81-APTMIRL RWY 17/35 PRESET LOW INTST; TO INCR INTST & ACTVT MALSR RWY 17 - CTAF. PAPI RWYS 17 & 35 OPR CONSLY.
TEXAS GULF COAST RGNL (ICAO: KLBX, IATA: LBX) is a public airport located in ANGLETON/LAKE JACKSON, TX, US.
