KLBF
NORTH PLATTE RGNL/LEE BIRD FLD
PublicPUB

3 miles E of NORTH PLATTE, NE
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 07' 34"N 100° 41' 01"W
2777' MSL
3777' MSL
06E
JET A, 100LL
COLUMBUS (OLU)
OMAHA
DENVER (ZDV)
7/11/24-8/8/24
KLBF LIFR
5:53 AM CDT
Fog
No Clouds
0.25sm
56°F
55°F
29.83"Hg
300° 5kts
AO2 SLP078 T01330128 $
KLBF 191053Z AUTO 30005KT 1/4SM FG 13/13 A2983 RMK AO2 SLP078 T01330128 $
Add Your Business

KLBF FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

ASOS

ASOS
308-534-1617
 118.425

FAA A/FD Pages

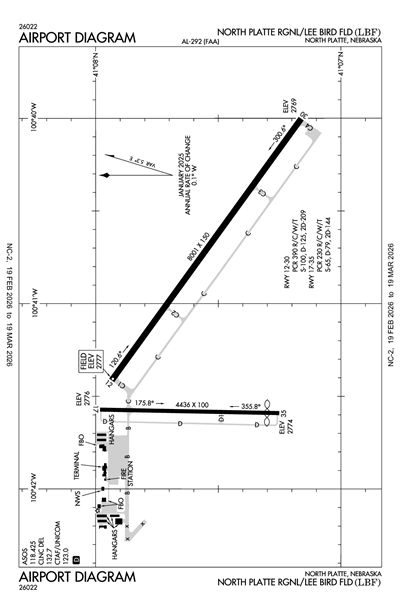

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KLBF
Thu, 9/19 5:02 AM CDT
Thu, 9/19 5:00 AM CDT - Fri, 9/20 1:00 AM CDT
IFR
5:00 AM CDT - 8:00 AM CDT
Mist
Sky Clear
1sm
300° 5kts
LIFR
Temporary 5:00 AM CDT - 7:00 AM CDT
Fog
No Clouds
0.5sm
Calm
VFR
8:00 AM CDT - 8:00 PM CDT
Sky Clear
6sm
330° 12kts
Gusts 18kts
VFR
8:00 PM CDT - 1:00 AM CDT
Sky Clear
6sm
VRB° 2kts
KLBF 191002Z 1910/2006 30005KT 1SM BR SKC
   TEMPO 1910/1912 1/2SM FG
   FM191300 33012G18KT P6SM SKC
   FM200100 VRB02KT P6SM SKC
KLBF
Domestic
9/13/240008Z !LBF 09/012 LBF OBST TOWER LGT (ASR 1048076) 411213.00N1004360.00W (5.2NM NNW LBF) 3626.6FT (608.9FT AGL) U/S 2409130008-2410132359
8/29/240504Z !LBF 08/074 LBF OBST TOWER LGT (ASR 1290304) 410730.60N1004437.90W (2.7NM W LBF) 2926.8FT (132.9FT AGL) U/S 2408290504-2409280001
7/26/242044Z !LBF 07/117 LBF OBST TOWER LGT (ASR 1038515) 410436.00N1004537.00W (4.6NM SW LBF) 3240.2FT (226.0FT AGL) U/S 2407262044-2409302359
7/9/240648Z !LBF 07/057 LBF OBST TOWER LGT (ASR 1247828) 411319.10N1004127.90W (5.8NM N LBF) 3491.8FT (395.0FT AGL) U/S 2407090648-2410152359
FDC
1/25/241405Z !FDC 4/7859 LBF IAP NORTH PLATTE RGNL/LEE BIRD FLD, NORTH PLATTE, NE.
ILS OR LOC RWY 30, AMDT 8...
RNAV (GPS) RWY 12, AMDT 1C...
RNAV (GPS) RWY 30, AMDT 2C...
RNAV (GPS) RWY 35, AMDT 1C...
CIRCLING MDA 3380/HAA 603 CAT A/B. TEMPORARY CRANE 3024FT MSL 1.11NM WEST OF RWY 35 (2023-ACE-2048-OE).
2401251405-2501121405EST
6/21/231200Z !FDC 3/3711 LBF IAP NORTH PLATTE RGNL/LEE BIRD FLD, NORTH PLATTE, NE.
VOR RWY 35, AMDT 18E...
FOMDO FIX MINIMUMS: CIRCLING MDA 3380/HAA 603 CAT A/B. TEMPORARY CRANE 3024FT MSL 1.11NM WEST OF RWY 35 (2023-ACE-2048-OE).
2306211200-2501210015EST
No
0600-2300
NORTH PLATTE AIRPORT AUTH
PO BOX 1517
NORTH PLATTE, NE 69103
Phone: 308-532-1900
MR. SAM SEAFELDT
5400 E LEE BIRD DR
NORTH PLATTE, NE 69101
Phone: (308) 530-0607
COLUMBUS FSS (OLU)
Toll Free: 1-800-WX-BRIEF
LBF
--
ACTVT HIRL RWY 12/30; MIRL RWY 17/35; PAPI RWY 12 & 30; VASI RWY 35; MALSR RWY 30 & REIL RWY 35 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
33
1
1
2
0
0
Major
Major
High & Low Pressure
Low Pressure
Air Freight
Charter Service
Pilot Instruction
Aircraft Rental

Runway 12/30

8001 ft. x 150 ft.
CONC
Excellent
GRVD
HIGH
33 /R/D/W/T
75,000lbs
110,000lbs
190,000lbs
--
  Runway 12 Runway 30
True Heading 126°306°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 07' 56"N 41° 07' 10"N
Longitude 100° 41' 25"W 100° 40' 00"W
Elevation 2,777' 2,769'
Threshold Crossing Height 55 ft. AGL 55 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights

Runway 17/35

4436 ft. x 100 ft.
CONC
Excellent
NONE
MED
22 /R/B/W/T
28,000lbs
48,000lbs
86,000lbs
--
  Runway 17 Runway 35
True Heading 181°1°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 07' 59"N 41° 07' 15"N
Longitude 100° 41' 34"W 100° 41' 35"W
Elevation 2,776' 2,774'
Threshold Crossing Height -- 36 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-1WATERFOWL ON & INVOF ARPT.
A110-2FOR CD CTC DENVER ARTCC ON FREQ. IF UNA, CTC FSS ON FREQ VIA RCO. IF UNA, CTC DENVER ARTCC AT 303-651-4257.
NORTH PLATTE RGNL/LEE BIRD FLD (ICAO: KLBF, IATA: LBF) is a public airport located in NORTH PLATTE, NE.
