iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLBE
ARNOLD PALMER RGNL
PublicPUB

2 miles SW of LATROBE, PA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 16' 23"N 79° 24' 37"W
1199' MSL
2199' MSL
10W
JET A, 100LL
ALTOONA (AOO)
DETROIT
CLEVELAND (ZOB)
4/17/25-5/15/25
KLBE VFR
2:55 AM EDT
Clear
10sm
50°F
45°F
30.12"Hg
Calm
AO2
KLBE 030655Z AUTO 00000KT 10SM CLR 10/07 A3012 RMK AO2
+ Add Your Business

KLBE FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 125.0

ATIS

ATIS
(724) 539-0671
 118.375

Emergency

EMERG
 121.5

Ground

GND/P
 121.8

Tower

LCL/P
 125.0

FAA A/FD Pages

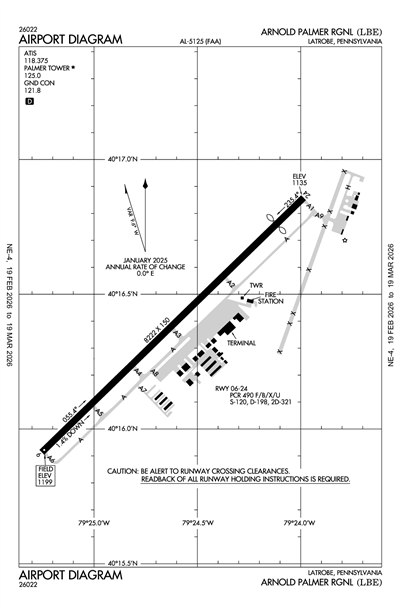

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KLBE
Tue, 6/3 1:23 AM EDT
Tue, 6/3 2:00 AM EDT - Wed, 6/4 2:00 AM EDT
VFR
2:00 AM EDT - 5:00 PM EDT
Scattered 25,000'
6sm
190° 5kts
VFR
5:00 PM EDT - 2:00 AM EDT
Haze
Broken 25,000'
6sm
170° 4kts
KLBE 030523Z 0306/0406 19005KT P6SM SCT250
   FM032100 17004KT 6SM HZ BKN250
KLBE
Domestic
5/27/250200Z !LBE 05/063 LBE TWY A CLSD 2505270200-2505271000
5/27/250200Z !LBE 05/062 LBE RWY 06/24 CLSD 2505270200-2505271000
5/27/250200Z !LBE 05/061 LBE AD AP ALL SFC WIP CONST 2505270200-2505271000
5/23/250200Z !LBE 05/055 LBE RWY 06/24 CLSD 2505230200-2505231000
5/23/250200Z !LBE 05/054 LBE TWY A CLSD 2505230200-2505231000
5/23/250200Z !LBE 05/053 LBE AD AP ALL SFC WIP CONST 2505230200-2505231000
5/22/250200Z !LBE 05/052 LBE TWY A CLSD 2505220200-2505221000
5/22/250200Z !LBE 05/051 LBE RWY 06/24 CLSD 2505220200-2505221000
5/22/250200Z !LBE 05/050 LBE AD AP ALL SFC WIP CONST 2505220200-2505221000
5/16/251752Z !LBE 05/049 LBE COM SEE ZOB 05/466 JOHNSTOWN APP CLR DELIVERY U/S 2505161752-2505240300
5/2/250238Z !LBE 05/004 LBE OBST TOWER LGT (ASR 1230998) 402029.70N0791402.30W (9.1NM ENE LBE) 2953.1FT (350.1FT AGL) U/S 2505020238-2506020300
4/14/251000Z !LBE 04/032 LBE TWY A BTN TWY D AND TWY K CLSD 2504141000-2506090200
4/14/250957Z !LBE 04/033 LBE TWY E CLSD 2504140957-2506081000
FDC
5/2/251752Z !FDC 5/5076 LBE IAP ARNOLD PALMER RGNL, LATROBE, PA.
ILS OR LOC RWY 24, AMDT 17C...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
AGC VOR OUT OF SERVICE. 2505021752-2508201752EST
Yes
ALL
WESTMORELAND COUNTY ARPT AUTH
148 AVIATION LANE, SUITE 103
LATROBE, PA 15650-9549
Phone: 724-640-7234
GABE MONZO
148 AVIATION LANE, SUITE 103
LATROBE, PA 15650-9549
Phone: 724-539-8100
ALTOONA FSS (AOO)
Toll Free: 1-800-WX-BRIEF
LBE
--
WHEN ATCT CLSD, ACTVT MALSR RWY 24; REIL RWY 06; HIRL RWY 06/24; TWY A, B, C & D - CTAF.
N/A
Yes - Lighted
N/A
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High Pressure
None
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 06/24

8222 ft. x 150 ft.
ASPH
Excellent
GRVD
HIGH

120,000lbs
198,000lbs
321,000lbs
--
  Runway 06 Runway 24
True Heading 46°226°
Traffic Pattern Right
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 40° 15' 55"N 40° 16' 51"N
Longitude 79° 25' 15"W 79° 23' 59"W
Elevation 1,199' 1,135'
Threshold Crossing Height 48 ft. AGL 55 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-2DEER & BIRDS ON & INVOF ARPT.
A110-4FOR CD WHEN ATCT CLSD CTC JOHNSTOWN APCH AT 814-532-5960, WHEN APCH CLSD CTC CLEVELAND ARTCC AT 440-774-0213.
ARNOLD PALMER RGNL (ICAO: KLBE, IATA: LBE) is a public airport located in LATROBE, PA.
