LOS ALAMOS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLAM
ICAO KLAMLocal LAM
LOS ALAMOS
PublicPUB

1 miles E of LOS ALAMOS, NM, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 52' 47"N 106° 16' 07"W
Elevation
7171' MSL
Pattern Alt
8171' MSL
Mag Variation
8°E
Declination
10°E
Fuel
JET A-1+, 100LL
FSS
ALBUQUERQUE (ABQ)
Sectional
DENVER
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
2/19/26-3/19/26
KLAM VFR
2:35 AM MST
Clear
10sm
43°F
13°F
30.15"Hg
200° 5kts
AO2 T00601108 $
METAR KLAM 040935Z AUTO 20005KT 10SM CLR 06/M11 A3015 RMK AO2 T00601108 $
+ Add Your Business

KLAM FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 124.175
(505) 662-8423

Common

CTAF 123.0
ACTVT REILS RWY 27; MIRL RWY 09/27 - CTAF.
UNICOM 123.0

Center

ALBUQUERQUE CENTER 132.8
LOW, APCH/DEP SVC PRVDD BY ALBUQUERQUE ARTCC (ZAB) ON FREQS 132.8/346.35 (TESUQUE PEAK RCAG).

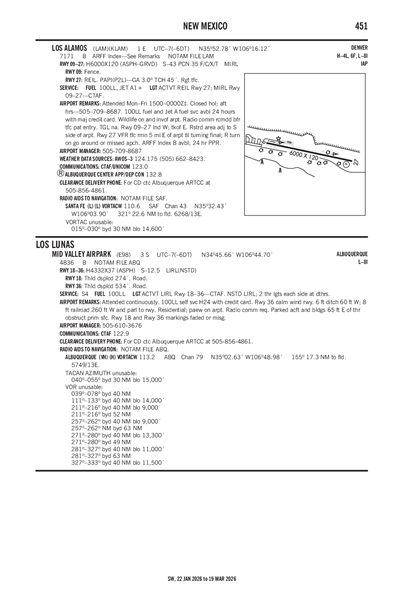

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KSAF (18nm)
Tue, 3/3 10:20 PM MST
Tue, 3/3 11:00 PM MST - Wed, 3/4 11:00 PM MST
VFR
11:00 PM MST - 3:00 AM MST
Broken 11,000'
6sm
360° 10kts
VFR
3:00 AM MST - 1:00 PM MST
Few 12,000'
6sm
020° 6kts
VFR
1:00 PM MST - 7:00 PM MST
Few 25,000'
6sm
250° 9kts
VFR
7:00 PM MST - 11:00 PM MST
Scattered 20,000'
6sm
VRB° 5kts
TAF KSAF 040520Z 0406/0506 36010KT P6SM BKN110
   FM041000 02006KT P6SM FEW120
   FM042000 25009KT P6SM FEW250
   FM050200 VRB05KT P6SM SCT200
KLAM
EffectiveExpiresCategoryNOTAM
Domestic
1/27/26
2143Z
4/28/26
0500Z
!LAM 01/003 LAM OBST TOWER LGT (ASR 1056567) 355308.00N1062317.00W (5.8NM W LAM) 10294.6FT (304.8FT AGL) U/S 2601272143-2604280500
12/4/25
1523Z
Runway!LAM 12/002 LAM RWY 09/27 CLSD TO TGL 2512041523-PERM
No
MON-FRI 0800-1700
CLOSED HOL; AFT HRS - 505-709-8687.
COUNTY OF LOS ALAMOS
1000 CENTRAL AVE STE 350
LOS ALAMOS, NM 87544
Phone: 505-663-1750
GARY GODDARD
1040 AIRPORT RD
LOS ALAMOS, NM 87544
Phone: 505-709-8687
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
LAM
--
ACTVT REILS RWY 27; MIRL RWY 09/27 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
No
None
None
None
None
None

Runway 09/27

6000 ft. x 120 ft.
ASPH
Good
GRVD
MED
35/F/C/X/T
43,000lbs
--
--
--
  Runway 09 Runway 27
True Heading 102°282°
Traffic Pattern Left Right
Markings BSC NPI
Markings Condition FAIR FAIR
Latitude 35° 52' 53"N 35° 52' 40"N
Longitude 106° 16' 43"W 106° 15' 32"W
Elevation 7,171' 7,080'
Threshold Crossing Height -- 45 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-12WILDLIFE ON & INVOF ARPT.
A110-13ARFF INDEX B AVBL; 24 HR PPR.
A110-15FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
A110-2RADIO COMM RCMDD BFR TFC PAT ENTRY.
A110-9RSTRD AREA ADJ TO S SIDE OF ARPT.
A17-M1CLOSED HOL; AFT HRS - 505-709-8687.
A30-09/27LND W; TKOF E.
A30A-27VFR TFC RMN 5 MI E OF ARPT TIL TURNING FINAL; R TURN ON GO AROUND OR MISSED APCH.
A57-09CTLG OBSTN EXCEEDS A 45 DEG SLOPE.
A58-09+8 FT BLAST BARRIER 75 FT FM THR 50 FT L & R OF CNTRLN; +25 FT LIGHT POLE 198 FT FM THR 135 FT L OF CNTRLN; +4-15 FT BRUSH & TREES 80-200 FT FM THR 125 FT L & R OF CNTRLN.
A70-100LL100LL AND JET-A FUEL SVC AVBL 24 HRS WITH MAJ CREDIT CARD.
A75-TTIE DOWNS AVBL ON RAMP NEAR FUEL FARM.
A81-APTACTVT REILS RWY 27; MIRL RWY 09/27 - CTAF.
E111PRVDD APCH SLOPES TO RWY ENDS AT LEAST 20:1 & EXCEPTIONS TO THE ONE WAY OPNS ARE PRVDD IN THE CASE OF ADVERSE TAIL WINDS WHICH WOULD EXCEED A GIVEN ACFT'S TAIL WIND LIMITATIONS.
E40-271.5 UP TO W.
LOS ALAMOS (ICAO: KLAM, IATA: LAM) is a public airport located in LOS ALAMOS, NM, US.
