iFlightPlanner



...

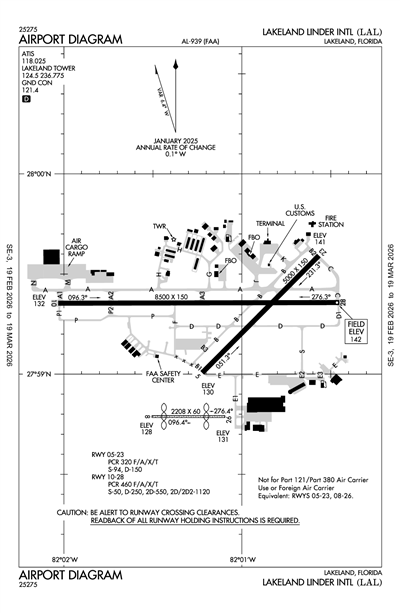

LAKELAND LINDER INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLAL
ICAO KLALIATA LALLocal LAL
LAKELAND LINDER INTL
PublicPUB

4 miles SW of LAKELAND, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
27° 59' 15"N 82° 01' 08"W
Elevation
142' MSL
Pattern Alt
1142' MSL
Mag Variation
6°W
Declination
6°W
Fuel
JET A, 100LL
FSS
SAINT PETERSBURG (PIE)
Sectional
MIAMI
ARTCC
MIAMI (ZMA)
Data Effective
2/19/26-3/19/26
KLAL VFR
4:55 AM EST
Clear
9sm
64°F
64°F
30.20"Hg
050° 4kts
AO2 T01750175 $
METAR KLAL 040955Z AUTO 05004KT 9SM CLR 17/17 A3020 RMK AO2 T01750175 $
+ Add Your Business

KLAL FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 118.025
AWOS-3PT (863) 834-2030

Common

UNICOM 122.95

Ground

LAKELAND GROUND 121.4

Tower

LAKELAND TOWER 124.5

Arrival

LUBBR STAR 135.5
MAATY STAR 118.8
RAYZZ STAR 118.8

Approach

TAMPA APPROACH 120.65
TAMPA APPROACH 119.9
Secondary

Departure

TAMPA DEPARTURE 120.65
TAMPA DEPARTURE 119.9
Secondary

Flight Service

Flight Service 122.1
(PIE)

Emergency

Emergency 121.5

Terminal Area Forecast

KLAL
Wed, 3/4 12:20 AM EST
Wed, 3/4 1:00 AM EST - Thu, 3/5 1:00 AM EST
VFR
1:00 AM EST - 9:00 AM EST
Few 25,000'
6sm
060° 6kts
VFR
9:00 AM EST - 1:00 PM EST
Scattered 25,000'
Few 5,000'
6sm
090° 9kts
VFR
1:00 PM EST - 5:00 PM EST
Broken 25,000'
Scattered 5,000'
6sm
090° 9kts
VFR
5:00 PM EST - 1:00 AM EST
Broken 25,000'
Few 5,000'
6sm
090° 11kts
TAF KLAL 040520Z 0406/0506 06006KT P6SM FEW250
   FM041400 09009KT P6SM FEW050 SCT250
   FM041800 09009KT P6SM SCT050 BKN250
   FM042200 09011KT P6SM FEW050 BKN250
KLAL
EffectiveExpiresCategoryNOTAM
Domestic
3/6/26
1300Z
3/8/26
2200Z
!LAL 03/017 LAL AIRSPACE UAS WI AN AREA DEFINED AS .2NM RADIUS OF 275839N0820128W (1.2NM S LAL) SFC-400FT AGL DLY 1300-2200 2603061300-2603082200
3/6/26
1300Z
3/8/26
2200Z
Runway!LAL 03/016 LAL RWY 08/26 CLSD EXC TAX 1HR PPR DLY 1300-2200 2603061300-2603082200
3/4/26
1800Z
3/4/26
2100Z
Runway!LAL 03/015 LAL RWY 10 PAPI U/S 2603041800-2603042100
3/3/26
0748Z
3/4/26
0700Z
Runway!LAL 03/012 LAL RWY 05 TWY DIRECTION SIGN AT TWY B1 LGT U/S 2603030748-2603040700
3/2/26
2110Z
6/1/26
0500Z
!LAL 03/011 LAL OBST TOWER LGT (ASR 1048950) 275956.30N0820144.80W (0.9NM NW LAL) 258.2FT (122.0FT AGL) U/S 2603022110-2606010500
3/2/26
1328Z
4/4/26
2300Z
!LAL 03/008 LAL APRON TXL J BTN US CUST RAMP AND TWY J CLSD 2603021328-2604042300
3/2/26
1326Z
4/4/26
2300Z
!LAL 03/007 LAL TWY J CLSD 2603021326-2604042300
3/2/26
1300Z
4/4/26
2300Z
!LAL 03/006 LAL TWY A BTN TWY B AND RWY 05/23 CLSD 2603021300-2604042300
3/2/26
1300Z
4/4/26
2300Z
!LAL 03/005 LAL TWY A BTN AERO CENTER LAKELAND WEST RAMP AND TWY B CLSD 2603021300-2604042300
3/2/26
1300Z
4/4/26
2300Z
Runway!LAL 03/004 LAL RWY 05/23 CLSD EXC TAX 2603021300-2604042300
2/27/26
1739Z
Runway!LAL 02/041 LAL RWY 10 RVRM U/S 2602271739-2603042000EST
2/25/26
1501Z
4/30/26
2300Z
!LAL 02/034 LAL TWY P2 CL MARKINGS FOR RWY 10/28 OBSC 2602251501-2604302300
2/25/26
1500Z
4/30/26
2300Z
!LAL 02/033 LAL TWY B CL MARKINGS FOR RWY 10/28 OBSC 2602251500-2604302300
2/25/26
1458Z
4/30/26
2300Z
!LAL 02/032 LAL TWY A2 CL MARKINGS FOR RWY 10/28 OBSC 2602251458-2604302300
2/13/26
0247Z
3/15/26
2300Z
!LAL 02/012 LAL OBST TOWER LGT (ASR 1034101) 275610.10N0815807.30W (4.0NM SE LAL) 337.6FT (202.8FT AGL) U/S 2602130247-2603152300
2/8/26
2340Z
5/9/26
0500Z
!LAL 02/006 LAL OBST TOWER LGT (ASR 1012263) 280249.00N0815634.50W (5.5NM NE LAL) 419.0FT (250.0FT AGL) U/S 2602082340-2605090500
1/29/26
1826Z
4/30/26
2200Z
!LAL 01/031 LAL APRON TXL H BTN DOHERTY RAMP AND NEEL AVIATION RAMP WIP CONST 2601291826-2604302200
1/29/26
1825Z
4/30/26
2200Z
!LAL 01/030 LAL APRON TXL H BTN DOHERTY RAMP AND NEEL AVIATION RAMP CLSD TO ACFT WINGSPAN MORE THAN 49FT 2601291825-2604302200
1/29/26
1749Z
4/30/26
2200Z
!LAL 01/029 LAL APRON TXL E BTN VARNA RAMP AND PHANTOM RAMP WIP CONST 2601291749-2604302200
FDC
1/8/25
1621Z
!FDC 5/1507 LAL IAP LAKELAND LINDER INTL, LAKELAND, FL.
VOR RWY 10, AMDT 4G...
DISREGARD NOTE: CIRCLING RWY 28 NA AT NIGHT.
2501081621-2701081621EST
Yes
ALL
CITY OF LAKELAND
3900 DON EMERSON DRIVE SUITE 210
LAKELAND, FL 33811
Phone: 863-834-3298
KRIS HALLSTRAND
3900 DON EMERSON DRIVE SUITE 210
LAKELAND, FL 33811
Phone: 863-834-3298
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
LAL
--
PAPI RWY 05 & 23, 10 & 28 OPER CONT.
N/A
Yes
Yes
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
High & Low Pressure
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 05/23

5000 ft. x 150 ft.
ASPH
Fair
GRVD
HIGH

94,000lbs
150,000lbs
--
--
  Runway 05 Runway 23
True Heading 45°225°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 27° 59' 00"N 27° 59' 36"N
Longitude 82° 01' 13"W 82° 00' 34"W
Elevation 130' 141'
Threshold Crossing Height 59 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 08/26

2208 ft. x 60 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern
Markings NSTD NONE
Markings Condition GOOD GOOD
Latitude 27° 58' 47"N 27° 58' 47"N
Longitude 82° 01' 30"W 82° 01' 06"W
Elevation 128' 131'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 10/28

8500 ft. x 150 ft.
ASPH
Excellent
GRVD
HIGH

50,000lbs
250,000lbs
550,000lbs
1,120,000lbs
  Runway 10 Runway 28
True Heading 90°270°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 27° 59' 21"N 27° 59' 21"N
Longitude 82° 02' 02"W 82° 00' 27"W
Elevation 132' 142'
Threshold Crossing Height 71 ft. AGL 71 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights
A110-1BIRD ACT ON & INVOF ARPT.
A110-10USCBP USER FEE ARPT; SVC THUR-MON, 1530-2400Z. FEE CHRGD OUTSIDE OF SVC HOURS. FEE PAYABLE ON SITE.
A110-1224 HR PPR FOR ACFT EQUIPPED WITH WX MODIFICATION OR GEOENGINEERING EQPT CTC ARPT OPS 863-834-4911.
A110-7TWY D, D1, & E1 UNLGTD.
A110-8PJE WITHIN 5 NM 18000 BLW SR-SS
A110-9INDEX C AVBL UPON REQ.
A30-05/23RWY 05/23 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A30-08/26RWY 08/26 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS. RSTRD TO GROUP 1 ACFT UNDER 1500 LBS MTOW, VFR DAYTIME ONLY, NO TGL; PPR - 863-834-4911.
A39-05/23PCR VALUE: 320/F/A/X/T
A39-10/28PCR VALUE: 460/F/A/X/T
A42-08_MARKRWY 8/26 MKD WITH PAVERS.
A81-APTPAPI RWY 05 & 23, 10 & 28 OPER CONT.
LAKELAND LINDER INTL (ICAO: KLAL, IATA: LAL) is a public airport located in LAKELAND, FL, US.
