KLAF
PURDUE UNIVERSITY
PublicPUB

2 miles SW of LAFAYETTE, IN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 24' 44"N 86° 56' 13"W
606' MSL
1606' MSL
01W
JET A, 100LL
TERRE HAUTE (HUF)
CHICAGO
CHICAGO (ZAU)
7/11/24-8/8/24
KLAF VFR
6:54 AM EDT
Clear
10sm
53°F
52°F
29.97"Hg
Calm
AO2 SLP144 T01170111
KLAF 191054Z 00000KT 10SM CLR 12/11 A2997 RMK AO2 SLP144 T01170111
Add Your Business

KLAF FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 119.6

ATIS

ATIS
 127.75

Ground

GND/P
 121.9

Tower

LCL/P
 119.6

FAA A/FD Pages

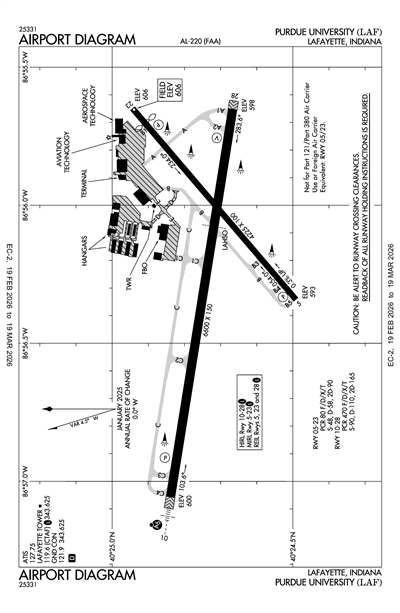

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KLAF
Thu, 9/19 1:20 AM EDT
Thu, 9/19 2:00 AM EDT - Fri, 9/20 2:00 AM EDT
VFR
2:00 AM EDT - 11:00 AM EDT
Scattered 25,000'
6sm
Calm
VFR
11:00 AM EDT - 2:00 AM EDT
Few 25,000'
6sm
VRB° 4kts
KLAF 190520Z 1906/2006 00000KT P6SM SCT250
   FM191500 VRB04KT P6SM FEW250
KLAF
Domestic
8/30/241553Z !LAF 08/068 LAF TWY B ELEVATED RWY GUARD LGT AT RWY 10/28 U/S 2408301553-2409302359
8/30/241528Z !LAF 08/067 LAF RWY 10 PAPI U/S 2408301528-2409302359EST
8/27/241927Z !LAF 08/064 LAF OBST BLDG LGT (ASN UNKNOWN) 402458N0865546W (0.1NM N APCH END RWY 23)
656FT (50FT AGL) U/S 2408271927-2409302159
8/20/241855Z !LAF 08/047 LAF RWY 05 RWY END ID LGT U/S 2408201855-2409302159
8/20/241716Z !LAF 08/045 LAF RWY 23 PAPI U/S 2408201716-2409302159EST
8/20/241715Z !LAF 08/044 LAF RWY 05 PAPI U/S 2408201715-2409302159EST
8/13/241100Z !LAF 08/035 LAF OBST CRANE (ASN UNKNOWN) 402324N0865621W (1.35NM S LAF)
UNKNOWN (270FT AGL) FLAGGED AND LGTD 2408131100-2502282059EST
7/5/241928Z !LAF 07/006 LAF TWY B3 RELOCATED SOUTH OF RWY 10/28 2407051928-PERM
7/5/241905Z !LAF 07/002 LAF TWY B2 CLSD 2407051905-PERM
6/26/241245Z !LAF 06/063 LAF OBST CRANE (ASN 2024-AGL-2230-OE) 402534N0865535W (1.0NM NNE LAF) 803FT (180FT AGL) FLAGGED AND LGTD 2406261245-2509272159EST
6/19/241939Z !LAF 06/045 LAF OBST TOWER LGT (ASR UNKNOWN) 402545.00N0865756.79W (2.4NM NW LAF) 697FT (130FT AGL) U/S 2406191939-2409192359
6/19/241938Z !LAF 06/044 LAF OBST TOWER LGT (ASR UNKNOWN) 402630.52N0865905.21W (1.5NM NW LAF) 689FT (140FT AGL) U/S 2406191938-2409192359
6/11/242006Z !LAF 06/019 LAF OBST TOWER LGT (ASR 1027173) 402324.00N0865153.00W (3.5NM ESE LAF) 1049.9FT (395.0FT AGL) U/S 2406112006-2412112359
2/20/241428Z !LAF 02/053 LAF OBST CRANE (ASN 2023-AGL-15372-OE) 402516N0865424W (1.5NM ENE LAF) 828FT (255FT AGL) FLAGGED AND LGTD 2402201428-2410312159EST
1/2/241339Z !LAF 01/002 LAF OBST CRANE (ASN 2023-AGL-22823-OE) 402535N0865545W (0.9NM NNE LAF) 757FT (139FT AGL) FLAGGED AND LGTD 2401021339-2410312159EST
FDC
9/16/241609Z !FDC 4/6178 LAF ODP PURDUE UNIVERSITY, LAFAYETTE, IN.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1A...
ADD TAKEOFF OBSTACLE NOTE: RWY 5, TEMPORARY CRANE 4089FT FROM DER, 358FT RIGHT OF CENTERLINE, 134FT AGL/754FT MSL (2024-AGL-5177-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2409161609-2411201609EST
12/7/231644Z !FDC 3/2502 LAF IAP PURDUE UNIVERSITY, LAFAYETTE, IN.
ILS OR LOC RWY 10, AMDT 11D...
RNAV (GPS) RWY 10, AMDT 1B...
RNAV (GPS) RWY 28, AMDT 1B...
VOR-A, AMDT 26C...
CIRCLING CAT A/B MDA 1200/HAA 594.
2312071644-2512071644EST
Yes
MON-FRI 0800-1700
PURDUE UNIVERSITY
1501 AVIATION DRIVE, TRML BLDG ROOM 201
WEST LAFAYETTE, IN 47907
Phone: (765) 496-6326
ADAM BAXMEYER
1501 AVIATION DRIVE, TRML BLDG ROOM 201
WEST LAFAYETTE, IN 47907
Phone: (765) 496-6850
TERRE HAUTE FSS (HUF)
Toll Free: 1-800-WX-BRIEF
LAF
--
WHEN ATCT CLSD ACTVT MALSR RWY 10; REIL RWY 5, 23 & 28; MIRL RWY 5/23; HIRL RWY 10/28 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
81
8
3
2
0
0
Major
Major
None
High & Low Pressure
Air Ambulance
Avionics
Charter Service
Aircraft Rental
Aircraft Sales

Runway 05/23

4225 ft. x 100 ft.
ASPH
Good
NONE
MED
17 /F/C/Y/T
48,000lbs
58,000lbs
90,000lbs
--
  Runway 05 Runway 23
True Heading 50°230°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR GOOD
Latitude 40° 24' 29"N 40° 24' 57"N
Longitude 86° 56' 20"W 86° 55' 39"W
Elevation 592' 606'
Threshold Crossing Height 38 ft. AGL 39 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 10/28

6600 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
51 /F/C/X/U
90,000lbs
110,000lbs
165,000lbs
--
  Runway 10 Runway 28
True Heading 99°279°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 40° 24' 50"N 40° 24' 40"N
Longitude 86° 57' 03"W 86° 55' 39"W
Elevation 600' 598'
Threshold Crossing Height 50 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L V4R
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No Yes
A110-5TRNG OPS & BIRDS INVOF ARPT.
A110-6SFC COND UNMNT 2200-0600 OR WKEND.
A110-7FOR CD IF UNA TO CTC ON FSS FREQ, CTC CHICAGO ARTCC AT 630-906-8921.
PURDUE UNIVERSITY (ICAO: KLAF, IATA: LAF) is a public airport located in LAFAYETTE, IN.
